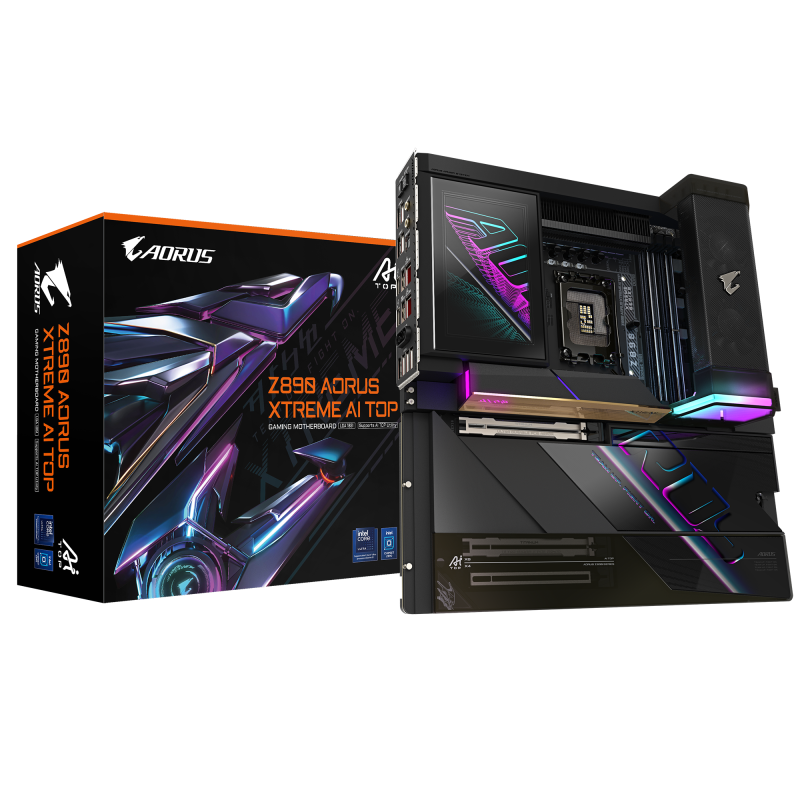

Name: Placa de bază Gigabyte Z890 AORUS XTREME AI TOP LGA1851 - A.W.P.S Store
Brand: GIGABYTE
SKU: Z890 A XTREME AI TOP
Price: 7457.50 RON
Availability: OutOfStock

Placa de bază Gigabyte Z890 AORUS XTREME AI TOP LGA1851

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza GIGABYTE Z890 AORUS XTREME AI TOP LGA 1851, 4x DDR5, 3x Intel Thnderbolt, 2x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s, E-ATX

Specificație: Placa de bază Gigabyte Z890 AORUS XTREME AI TOP LGA1851

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
USB3	4-8
Onboard-CPU	No
RAID support	Yes
Component for	PC
Thunderbolt ports quantity	2
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE200
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
HDCP	Yes
Screws included	Yes
VGA (D-Sub) ports quantity	0
HDMI ports quantity	0
Maximum resolution	7680 x 4320 pixels
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Model Chipset	Z890
Gaming	Da
Format:	E-ATX
Soclu Procesor	Socket 1851
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	ESS
Canale audio	2.0
Wireless	Da
Bluetooth	Nu
HDMI	Nu
Thunderbolt	Nu
Sloturi M.2	4
RJ-45 LAN	2
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
Number of water pump connectors	2
RGB LED pin header	Yes
Number of RGB LED pin headers	4
WiFi-AP antenna jack	2
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 11 x64
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Clear CMOS button	Yes
Compatible processor series	Intel Core Ultra (Series 2)
Number of storage drives supported	8
Thunderbolt headers	1
Motherboard chipset	Intel Z890
Number of M.2 (M) slots	4
PCI Express x16 (Gen 5.x) slots	2
Number of chassis fan connectors	3
4th M.2 highest PCI Express generation	4.0
Maximum internal memory supported by processor	256 GB
4th M.2 largest key size	22110
2nd M.2 largest key size	25110
Motherboard form factor	Extended ATX
Ethernet interface type	10 Gigabit Ethernet
LAN controller	Marvell AQtion AQC113C
USB 3.2 Gen 2x2 connectors	2
Supported memory clock speeds	9500 MHz
Audio output channels	2.0 channels
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	10
Number of temperature sensor headers	2
PCI-Ex1	0
PCI-Ex16	3
RAM-Slots	4
USB Type-C	N/A
MB-Socket	LGA1851
MB-Format	EATX
Number of noise detection headers	1
Audio Chip	ESS ES9280AC + ESS ES9080
Microphone in	Yes
Headphone outputs	1
Batteries included	Yes
Bluetooth version	5.4
Depth	305 mm
Ethernet LAN (RJ-45) ports	2
Height	35 mm
Country of origin	Taiwan
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Products per shipping (inner) case	1 pc(s)
Package width	386 mm
Package depth	370 mm
Package height	140 mm
Package weight	6.7 kg
Width	304.8 mm
Weight	5.03 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
