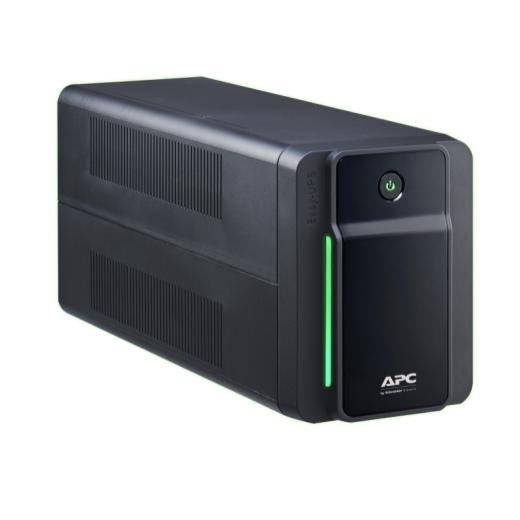

APC Easy UPS BVX 700VA, 230V, AVR,IEC Sockets

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

APC Easy UPS BVX 700VA, 230V, AVR, IEC Sockets

Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

Includes: User manual

Output power capacity

360 Watts / 700VA

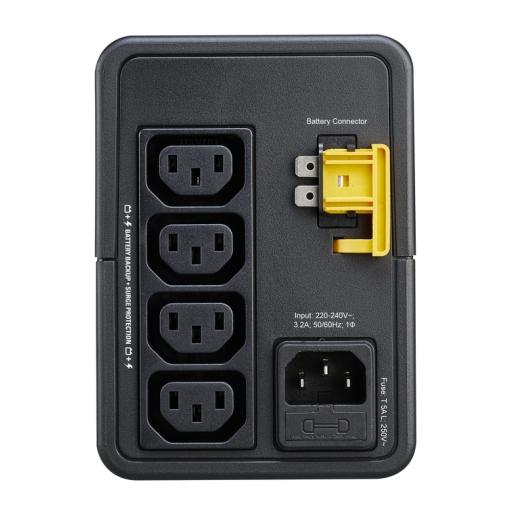

Output Connections

(4) IEC 320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

IEC 60320 C14

Cord Length

1.2meters

Max Configurable Power (Watts)

360 Watts / 700VA

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6 ms typical : 10 ms maximum

Specificație: APC Easy UPS BVX 700VA, 230V, AVR,IEC Sockets

Capacitate putere UPS	360W
Operating altitude	0 – 3000 m
Response time	6 ms
Surge protection	Yes
Audible alarm(s)	Yes
Tip UPS:	Line Interactive
Capacitate Rack:	4U
Ecran LCD:	Nu
Port USB	Nu
UPS topology	Line-Interactive
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Output frequency	50/60 Hz
AC outlet types	C13 coupler
Power plug	C14 coupler
Waveform	Sine
Cold start	Yes
Automatic Voltage Regulation (AVR)	Yes
Output voltage regulation	10%
Battery capacity	7 Ah
Output power	360 W
Output operation voltage (max)	230 V
Form factor	Compact
AC outlets quantity	4 AC outlet(s)
Output operation voltage (min)	230 V
Output frequency regulation	0.5 Hz
Surge energy rating	273 J
Audible alarm modes	Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm
Non-operating altitude	0 – 3000 m
Output power capacity	0.7 kVA
Input power factor	0.51
Operating temperature (T-T)	0 – 40 °C
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	12 V
Operating relative humidity (H-H)	0 – 95%
LED indicators	Yes
Harmonized System (HS) code	85078000
Weight	4.5 kg
Width	31 mm
Package width	222 mm
Package weight	4.5 kg
Cables included	Input power cable
Battery recharge time	8 h
Storage temperature (T-T)	-15 – 40 °C
Noise level	40 dB
Battery life (max)	2 year(s)
International Protection (IP) code	IP20
Certification	CB, CE, EN/IEC 62040-1, EN/IEC 62040-2
Package depth	346 mm
Depth	138 mm
Height	98 mm
Package height	142 mm
Producator	APC
Garantie	24
