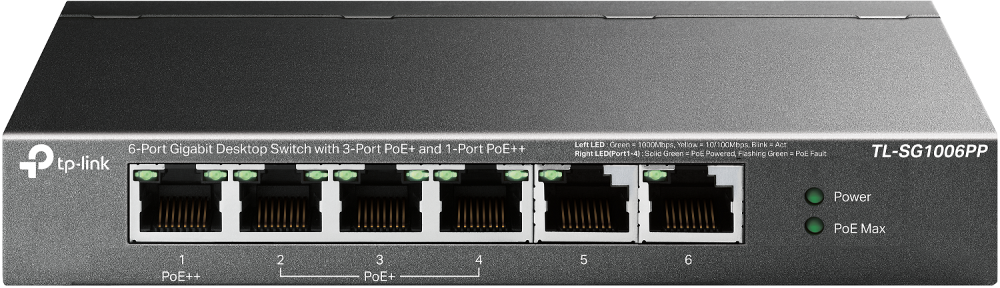

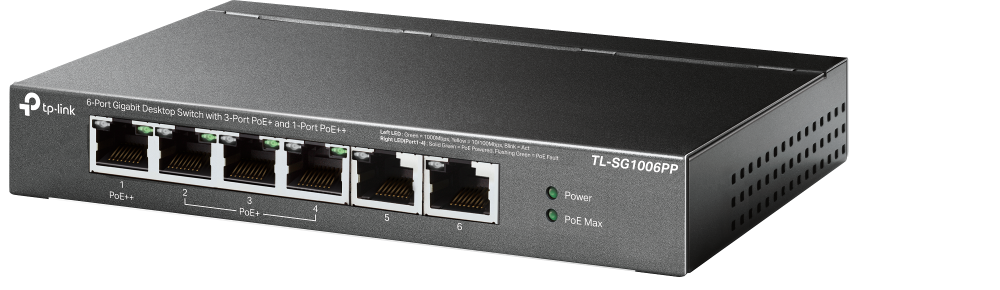

"6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

„6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ PORT: 1× Gigabit PoE++ Port, 3× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports SPEC: 802.3af/at/bt type3, 64 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting for Port1-2, PoE Auto Recovery for Port1-4, Plug and Play”

Specificație: "6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

Stackable	Yes
LAN-Port-Type	Gigabit
Storage relative humidity (H-H)	5 – 90%
Power supply included	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Yes
Rack mounting	Yes
Quality of Service (QoS) support	Yes
Auto MDI/MDI-X	Yes
Flow control support	Yes
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation	Yes
Installed SFP modules quantity	0
10G support	No
Switch type	Unmanaged
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Fanless	Yes
Power over Ethernet (PoE) ports quantity	4
MAC address auto-aging supported	Yes
Store-and-forward	Yes
MAC address table	4000 entries
Total Power over Ethernet (PoE) budget	64 W
MAC address auto-learning supported	Yes
DC input voltage	53.5 V
Input current	1.31 A
Basic switching RJ-45 Ethernet ports quantity	6
Switching capacity	12 Gbit/s
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Forwarding rate	8.928 Mpps
Heat dissipation	16.2 BTU/h
Porturi RJ 45	5-10
Viteza Transfer	Gigabit
Porturi SFP	N/A
Montare in Rack	Nu
Management	Nu
PoE	Da
Operating temperature (T-T)	0 – 40 °C
Quick start guide	Yes
Operating relative humidity (H-H)	10 – 90%
Storage temperature (T-T)	-40 – 70 °C
Width	158 mm
Package type	Box
Height	25 mm
Depth	101 mm
Certification	FCC, CE, RoHS
Power source	DC/PoE
Power consumption (typical)	4.75 W
Power consumption (max)	71.46 W
Producator	TP-LINK
Garantie	60
