Name: Sursa MSI MPG A1000G PCIE5 80 PLUS GOLD - A.W.P.S Store
Brand: MSI
SKU: MPG A1000G PCIE5
Price: 1257.65 RON
Availability: OutOfStock

Sursa MSI MPG A1000G PCIE5 80 PLUS GOLD

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

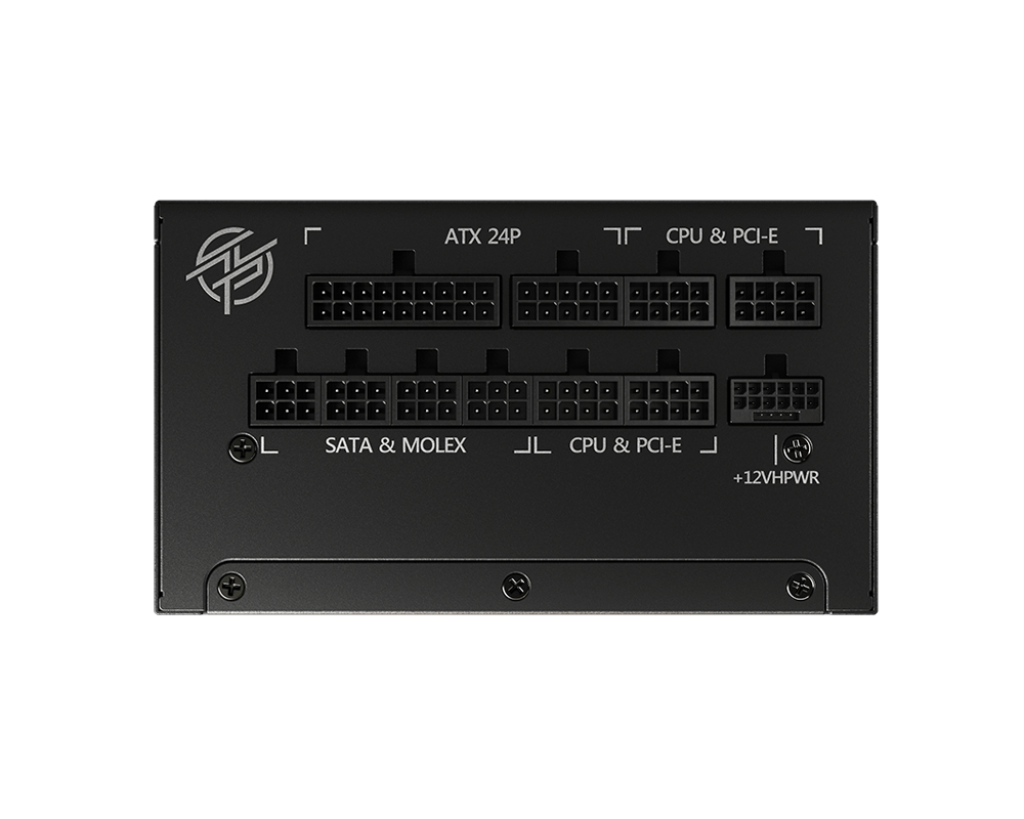

Sursa MSI MPG A1000G PCIE5 80+ GOLD Efficiency Rating 80 PLUS Gold (up to 90%) Modular Yes (fully modular) Fan Size 135 mm Fan Bearing Fluid Dynamic Bearing Dimensions (DxWxH) 150 x 150 x 86 mm PFC Type Active PFC Input Voltage Range 100~240 VAC Power Watt 1000W Power Excursion 2000W (*up to 200% of the PSU’s rated power for 100μs) Input Frequency Range 50~60 Hz Protection OCP / OVP / OPP / OTP / SCP / UVP ATX (24 pin) 1 EPS (4+4 pin) 2 PCI-E 5.0 (16 pin) 1 (600W) PCI-E (6+2 pin) 6 SATA (15 pin) 12 MOLEX (4 pin) 4 FDD (4 pin) 1

Specificație: Sursa MSI MPG A1000G PCIE5 80 PLUS GOLD

PSU Type	ATX
Number of fans	1 fan(s)
Illumination	No
Peripheral (Molex) power connectors (4-pin)	4
Purpose	PC/Server
Conectivitate	Full – Modular
Iluminare RGB	Nu
Certificare 80 Plus	80 PLUS Gold
Motherboard power connector	20+4 pin ATX
EPS power connector (4+4 pin)	Yes
Power supply unit (PSU) form factor	ATX
Combined power (+5Vsb)	15 W
Max output current (+5Vsb)	3 A
Motherboard power cable length	60 cm
Cabling type	Fully-Modular
ATX version	3.0
Power Factor Correction (PFC) type	Active
Floppy disk drive connector	Yes
80 PLUS certification	80 PLUS Gold
Bearing technology	FDB
Efficiency	90%
Number of SATA power connectors	12
PCI Express power cable length	75 cm
EPS power connector (8-pin)	No
Fan diameter	13.5 cm
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
PCI Express power connectors (6+2 pin)	6
Max output current (+3.3V)	22 A
Max output current (+5V)	22 A
Total power	1000 W
Combined power (+12V)	1000 W
Max output current (+12V)	83.5 A
SATA power cable length	500,650,700,850 mm
Peripheral (Molex) power cable length	1100,500,650,700,850 mm
EPS cable length	70 cm
PSU-Power	1000 W
PFC	Active
Width	150 mm
Depth	150 mm
Height	86 mm
Producator	MSI
Garantie	120
