| PSU Type |
ATX
|
| Number of fans |
1 fan(s)
|
| Purpose |
PC
|
| Fan diameter |
12 cm
|
| Peripheral (Molex) power connectors (4-pin) |
3
|
| Mean time between failures (MTBF) |
100000 h
|
| Conectivitate |
Full – Modular
|
| Iluminare RGB |
Nu
|
| Certificare 80 Plus |
80 PLUS Gold
|
| Motherboard power connector |
20+4 pin ATX
|
| EPS power connector (4+4 pin) |
Yes
|
| CPU power connector (4+4 pin) |
Yes
|
| CPU power cable length |
60 cm
|
| ATX power connector (20+4 pin) |
Yes
|
| Fan location |
Top
|
| Combined power (+5Vsb) |
15 W
|
| Max output current (+3.3V) |
25 A
|
| Max output current (+5V) |
25 A
|
| Max output current (+5Vsb) |
3 A
|
| Number of SATA power connectors |
8
|
| Motherboard power cable length |
61 cm
|
| Cabling type |
Fully-Modular
|
| Power Factor Correction (PFC) type |
Active
|
| Floppy drive power connector |
1
|
| 80 PLUS certification |
80 PLUS Gold
|
| Efficiency |
90%
|
| PCI Express power cable length |
75 cm
|
| Hold time |
16 ms
|
| ATX version |
2.31
|
| Bearing technology |
HDB
|
| Power protection features |
Over current, Over power, Over voltage, Short circuit, Under voltage
|
| PCI Express power connectors (6+2 pin) |
6
|
| Total power |
1000 W
|
| Combined power (+12V) |
999.6 W
|
| Max output current (+12V) |
83.3 A
|
| Combined power (+3.3V) |
125 W
|
| Combined power (+5V) |
125 W
|
| Input current |
6.5 – 15 A
|
| SATA power cable length |
1050,600,750,900 mm
|
| Peripheral (Molex) power cable length |
500,620,740 mm
|
| PSU-Power |
1000 W
|
| PFC |
Active
|
| Width |
140 mm
|
| Harmonized System (HS) code |
84733020
|
| Depth |
150 mm
|

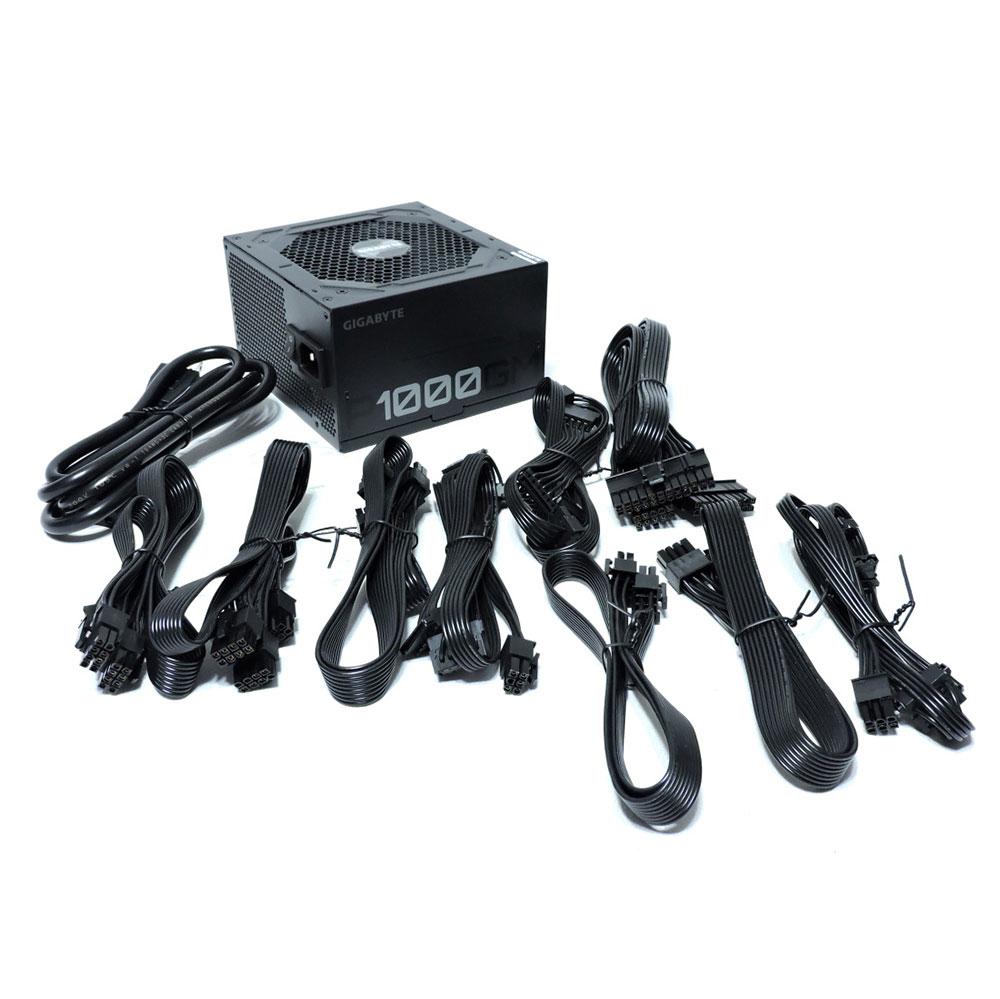

| Cables included |
CPU, PCIe, Peripheral (Molex), SATA
|
| On/off switch |
Yes
|
| Height |
8.6 mm
|
| Producator |
GIGABYTE
|
| Garantie |
36
|
|
