Name: Sursa DEEPCOOL PN750M 750W 80 PLUS Gold - A.W.P.S Store
Brand: DEEPCOOL
SKU: R-PN750M-FC0B-EU
Price: 570.14 RON
Availability: OutOfStock

Sursa DEEPCOOL PN750M 750W 80 PLUS Gold

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Sursa DEEPCOOL PN750M 750W 80 PLUS Gold, Active PFC+ Full Bridge SRC LLC+ DC to DC, Eficienta 90% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Specificație: Sursa DEEPCOOL PN750M 750W 80 PLUS Gold

PSU Type	ATX
Number of fans	1 fan(s)
Purpose	PC
Fan diameter	12 cm
Mean time between failures (MTBF)	100000 h

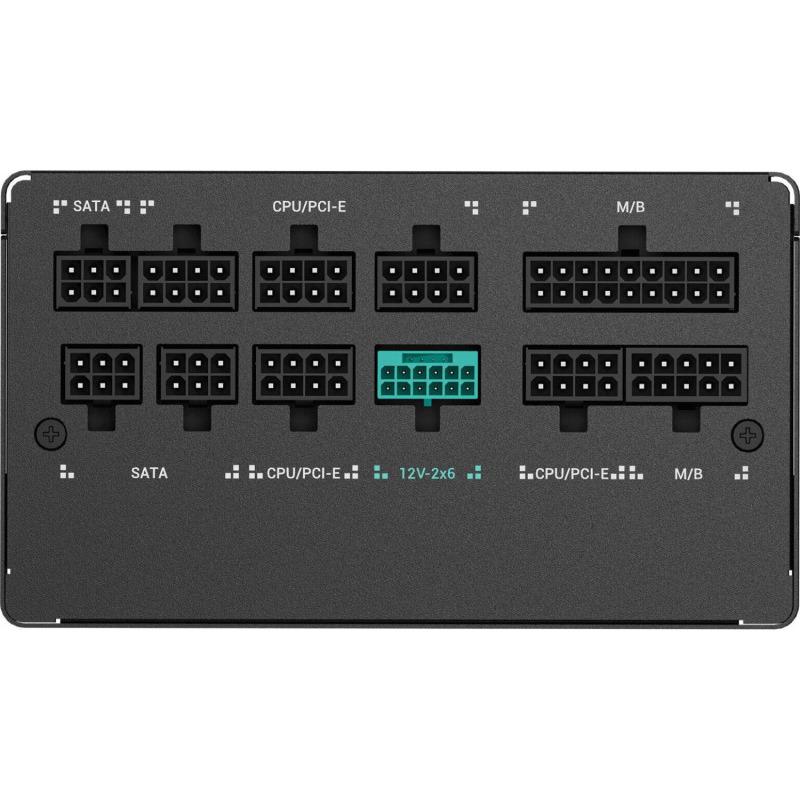

Conectivitate	Full – Modular
Iluminare RGB	Nu
Certificare 80 Plus	80 PLUS Gold
Modular	Yes
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	55 cm
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
Power supply unit (PSU) form factor	ATX
Fan location	Top
Total power	750 W
Combined power (+12V)	750 W
Combined power (+5Vsb)	15 W
Max output current (+12V)	62.5 A
Max output current (+5Vsb)	3 A
Number of SATA power connectors	8
Cabling type	Fully-Modular
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
80 PLUS certification	80 PLUS Gold
Bearing technology	FDB
Cable tie(s) included	Yes
Efficiency	90%
PCI Express power connectors (6+2 pin)	1
Combined power (+5V)	110 W
Peripheral (Molex) power connectors (4-pin)	2
Input current	10 – 5 A
Hold time	16 ms
CPU power cable length	70 cm
SATA power cable length	550,750,450,650 mm
Peripheral (Molex) power cable length	450 mm
ATX version	3.1
Sustainability certificates	Triman
PSU-Power	750 W
PFC	Active
Cables included	AC
Width	150 mm
On/off switch	Yes
Warranty period	10 year(s)
Depth	140 mm
Height	8.6 mm
Compliance certificates	CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE
Producator	DEEPCOOL
Garantie	120
