Name: Placa de bază MSI PRO Z790-A MAX WIFI LGA1700 - A.W.P.S Store
Brand: MSI
SKU: PRO Z790-A MAX WIFI
Price: 1335.24 RON
Availability: OutOfStock

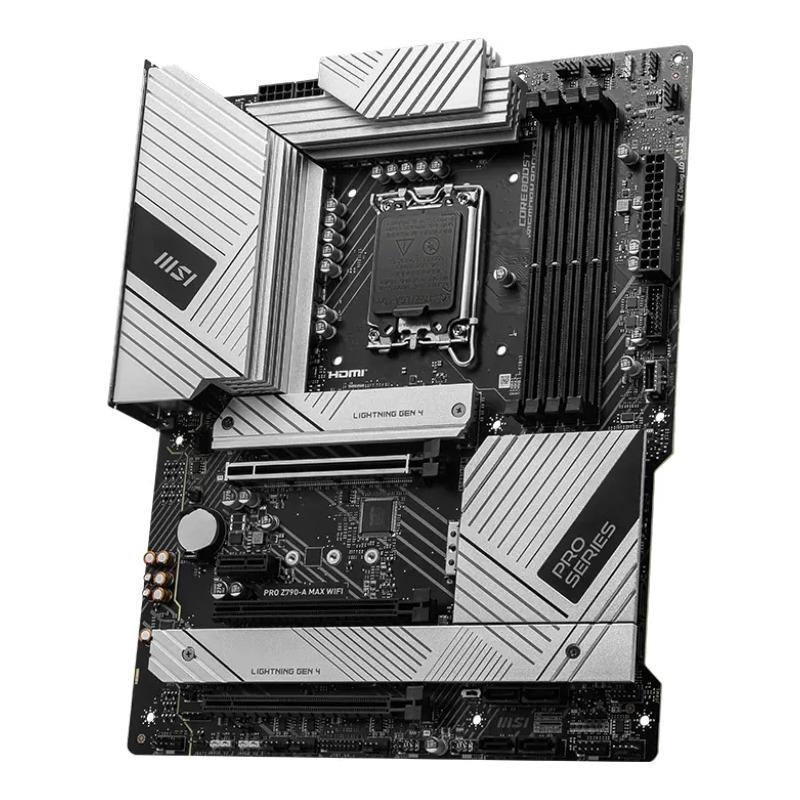

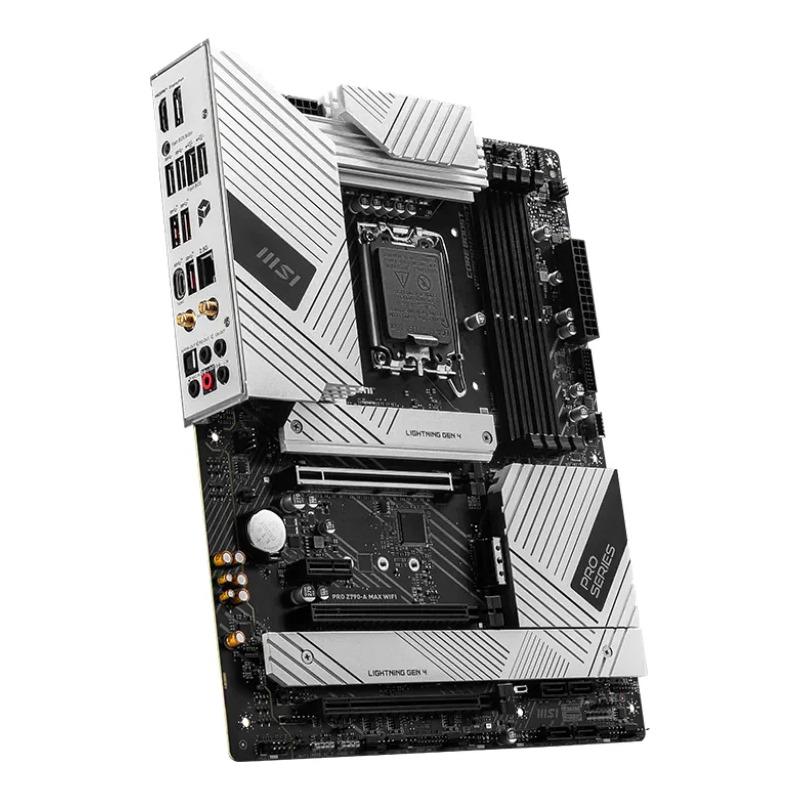

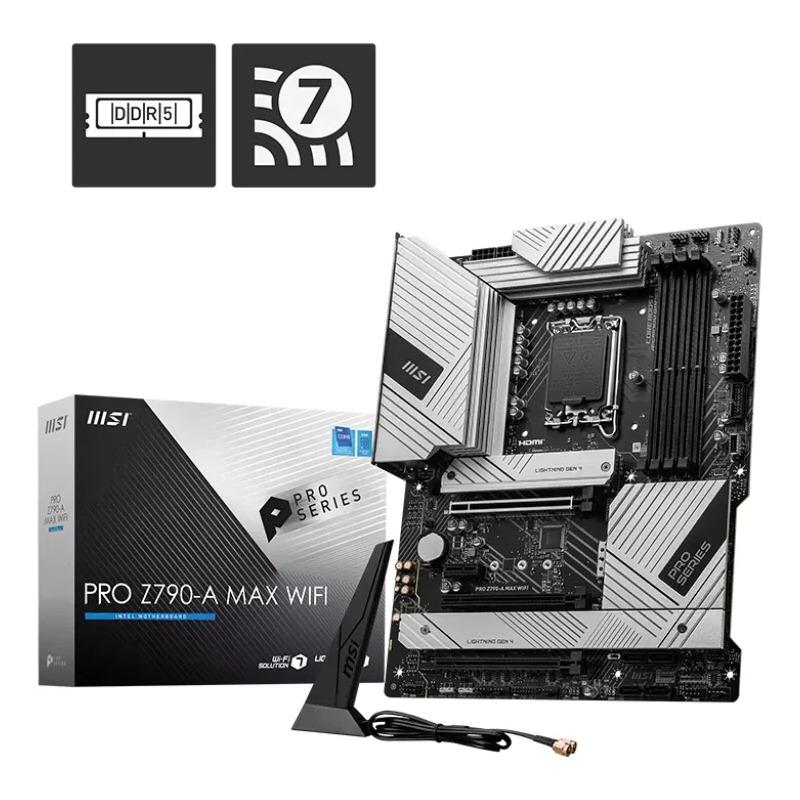

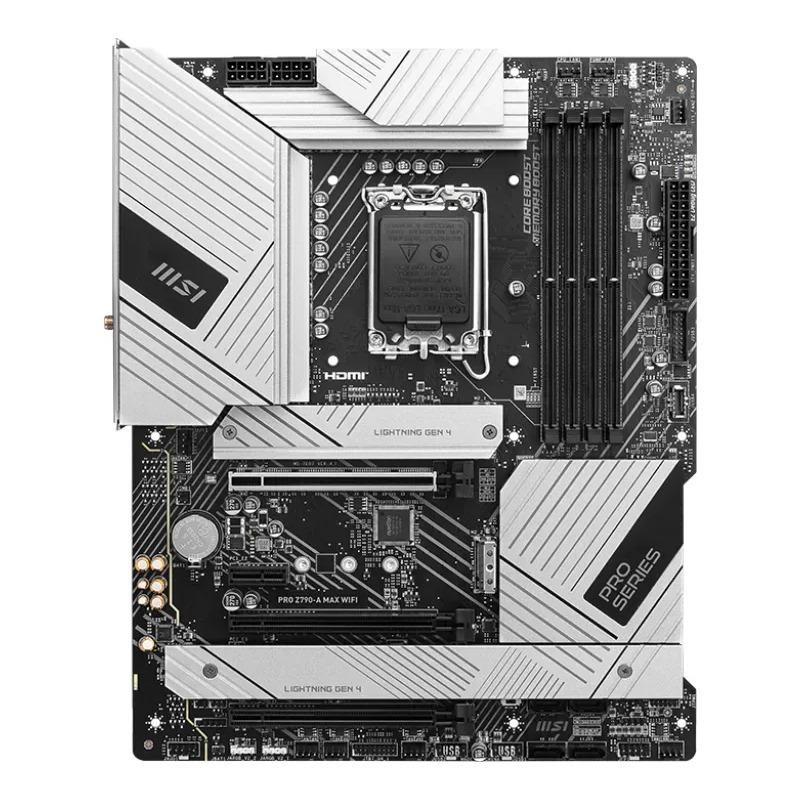

Placa de bază MSI PRO Z790-A MAX WIFI LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza MSI PRO Z790-A MAX WIFI, 4xDDR5, 1xHDMI 1xDP, 3xPCIE x16 1xPCIE x1, 4xM.2, 6xSATA 6gb/s

Specificație: Placa de bază MSI PRO Z790-A MAX WIFI LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
USB3	4-8
PCI-Ex1	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
Maximum internal memory	128 GB
USB 2.0 ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Audio output channels	7.1 channels
On-board graphics card	No
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
PCI Express x1 slots	1
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Supported storage drive interfaces	M.2, PCI Express
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	Z790
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	4
RJ-45 LAN	1
Number of memory slots	4
Unbuffered memory	Yes
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
CPU fan connector	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
mSATA ports quantity	0
Supported memory types	DDR5-SDRAM
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Motherboard chipset family	Intel
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
ECC сompatibility	Non-ECC
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of M.2 (M) slots	4
Motherboard chipset	Intel Z790
Number of SATA III connectors	6
Chassis intrusion connector	Yes
PCI Express x16 slots	3
USB 2.0 connectors	4
System Management BIOS (SMBIOS) version	3.5
Number of storage drives supported	10
Compatible processor series	Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Desktop Management Interface (DMI) version	6.4
MB-Format	ATX
MB-Socket	1700
PCI-Ex16	3
RAM-Slots	4
Bluetooth version	5.3
Cables included	SATA
Width	304.8 mm
Product colour	Aluminium, Black
Depth	243.8 mm
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Producator	MSI
Garantie	36
