Name: Placa de Bază GIGABYTE Z790 Eagle Ax LGA1700
Brand: GIGABYTE
SKU: Z790 EAGLE AX
Price: 1005.66 RON
Availability: InStock

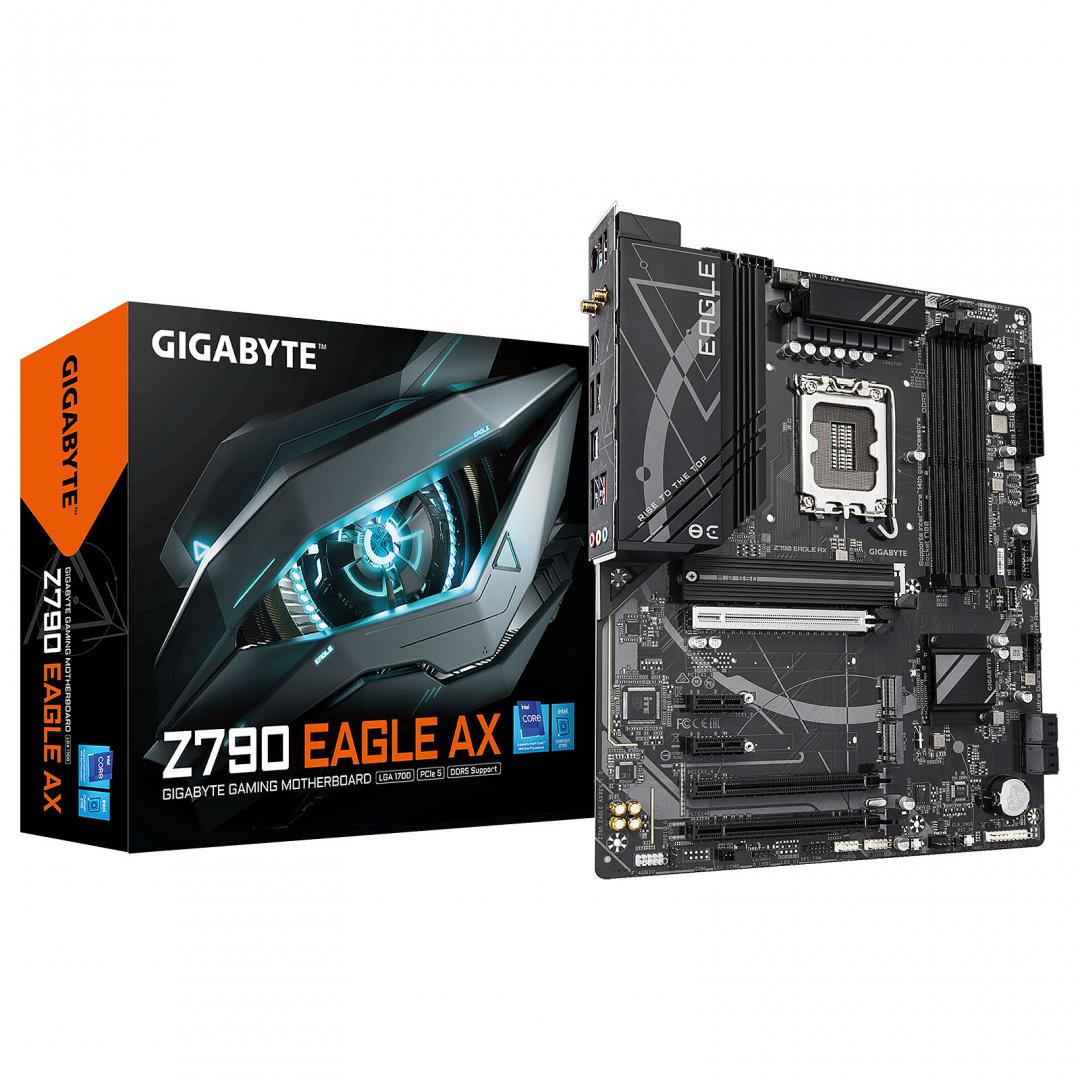

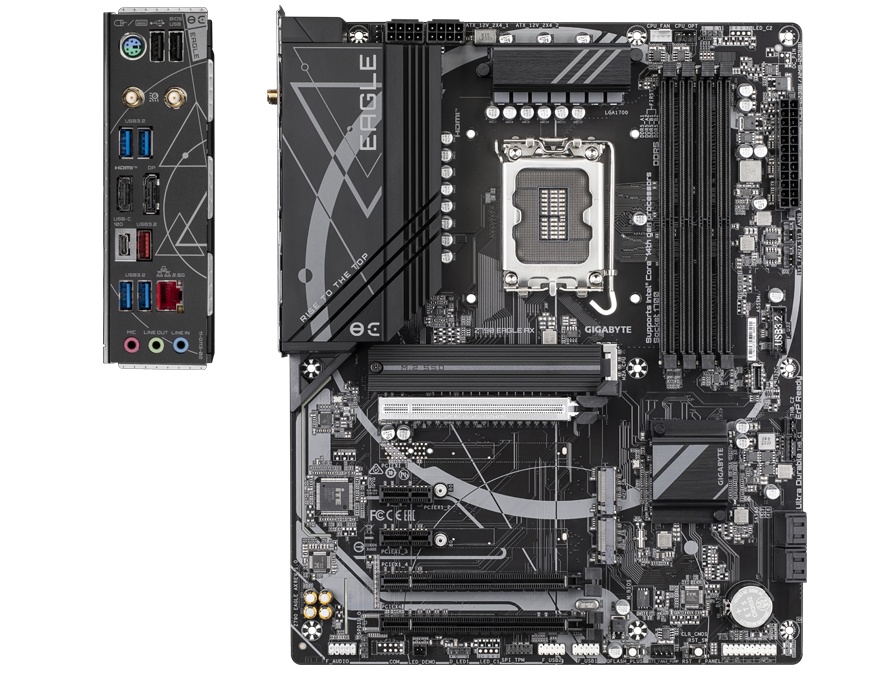

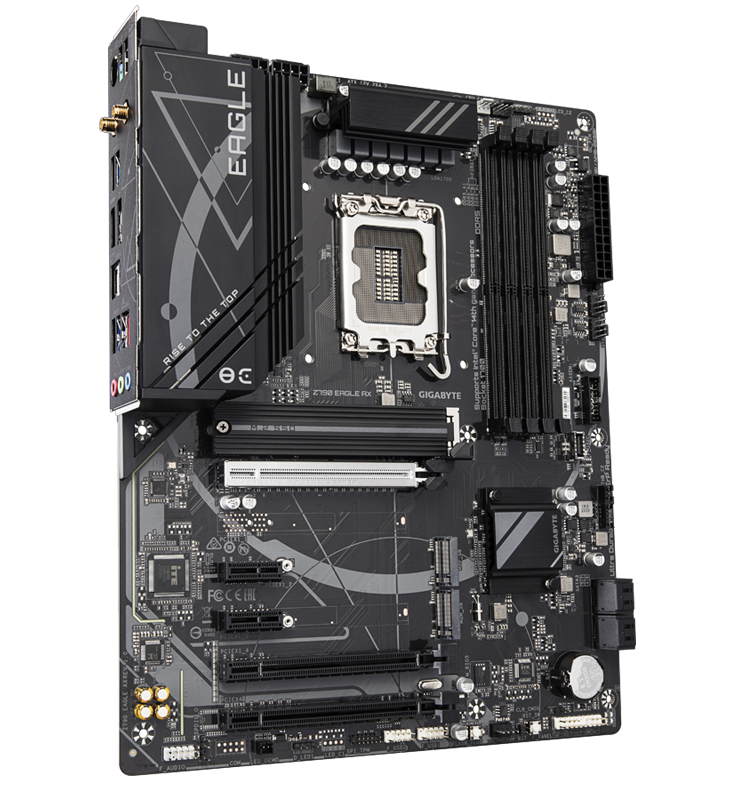

Placa de Bază GIGABYTE Z790 Eagle Ax LGA1700

Placa de baza GIGABYTE Z790 EAGLE AX LGA1700, 4x DDR5, 1x HDMI 1x DP, 3x PCIE x16 2x PCIE x1, 3x M.2, 4x SATA 6GB/s, ATX

Specificație: Placa de Bază GIGABYTE Z790 Eagle Ax LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
USB3	4-8
Onboard-CPU	No
RAID support	Yes
Component for	PC
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Processor manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 2.0 ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
PCI Express x16 (Gen 5.x) slots	1
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
On-board graphics card	No
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
Maximum internal memory	192 GB
HDCP	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	Z790
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
mSATA ports quantity	0
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Number of storage drives supported	7
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Number of M.2 (M) slots	3
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Processor socket	LGA 1700
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	192 GB
Maximum resolution	4096 x 2304 pixels
Discrete graphics support	Yes
Total number of SATA connectors	4
Number of EATX power connectors	2
Thunderbolt headers	2
12V power connector	Yes
Motherboard chipset	Intel Z790 Express
Clear CMOS button	Yes
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory clock speeds	4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
MB-Format	ATX
MB-Socket	1700
PCI-Ex16	3
RAM-Slots	4
PCI-Ex1	2
Microphone in	Yes
Headphone outputs	1
Bluetooth version	5.3
Height	35 mm
Cables included	SATA
Width	305 mm
Depth	244 mm
Country of origin	China
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Product colour	Brown
Package weight	1.81 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
