Name: Placa de Bază GIGABYTE H610M S2H V2 LGA1700
Brand: GIGABYTE
SKU: H610M S2H V2
Price: 380.06 RON
Availability: InStock

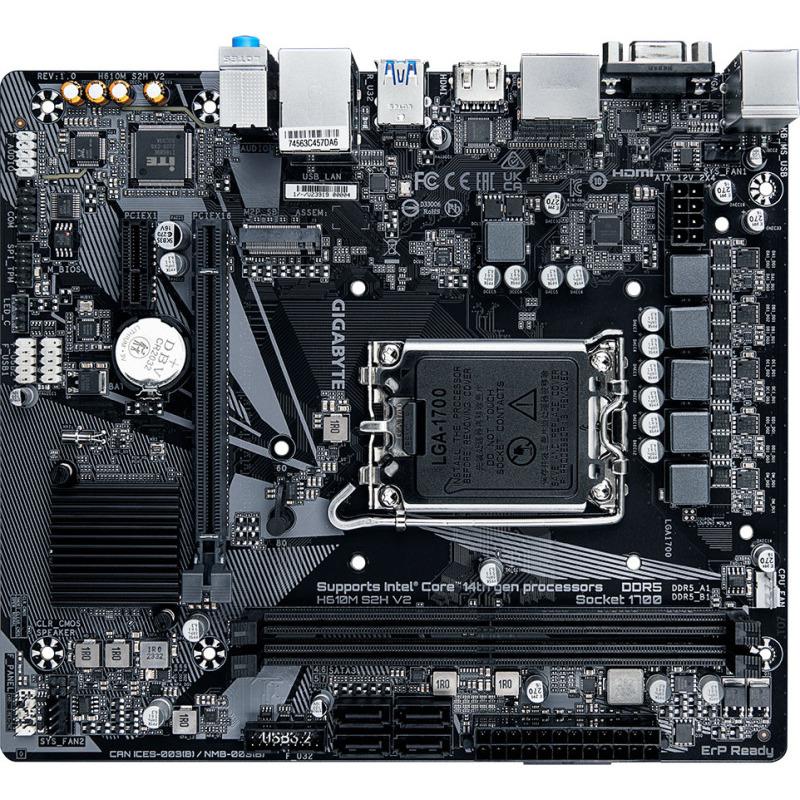

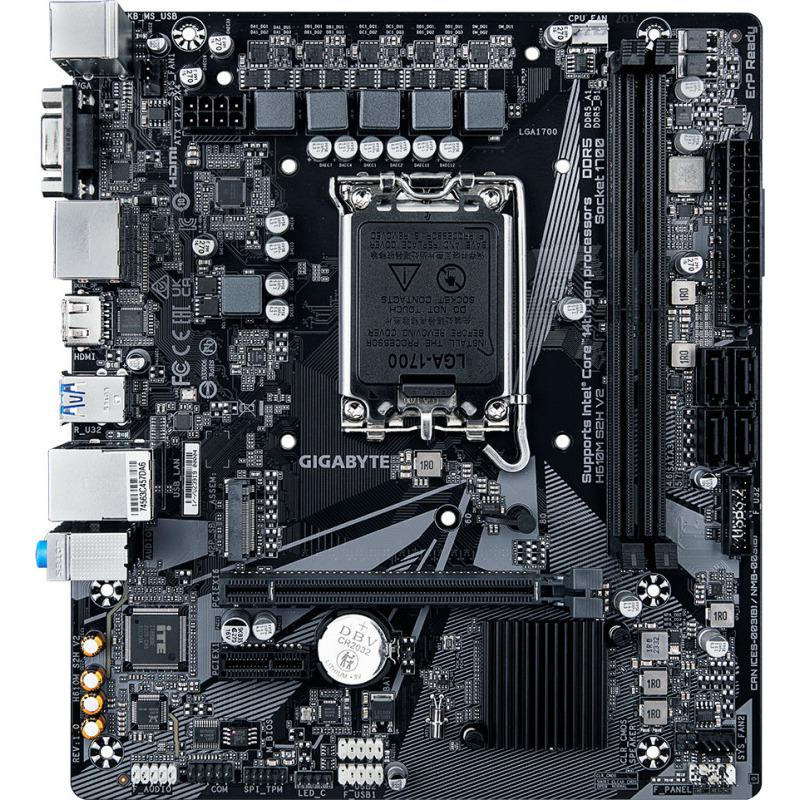

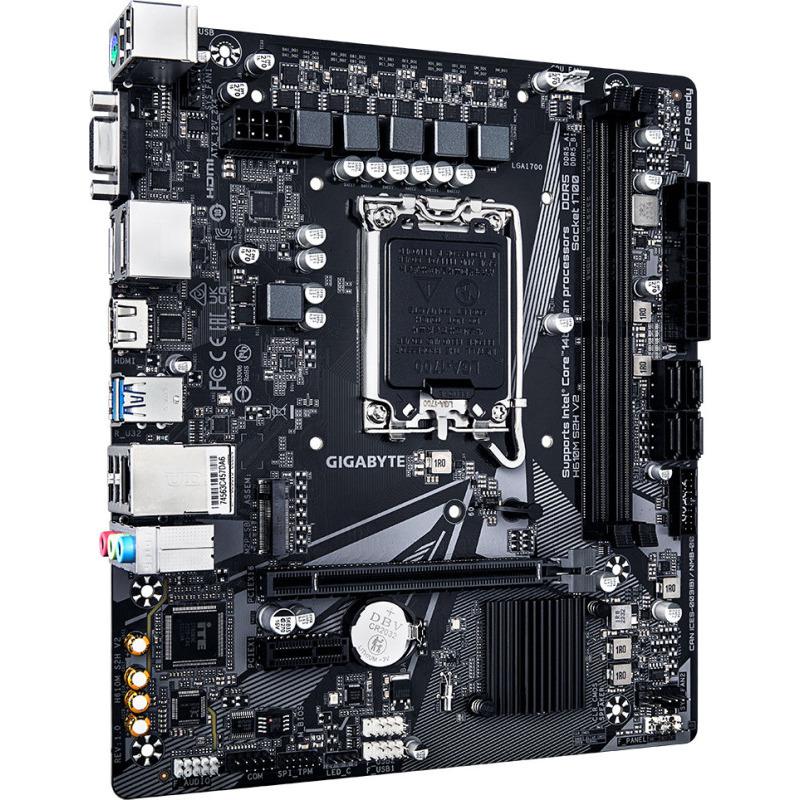

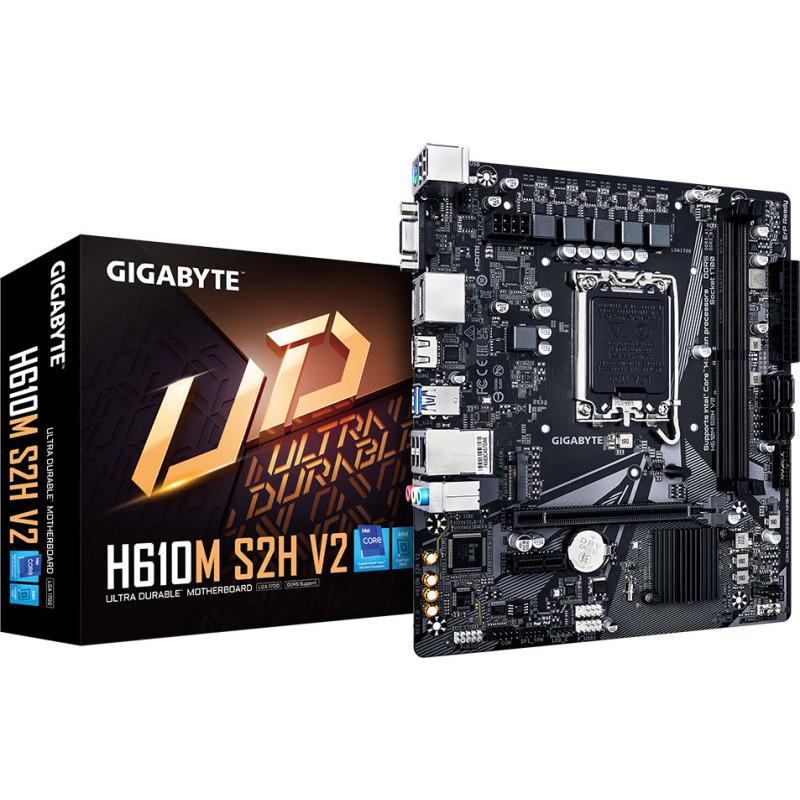

Placa de Bază GIGABYTE H610M S2H V2 LGA1700

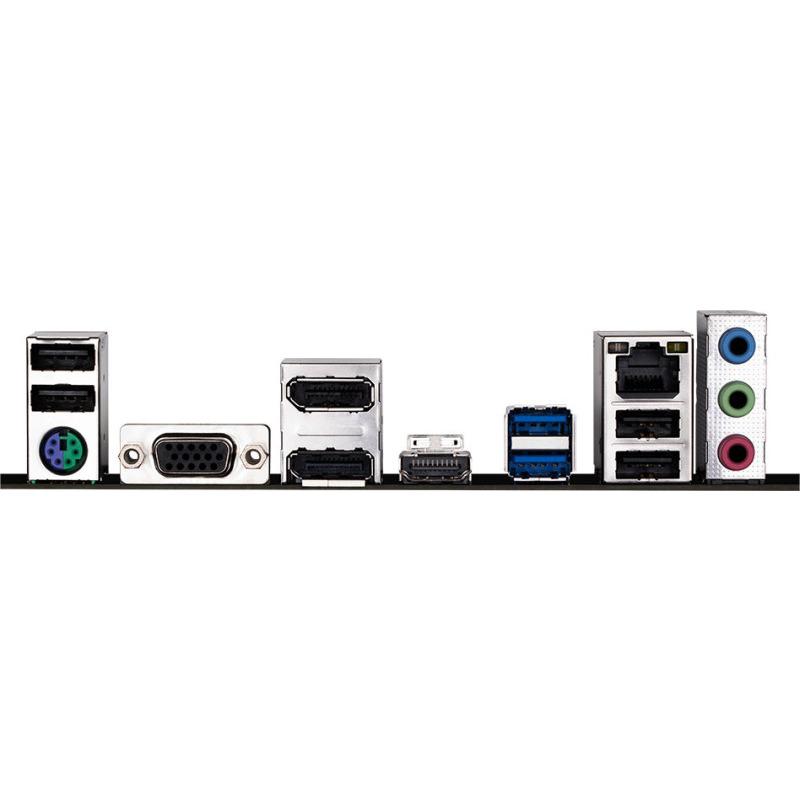

Placa de baza GIGABYTE H610M S2H V2 LGA1700 2x DDR5, 1x PCIE x16 1x PCIE x1, 1x M.2, 1x D-sub 1x HDMI 2x DP, 4x SATA 6GB/s, mATX

Specificație: Placa de Bază GIGABYTE H610M S2H V2 LGA1700

Serial-or-Paralel	No/No
Wi-FI	No
Onboard-CPU	No
Component for	PC
Cooling type	Active
Number of storage drives supported	1
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
On-board graphics card	Yes
Ethernet LAN	Yes
HDMI ports quantity	1
Maximum internal memory	96 GB
Graphics card family	Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 slots	1
Audio Chip	Realtek ALC897
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	1
VGA (D-Sub) ports quantity	1
PCI Express x1 slots	1
HDCP	Yes
DVI-D ports quantity	1
DisplayPorts quantity	1
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	H610
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	96 GB
Tip slot interfata grafica	PCIe 3.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard chipset family	Intel
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
Maximum resolution	4096 x 2304 pixels
12V power connector	Yes
Clear CMOS button	Yes
Number of COM connectors	1
BIOS memory size	128 Mbit
Serial port headers	1
Supported memory clock speeds	5600 MHz
Graphics card	HD Graphics
Motherboard chipset	Intel H610 Express
Maximum internal memory supported by processor	96 GB
Supported storage drive interfaces	M.2, SATA
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
On-board graphics card model	Intel® HD Graphics
PC health monitoring	Fan, LED, Temperature, Voltage, Water cooling
Supported DIMM module capacities	8GB, 16GB
Microphone in	Yes
Headphone outputs	1
Depth	215 mm
Height	35 mm
Width	230 mm
Cables included	SATA
Country of origin	China
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	690 g
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
