- 23%

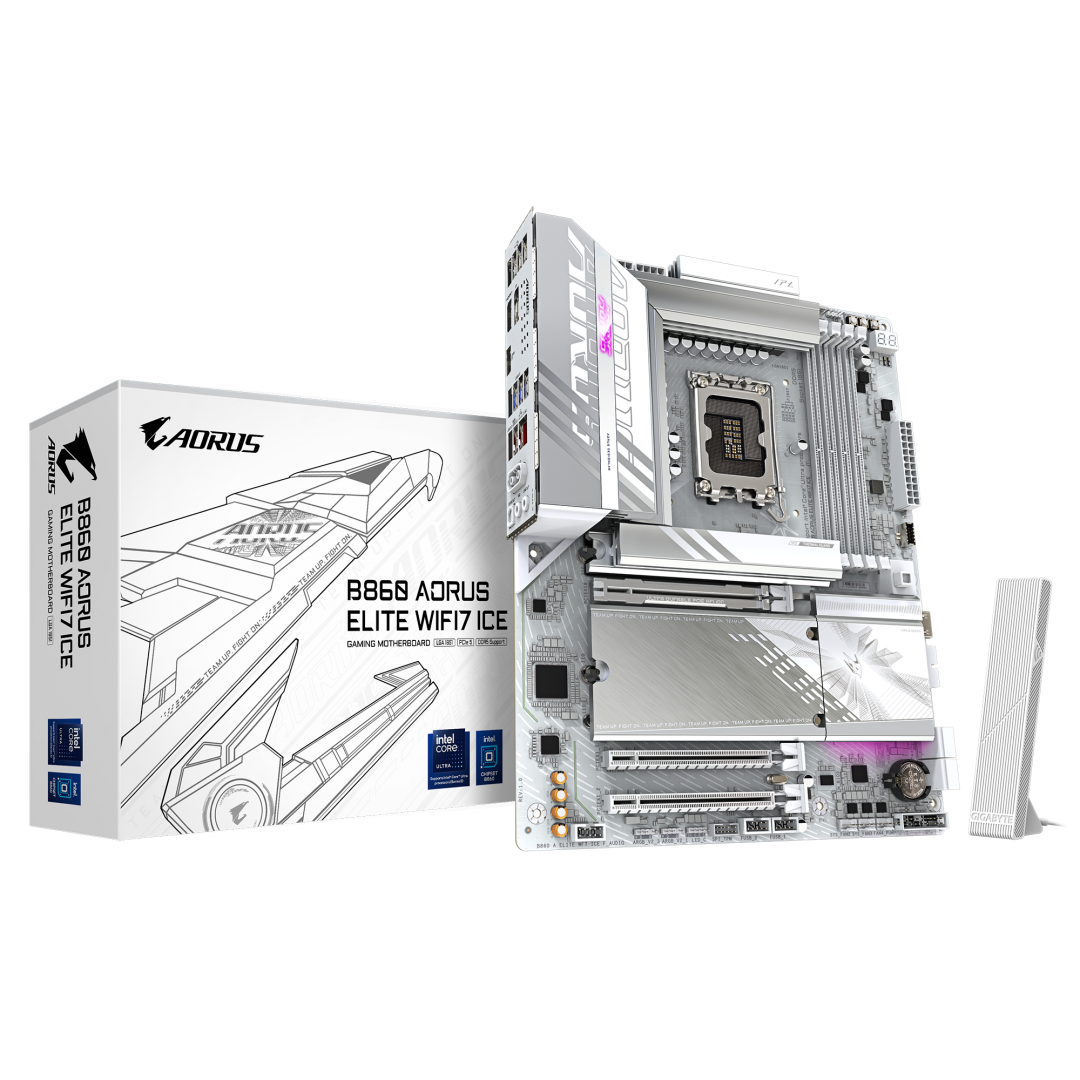

Placa de Bază GIGABYTE B860 AORUS Elite WIFI7 Ice LGA1851

0

Prețul inițial a fost: 1.753,67 lei.Prețul curent este: 1.347,20 lei.

4 în stoc

SKU: B860 A ELITE WF7 ICE Categorie

Placa de bază GIGABYTE B860 AORUS Elite WIFI7 Ice LGA1851 este o soluție ATX echilibrată pentru sisteme PC moderne, potrivită atât pentru utilizare zilnică eficientă, cât și pentru scenarii comerciale sau personale. Compatibilă cu procesoare Intel pe socket LGA1851 și memorie DDR5, oferă o bază solidă pentru configurații orientate spre performanță și stabilitate.

Cu suport pentru 4 module DDR5 în dual-channel și multiple opțiuni de stocare, această placă de bază GIGABYTE B860 asigură viteză bună de răspuns în aplicații solicitante. Conectivitatea HDMI 2.1 și DisplayPort permite randare grafică eficientă, iar WiFi integrat și Ethernet LAN oferă flexibilitate în rețea. Sloturile PCIe x16 și cele 3 M.2 susțin extinderea sistemului în funcție de nevoi, inclusiv configurări RAID pentru organizarea datelor.

  • Socket LGA1851, compatibil Intel – bază stabilă pentru procesoare moderne și performanță fluidă.
  • 4x DDR5, dual-channel – viteză și eficiență în multitasking și aplicații intensive.
  • 3x M.2 + 4x SATA 6Gb/s, suport RAID – opțiuni variate pentru stocare rapidă și organizată.
  • HDMI 2.1 + DisplayPort + Front HDMI – conectare flexibilă pentru conținut vizual clar.
  • WiFi integrat + Ethernet LAN – conexiuni stabile pentru lucru sau divertisment.

Alege configurația potrivită pentru obiectivele tale de utilizare și eficiență.

Ideal pentru: utilizare zilnica eficienta.

Specificație: Placa de Bază GIGABYTE B860 AORUS Elite WIFI7 Ice LGA1851

PCI

0

Serial-or-Paralel

No/No

Video-Connection

HDMI/DP

Wi-FI

Yes

Onboard-CPU

No

RAID support

Yes

Component for

PC

Memory channels

Dual-channel

Processor manufacturer

Intel

Ethernet LAN

Yes

HDMI ports quantity

1

HDMI version

2.1

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Audio output channels

7.1 channels

Line-in

Yes

PCI Express x16 (Gen 5.x) slots

1

Audio Chip

Realtek ALC897

Supported storage drive types

HDD & SSD

S/PDIF out port

Yes

USB4 Gen 2x2 ports quantity

1

PCI Express x16 (Gen 4.x) slots

2

HDCP

Yes

Screws included

Yes

DisplayPort version

2.1

Digital audio optical out

1

DisplayPorts quantity

1

VGA (D-Sub) ports quantity

0

Parallel processing technology support

Not supported

DVI-D ports quantity

0

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

Model Chipset

B860

Gaming

Da

Format:

ATX

Soclu Procesor

Socket 1851

Tip Memorie

DDR5

Numar sloturi memorie

4

Memorie maxima

256 GB

Tip slot interfata grafica

N/A

Chipset audio integrat

Realtek

Canale audio

7.1

Wireless

Da

Bluetooth

Da

USB Type-C

Da

HDMI

Da

Thunderbolt

Nu

Sloturi M.2

3

RJ-45 LAN

1

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)

Supported processor sockets

LGA 1851

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

9200 MHz

Maximum internal memory per slot

64 GB

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

WLAN controller model

Realtek RTL8922AE

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 11 x64

Number of M.2 (M) slots

3

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Antenna included

Yes

Headphone outputs

1

Bluetooth version

5.4

Product colour

White

Height

35 mm

Width

305 mm

Depth

244 mm

Country of origin

China

Power source type

ATX

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

2.49 kg

Weight

2.21 kg

Bundled software

Norton® Internet Security (OEM version); LAN bandwidth management software

Producator

GIGABYTE

Garantie

36
