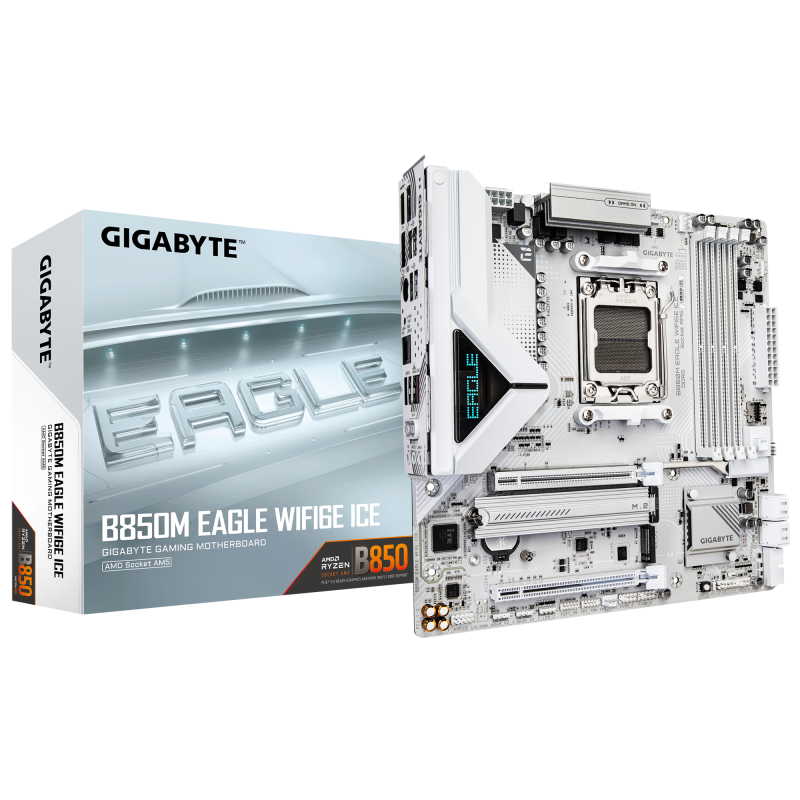

Name: Placa de Bază GIGABYTE B850M Eagle WIFI6E Ice AM5
Brand: GIGABYTE
SKU: B850M EAGLE WF6E ICE
Price: 968.66 RON
Availability: InStock

Placa de Bază GIGABYTE B850M Eagle WIFI6E Ice AM5

Placa de Baza GIGABYTE B850M EAGLE WIFI6E ICE AM5, 4x DDR5, 1x HDMI 2x DP, 1x PCIE 5.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de Bază GIGABYTE B850M Eagle WIFI6E Ice AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
USB3	4-8
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Processor manufacturer	AMD
WLAN controller model	Realtek RTL8852CE
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 ports quantity	4
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
DisplayPorts quantity	2
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
Cooling type	Passive
HDCP	Yes
Screws included	Yes
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B850
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Number of CPU fan connectors	2
TPM connector	Yes
Number of water pump connectors	2
RGB LED pin header	Yes
Number of RGB LED pin headers	4
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
PC health monitoring	Fan, Temperature, Voltage, Water cooling
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Motherboard chipset	AMD B850
Number of EPS power connectors (8-pin)	1
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
PCI-Ex1	0
RAM-Slots	4
MB-Format	micro-ATX
USB Type-C	N/A
MB-Socket	AM5
PCI-Ex16	2
Supported memory clock speeds	8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Microphone in	Yes
Headphone outputs	1
Batteries included	Yes
Weight	1.7 kg
Product colour	White
Height	35 mm
Width	244 mm
Depth	244 mm
Country of origin	China
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Products per shipping (inner) case	1 pc(s)
Package weight	1.9 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
