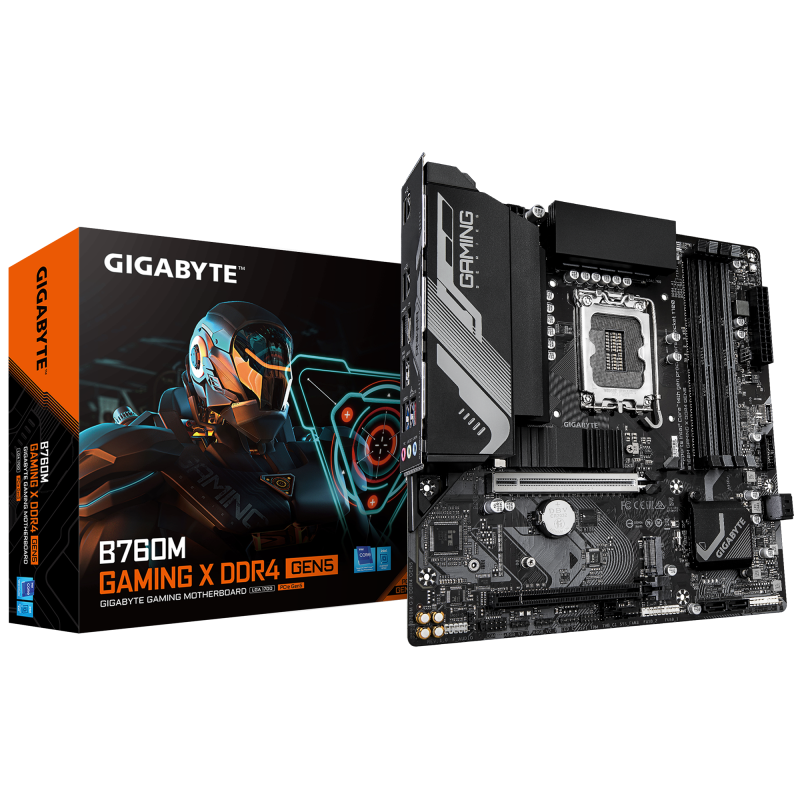

PLaca de baza Gigabyte B760M GAMING X DDR4 LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Prețul inițial a fost: 711.44 lei.Prețul curent este: 617.89 lei.

În stoc

SKU: B760M G X DDR4 GEN5 Categorie

PLaca de baza Gigabyte B760M GAMING X DDR4 LGA1700

Specificație: PLaca de baza Gigabyte B760M GAMING X DDR4 LGA1700

PCI

0

Serial-or-Paralel

No/No

Video-Connection

HDMI/DP

Wi-FI

No

USB3

4-8

PCI-Ex16

1

Onboard-CPU

No

RAID support

Yes

Component for

PC

Memory channels

Dual-channel

Processor manufacturer

Intel

Ethernet LAN

Yes

HDMI ports quantity

1

HDMI version

2.1

Maximum internal memory

128 GB

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

PCI Express x16 (Gen 3.x) slots

1

Audio output channels

7.1 channels

Line-in

Yes

PCI Express x16 (Gen 5.x) slots

1

Audio Chip

Realtek ALC897

Supported storage drive types

HDD & SSD

Supported memory types

DDR4-SDRAM

Number of M.2 (M) slots

2

Cooling type

Passive

USB 2.0 ports quantity

5

HDCP

Yes

Screws included

Yes

DisplayPort version

1.2

DisplayPorts quantity

1

VGA (D-Sub) ports quantity

0

Parallel processing technology support

Not supported

DVI-D ports quantity

0

DirectX version

12.0

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Model Chipset

B760

Gaming

Da

Format:

Micro-ATX (mATX)

Soclu Procesor

Socket 1700

Tip Memorie

DDR4

Numar sloturi memorie

4

Memorie maxima

128 GB

Tip slot interfata grafica

PCIe 5.0 x16

Chipset audio integrat

Realtek

Canale audio

7.1

Wireless

Nu

Bluetooth

Nu

HDMI

Da

Thunderbolt

Da

Sloturi M.2

2

RJ-45 LAN

1

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Motherboard form factor

micro ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

ECC сompatibility

ECC & Non-ECC

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Maximum resolution

4096 x 2304 pixels

Thunderbolt headers

2

12V power connector

Yes

Number of storage drives supported

6

S/PDIF out connector

Yes

Motherboard chipset

Intel B760

Serial port headers

1

Number of chassis fan connectors

3

1st M.2 largest key size

2280

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

1st M.2 highest PCI Express generation

4.0

Maximum internal memory per slot

32 GB

MB-Socket

1700

PCI-Ex1

0

RAM-Slots

4

MB-Format

micro-ATX

USB Type-C

N/A

Microphone in

Yes

Headphone outputs

1

Batteries included

Yes

Ethernet LAN (RJ-45) ports

1

Width

244 mm

Depth

244 mm

Height

3.5 mm

Country of origin

China

Package height

68 mm

Power source type

ATX

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Product colour

Dark brown

Products per shipping (inner) case

1 pc(s)

Package width

270 mm

Package depth

268 mm

Package weight

1.6 kg

Weight

1.19 kg

Supported memory clock speeds

3200,3000,2933,2666,2400,2133 MHz

Producator

GIGABYTE

Garantie

36
