Name: Placa de bază Gigabyte B760M GAMING PLUS WIFI LGA1700 - A.W.P.S Store
Brand: GIGABYTE
SKU: B760M G P WIFI DDR4
Price: 646.32 RON
Availability: InStock

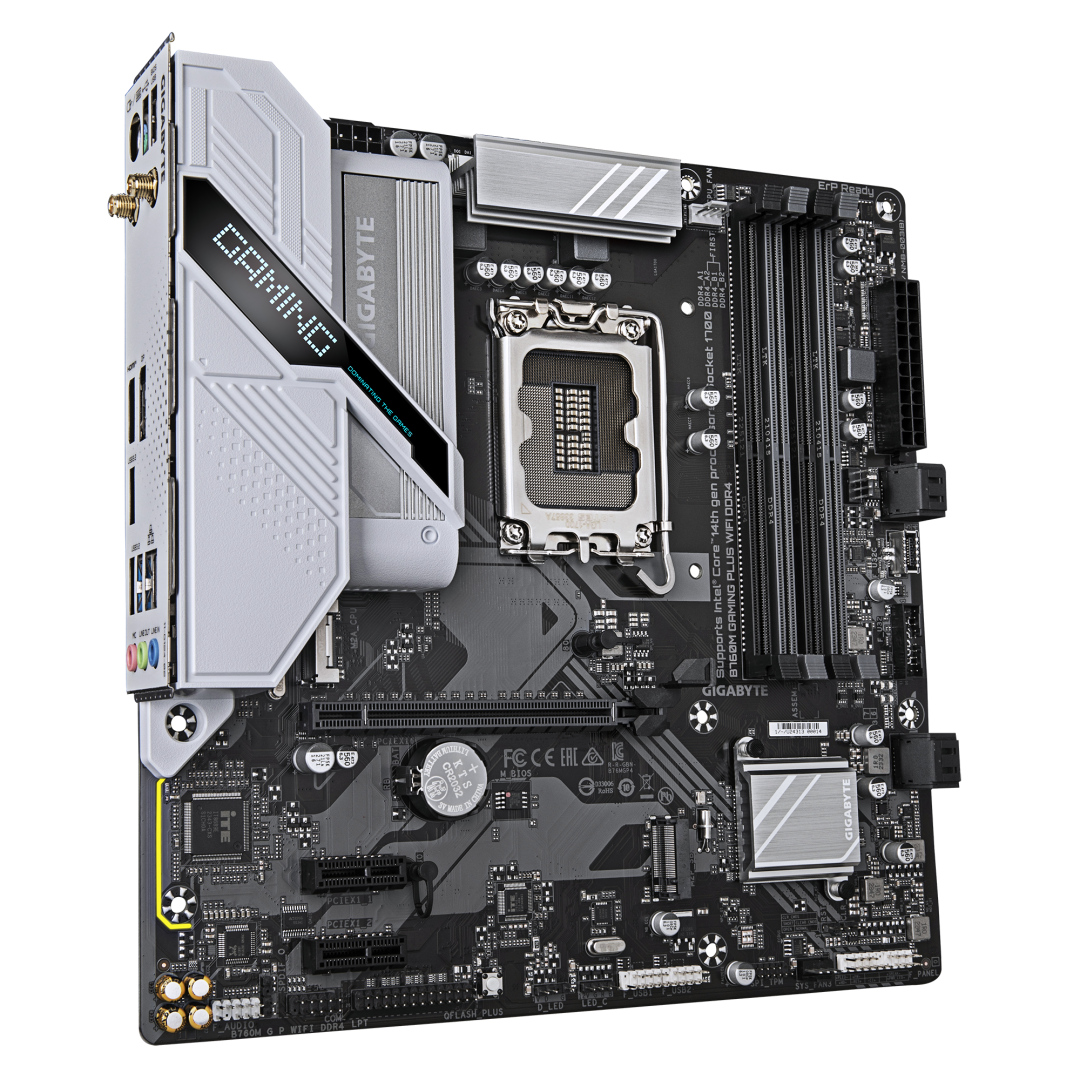

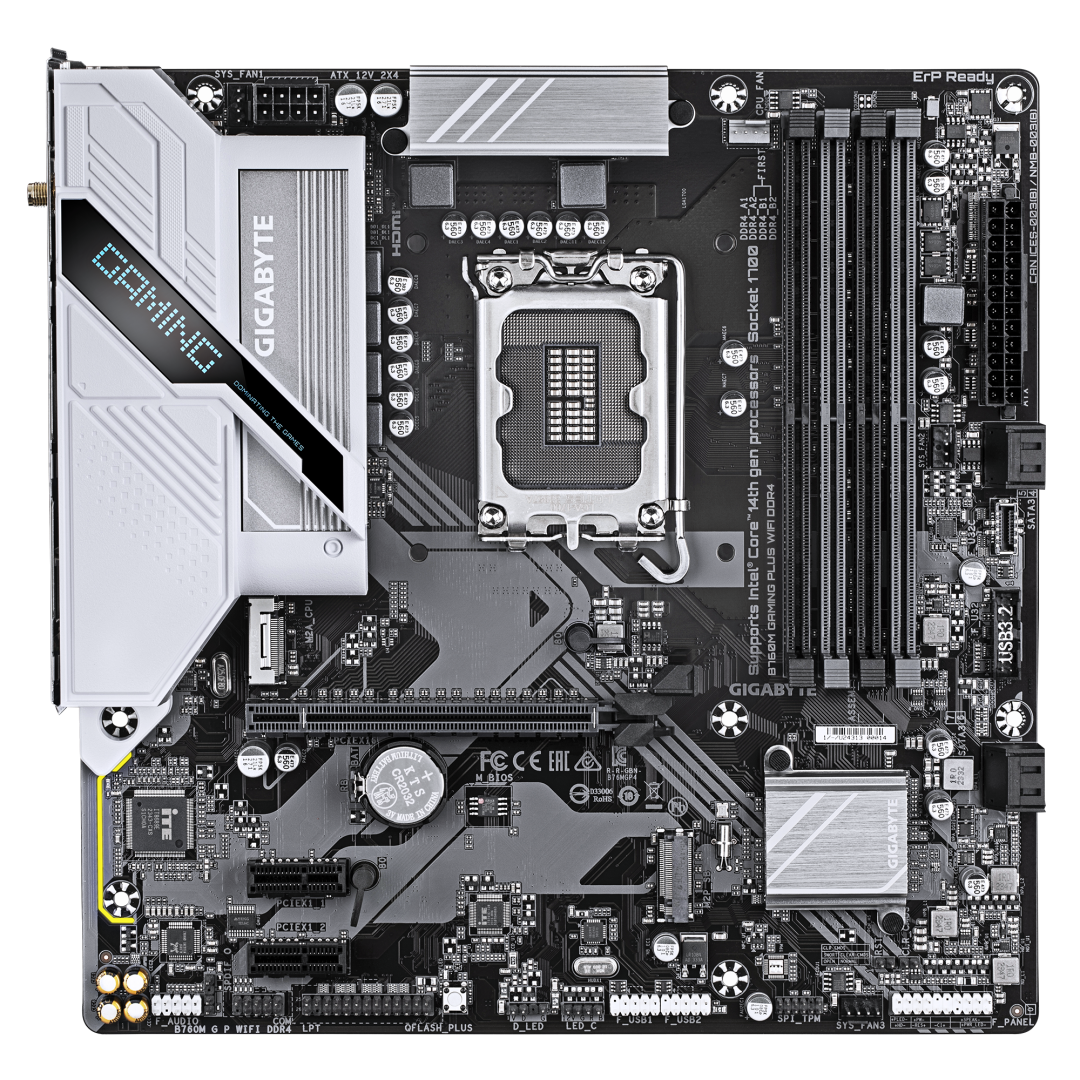

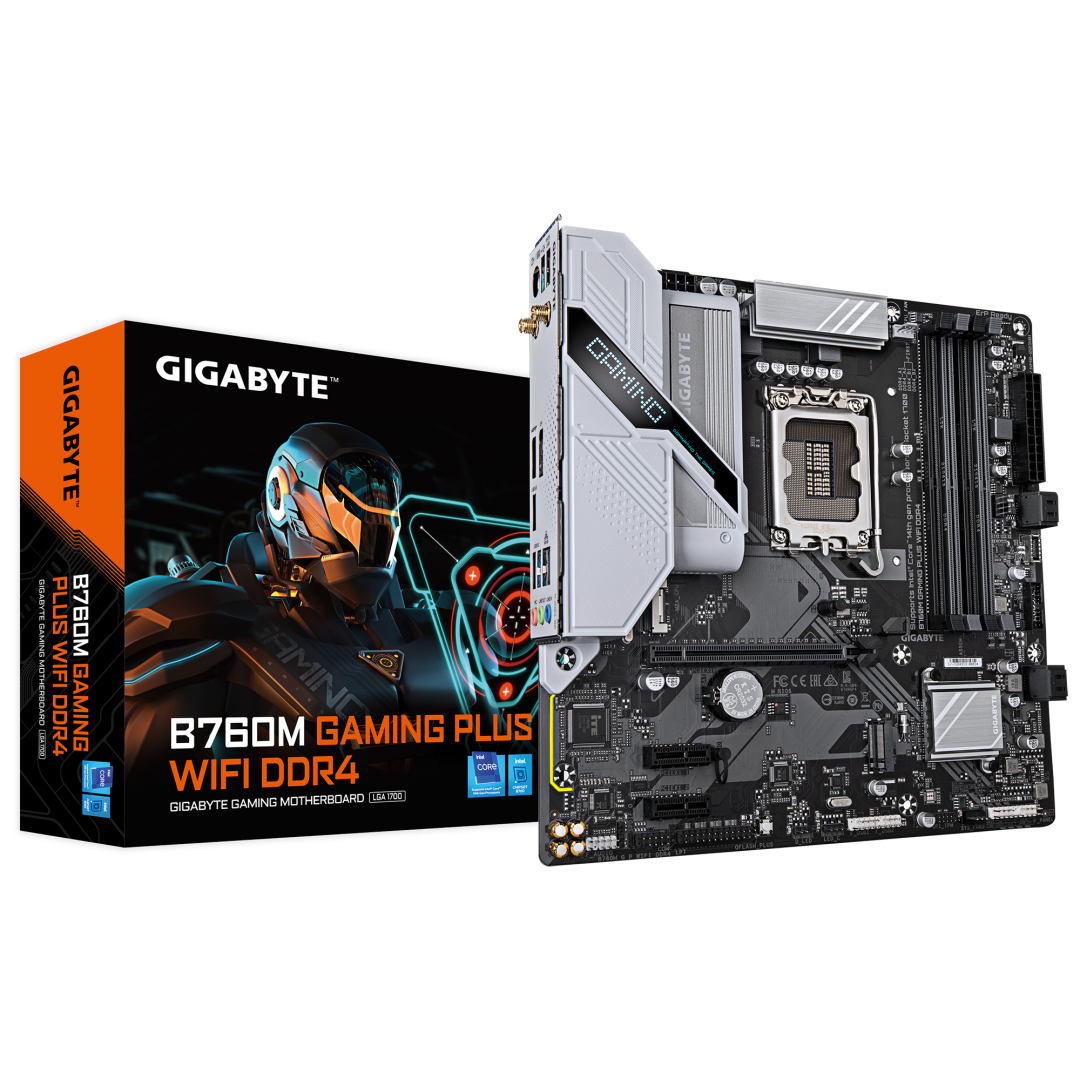

Placa de bază Gigabyte B760M GAMING PLUS WIFI LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza GIGABYTE B760M GAMING PLUS WIFI DDR4 LGA1700, 4x DDR4, 1x HDMI 1x DP, 1x PCIE x16 2x PCIE x1, 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de bază Gigabyte B760M GAMING PLUS WIFI LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
USB3	4-8
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
PCI Express x1 (Gen 3.x) slots	2
Audio output channels	7.1 channels
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Number of M.2 (M) slots	2
HDCP	Yes
Screws included	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B760
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum resolution	4096 x 2304 pixels
Number of storage drives supported	6
S/PDIF out connector	Yes
Motherboard chipset	Intel B760
BIOS memory size	128 Mbit
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
Number of chassis fan connectors	3
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
Number of EPS power connectors (8-pin)	1
Maximum internal memory supported by processor	128 GB
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	4.0
Supported memory clock speeds	5333 MHz
Parallel connector	Yes
WLAN controller model	Realtek RTL8851BE
Maximum internal memory per slot	32 GB
Number of RGB LED pin headers	2
MB-Socket	1700
RAM-Slots	4
MB-Format	micro-ATX
PCI-Ex1	2
Headphone outputs	1
Bluetooth version	5.3
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Height	35 mm
Width	244 mm
Depth	244 mm
Country of origin	China
Package height	68 mm
Package weight	1.2 kg
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	270 mm
Package depth	268 mm
Weight	1.1 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
