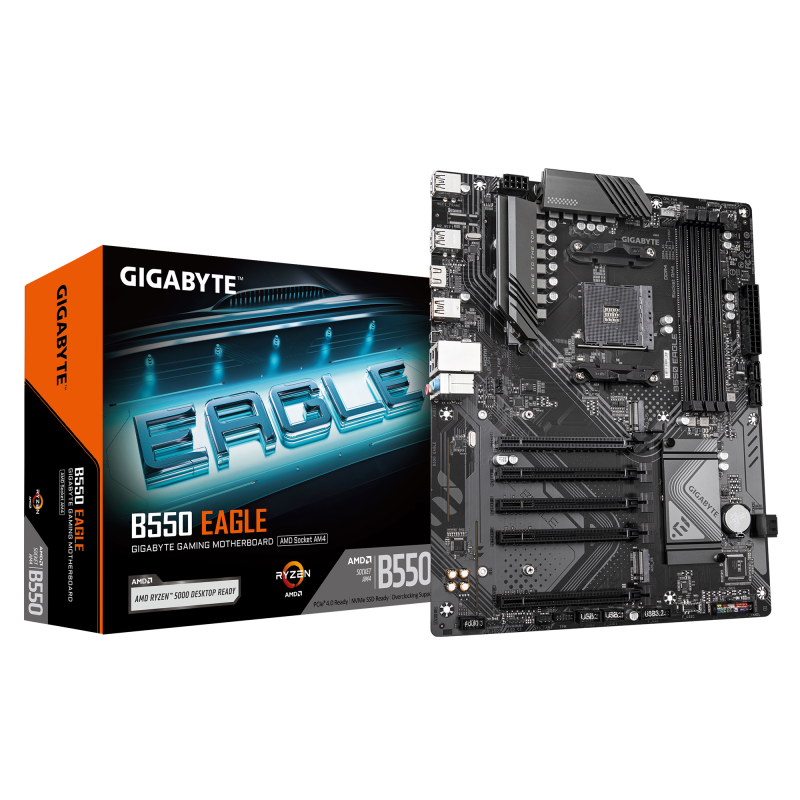

Name: Placa de Bază GIGABYTE B550 Eagle AM4
Brand: GIGABYTE
SKU: B550 EAGLE
Price: 555.98 RON
Availability: InStock

Placa de Bază GIGABYTE B550 Eagle AM4

Placa de Baza GIGABYTE B550 EAGLE AM4, 4x DDR4, 1x HDMI, 1x PCIE 4.0 x16 4x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, ATX

Specificație: Placa de Bază GIGABYTE B550 Eagle AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	No
USB3	4-8
Onboard-CPU	No
RAID support	Yes
Component for	PC
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Processor manufacturer	AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Number of M.2 (M) slots	2
Processor socket	Socket AM4
Cooling type	Passive
Motherboard chipset	AMD B550
HDCP	Yes
Screws included	Yes
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B550
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Front panel connector	Yes
Number of CPU fan connectors	2
TPM connector	Yes
RGB LED pin header	Yes
Motherboard form factor	ATX
PC health monitoring	Fan, Temperature, Voltage, Water cooling
2nd M.2 largest key size	22110
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Number of storage drives supported	6
BIOS memory size	128 Mbit
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
RAID levels	0, 1, 10
Number of chassis fan connectors	3
Number of EPS power connectors (8-pin)	1
Supported processor sockets	Socket AM4
Number of water pump connectors	1
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	22110
Number of RGB LED pin headers	5
Maximum internal memory per slot	32 GB
MB-Format	ATX
PCI-Ex1	0
RAM-Slots	4
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported memory clock speeds	3200,2933,2667,2400,2133 MHz
PCI Express x1 (Gen 3.x) slots	4
2nd M.2 highest PCI Express generation	3.0
USB Type-C	N/A
MB-Socket	AM5
PCI-Ex16	5
Microphone in	Yes
Headphone outputs	1
Batteries included	Yes
Height	35 mm
Width	305 mm
Depth	244 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
Package weight	1.48 kg
Weight	1.25 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
