Name: Placa de bază ASRock B550M PRO4 AM4 - A.W.P.S Store
Brand: ASROCK
SKU: B550M PRO4
Price: 588.99 RON
Availability: OutOfStock

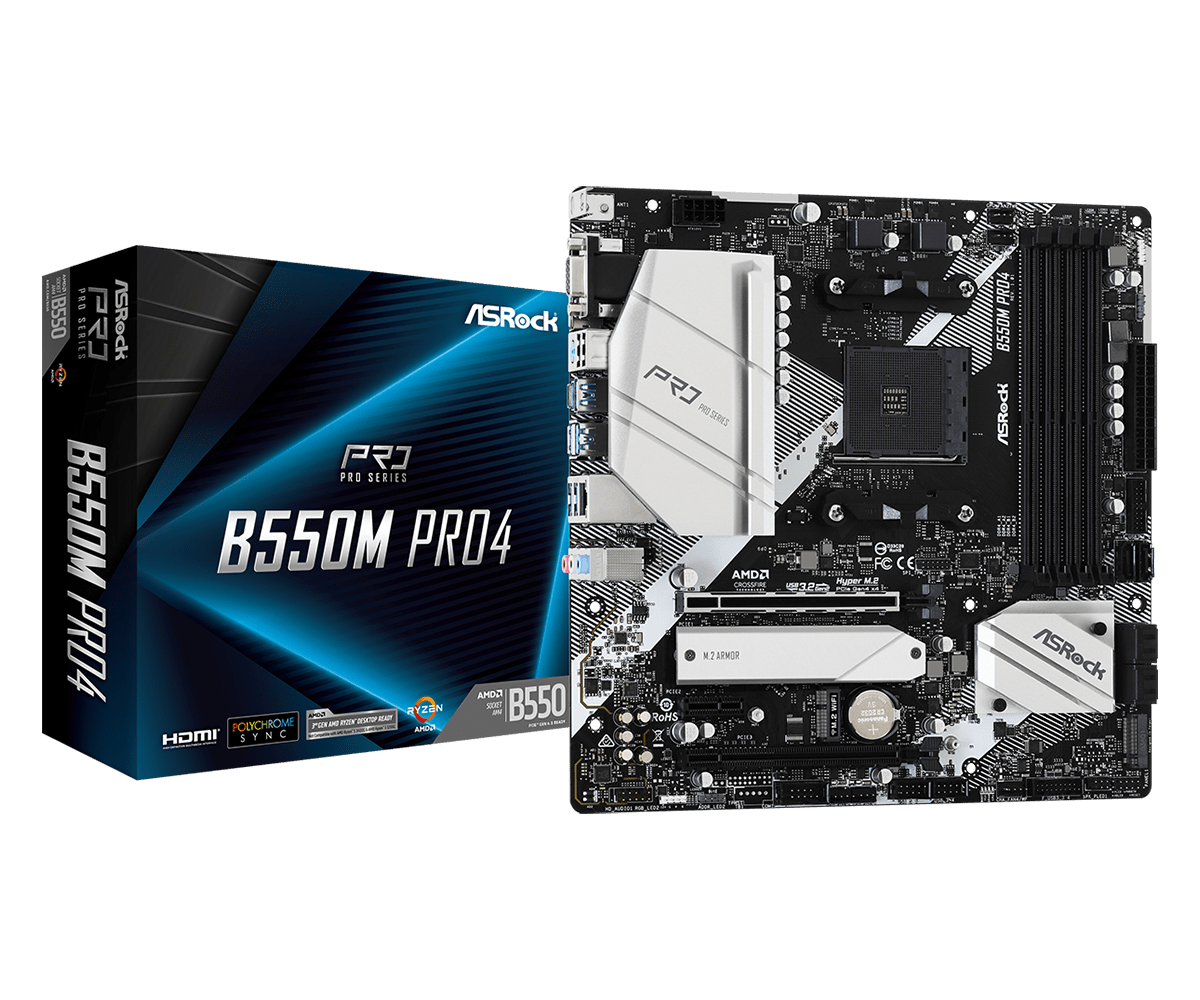

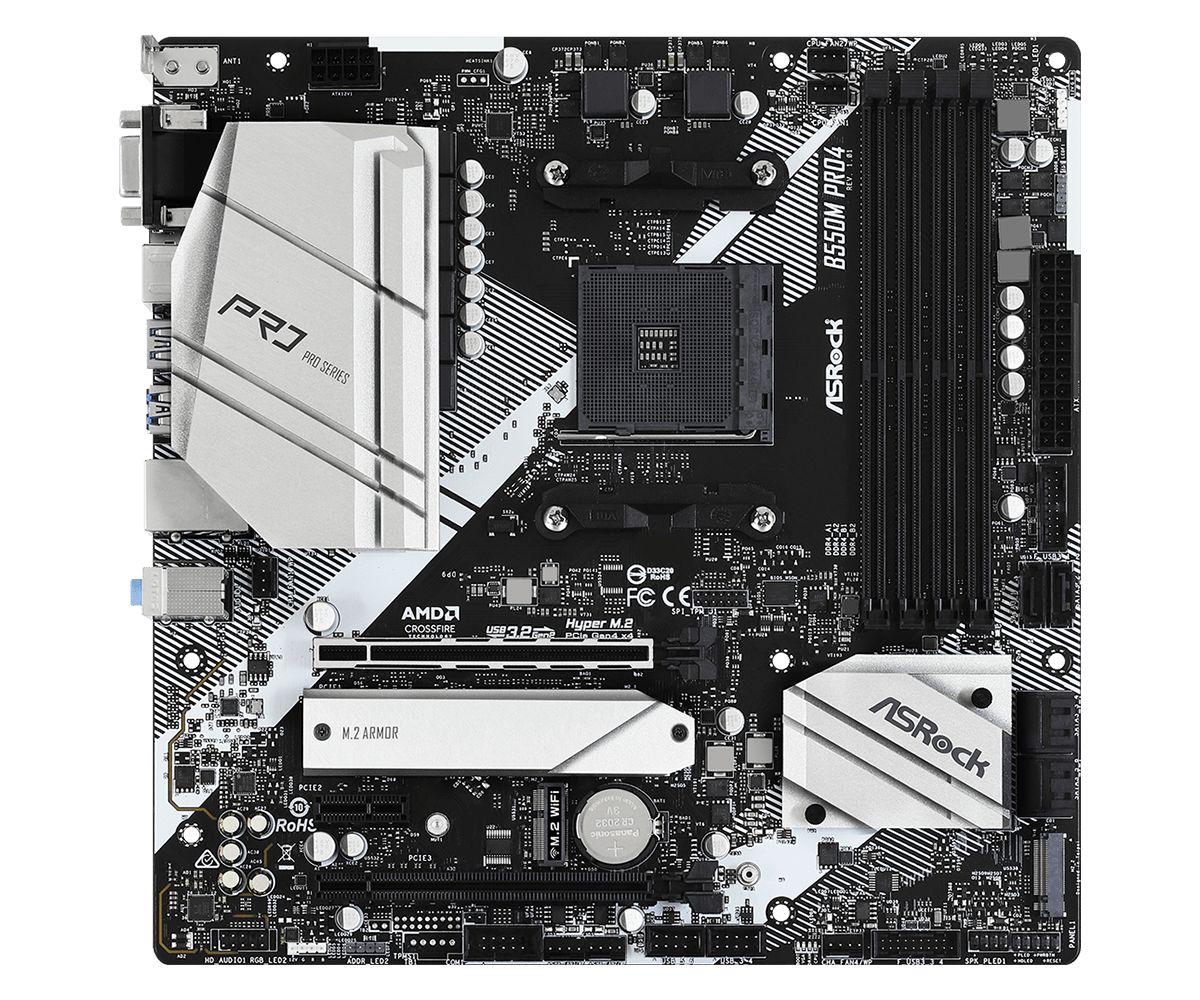

Placa de bază ASRock B550M PRO4 AM4

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Chipsetul AMD B550 face PCIe® 4.0 posibil pentru toti cei care isi doresc performanta, latime de banda si viteza superioare. Pregatit pentru procesoarele AMD Ryzen™ de generatia a 3-a si ulterioare.

Specificație: Placa de bază ASRock B550M PRO4 AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	VGA/DVI/HDMI/DP
Wi-FI	No
CPU încorporat	No
RAID support	Yes
Component for	PC
Wake-on-LAN ready	Yes
DisplayPort version	1.4
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Audio Chip	Realtek ALC1200
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Processor socket	Socket AM4
Motherboard chipset	AMD B550
VGA (D-Sub) ports quantity	1
HDCP	Yes
DisplayPorts quantity	1
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Drivers included	Yes
Maximum resolution	5120 x 2880 pixels
Model Chipset	B550
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Compatible processor series	AMD Ryzen 3000 Series
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ECC сompatibility	ECC & Non-ECC
Front panel connector	Yes
Number of chassis fan connectors	4
TPM connector	Yes
RGB LED pin header	Yes
Number of M.2 (M) slots	3
Maximum number of SMP processors	1
12V power connector	Yes
Number of COM connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
RAID levels	0, 1, 10
Number of SATA III connectors	0
PC health monitoring	CPU, Fan, Temperature, Voltage
Supported processor sockets	Socket AM4
Supported memory clock speeds	4733 MHz
Number of displays supported	3
ACPI version	5.1
System Management BIOS (SMBIOS) version	2.3
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Parallel processing technology support	CrossFireX, Quad-GPU CrossFireX
Number of SATA II connectors	6
Microphone in	Yes
Weight	465 g
Harmonized System (HS) code	84733020
Cables included	SATA
Height	70 mm
Width	244 mm
Depth	244 mm
Certification	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Producator	ASROCK
Garantie	24
