Name: Placa de bază ASRock B550M Phantom Gaming 4 AM4 - A.W.P.S Store
Brand: ASROCK
SKU: B550M PHANTOM GAM4
Price: 444.60 RON
Availability: OutOfStock

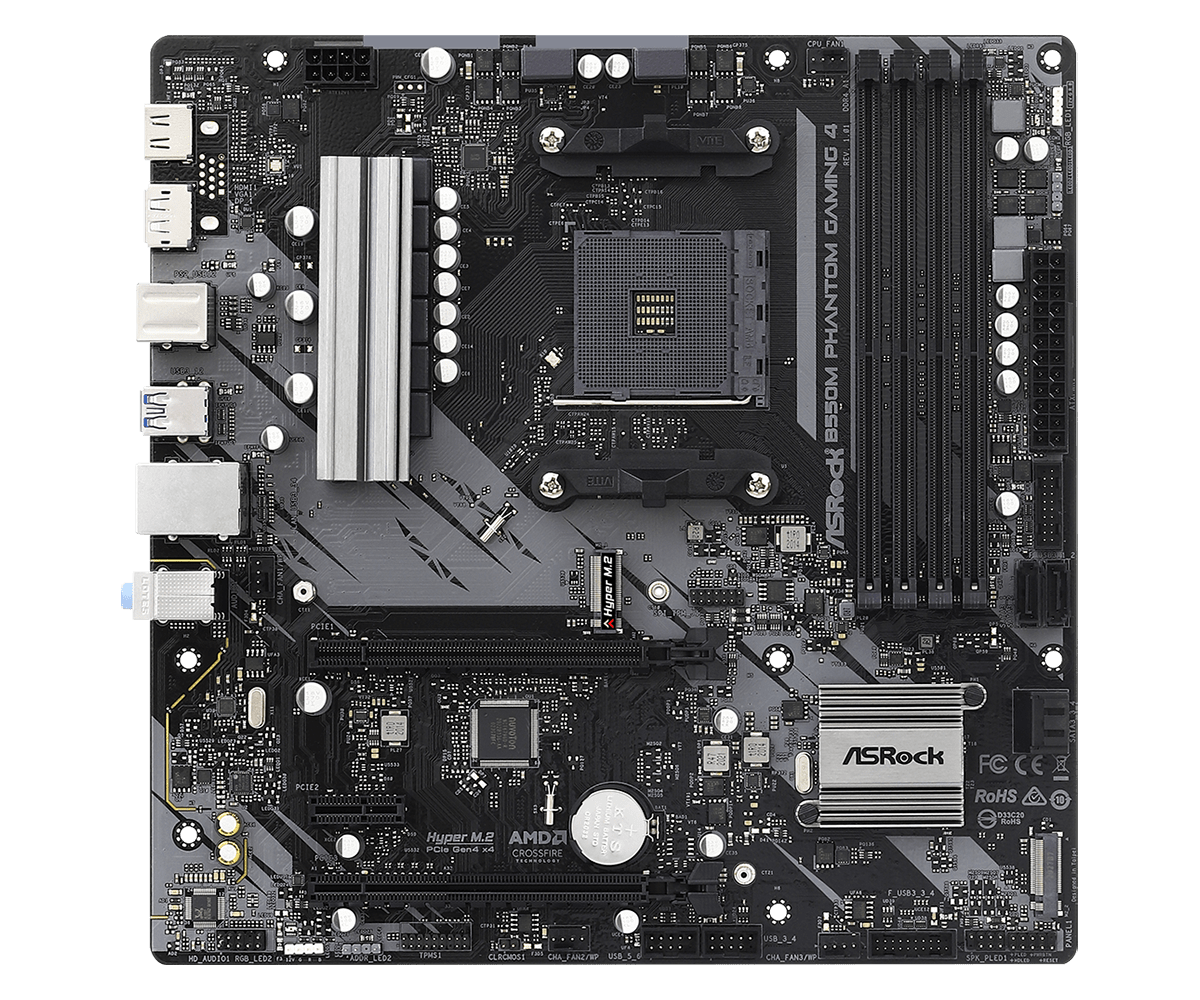

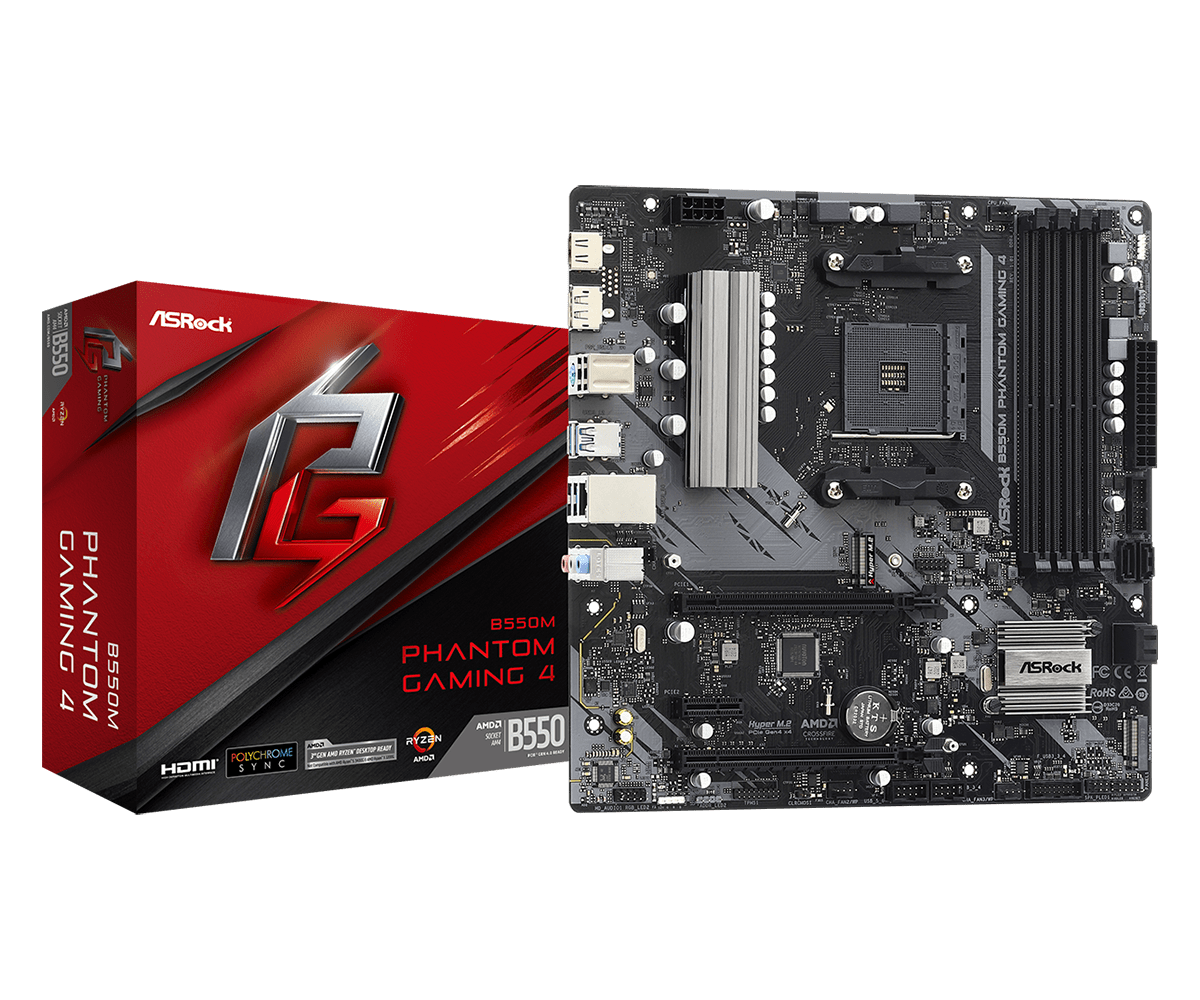

Placa de bază ASRock B550M Phantom Gaming 4 AM4

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Phantom Gaming este proiectat de gamerisi pentru gameri! Sub aspectul sau implacabil se afla functii abundente orientate spre gaming si capacitati excelente de joc. Este vorba doar de aducerea unei noi experiente de gaming pentru gameri!

Specificație: Placa de bază ASRock B550M Phantom Gaming 4 AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
CPU încorporat	No
Component for	PC
Wake-on-LAN ready	Yes
DisplayPort version	1.4
Ethernet interface type	Gigabit Ethernet
Windows operating systems supported	Windows 10 x64
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Processor socket	Socket AM4
Number of M.2 (M) slots	1
Motherboard chipset	AMD B550
HDCP	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
DirectX version	12.0
Drivers included	Yes
Maximum resolution	5120 x 2880 pixels
Model Chipset	B550
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Compatible processor series	AMD Ryzen 3000 Series
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ECC сompatibility	ECC & Non-ECC
TPM connector	Yes
RGB LED pin header	Yes
Maximum number of SMP processors	1
12V power connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Supported storage drive interfaces	SATA III
eSATA ports quantity	0
Firewire (IEEE 1394) ports	0
Number of chassis fan connectors	3
PC health monitoring	Fan, Temperature, Voltage
ACPI version	5.1
System Management BIOS (SMBIOS) version	2.3
PCI Express x16 (Gen 3.x) slots	3
Supported memory clock speeds	2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533 MHz
Audio Chip	Realtek ALC887 / Realtek ALC897
Overclocking features	FCC, CE ErP/EuP
Weight	465 g
Harmonized System (HS) code	84733020
Cables included	SATA
Height	70 mm
Width	244 mm
Depth	244 mm
Producator	ASROCK
Garantie	24
