Name: Placa de bază ASRock B550 Taichi Razer Edition AM4 - A.W.P.S Store
Brand: ASROCK
SKU: B550 TAICHI RAZER
Price: 1272.18 RON
Availability: OutOfStock

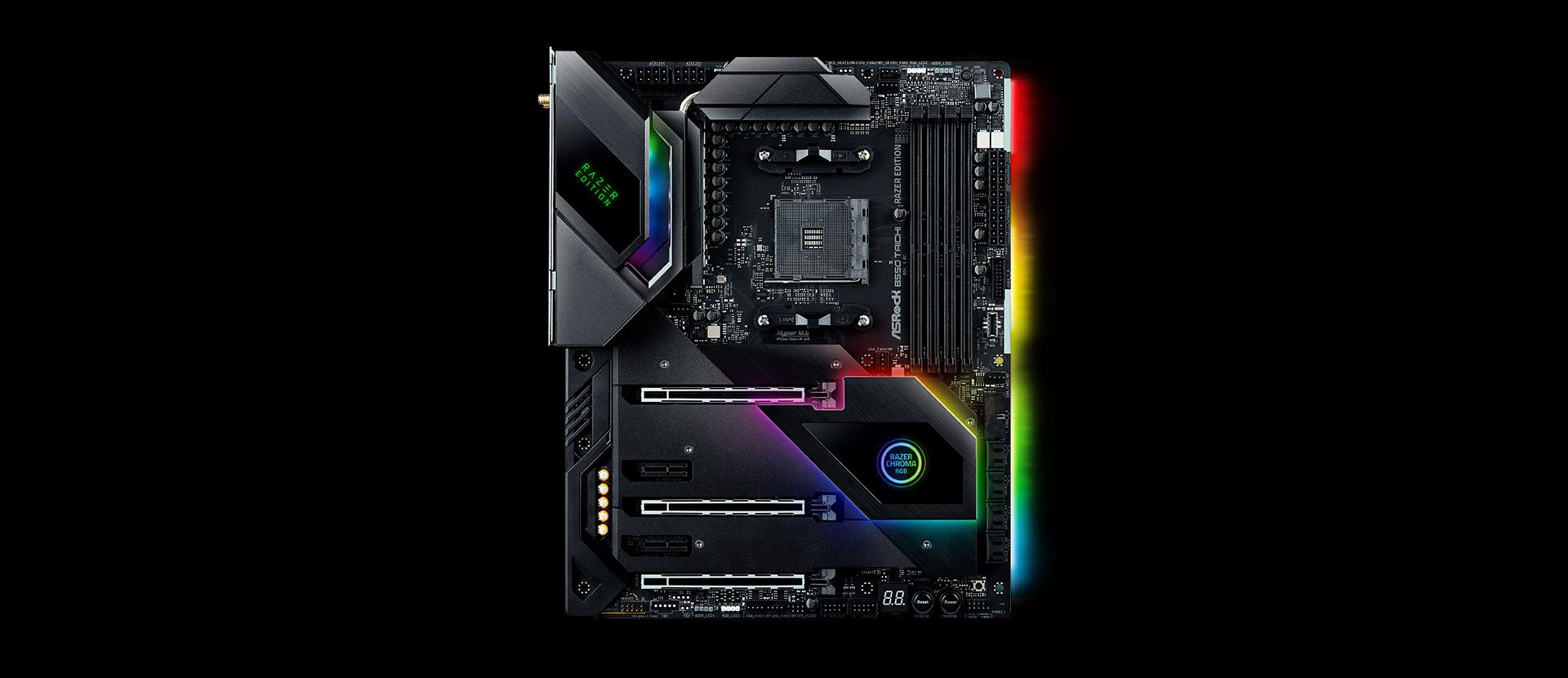

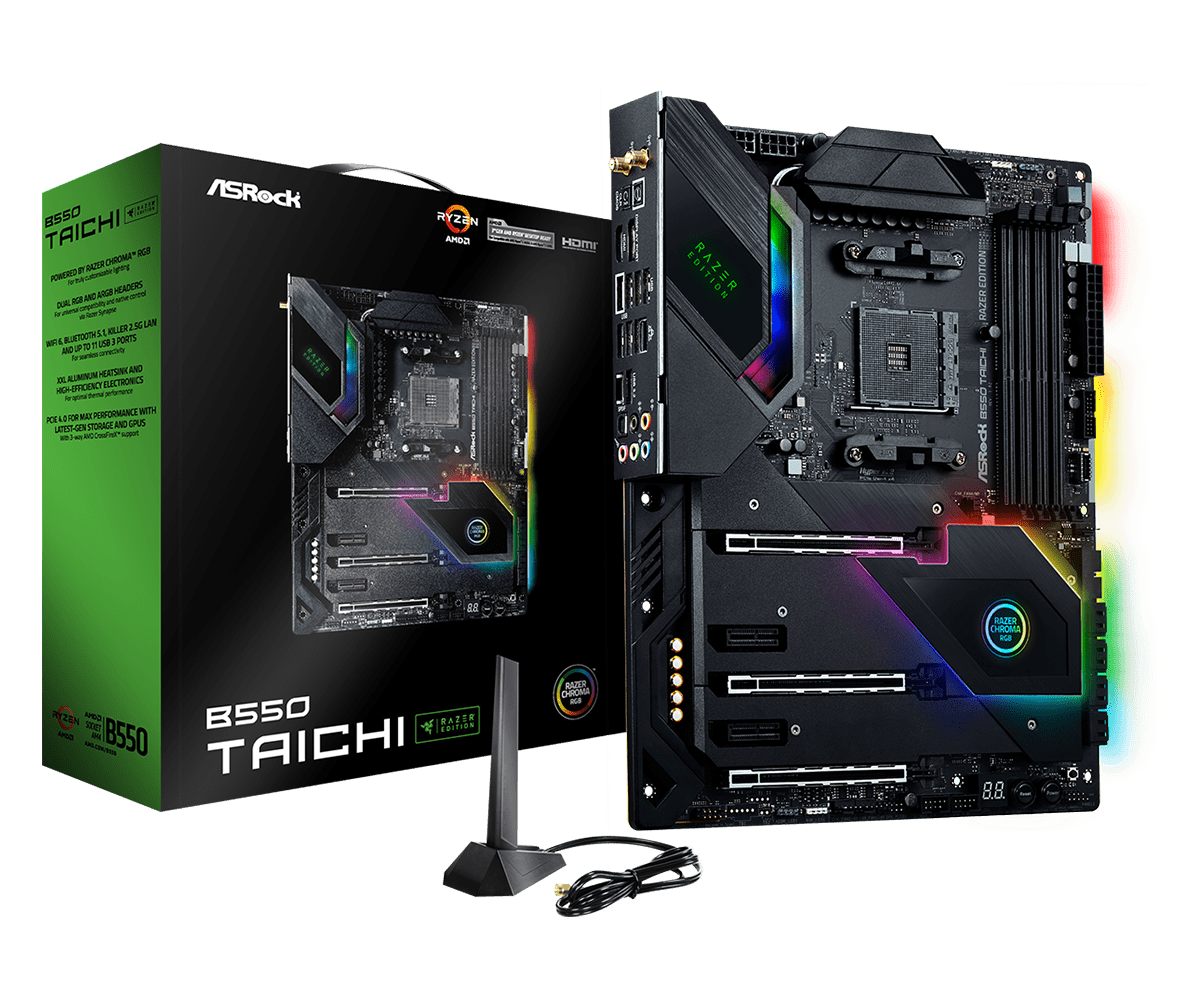

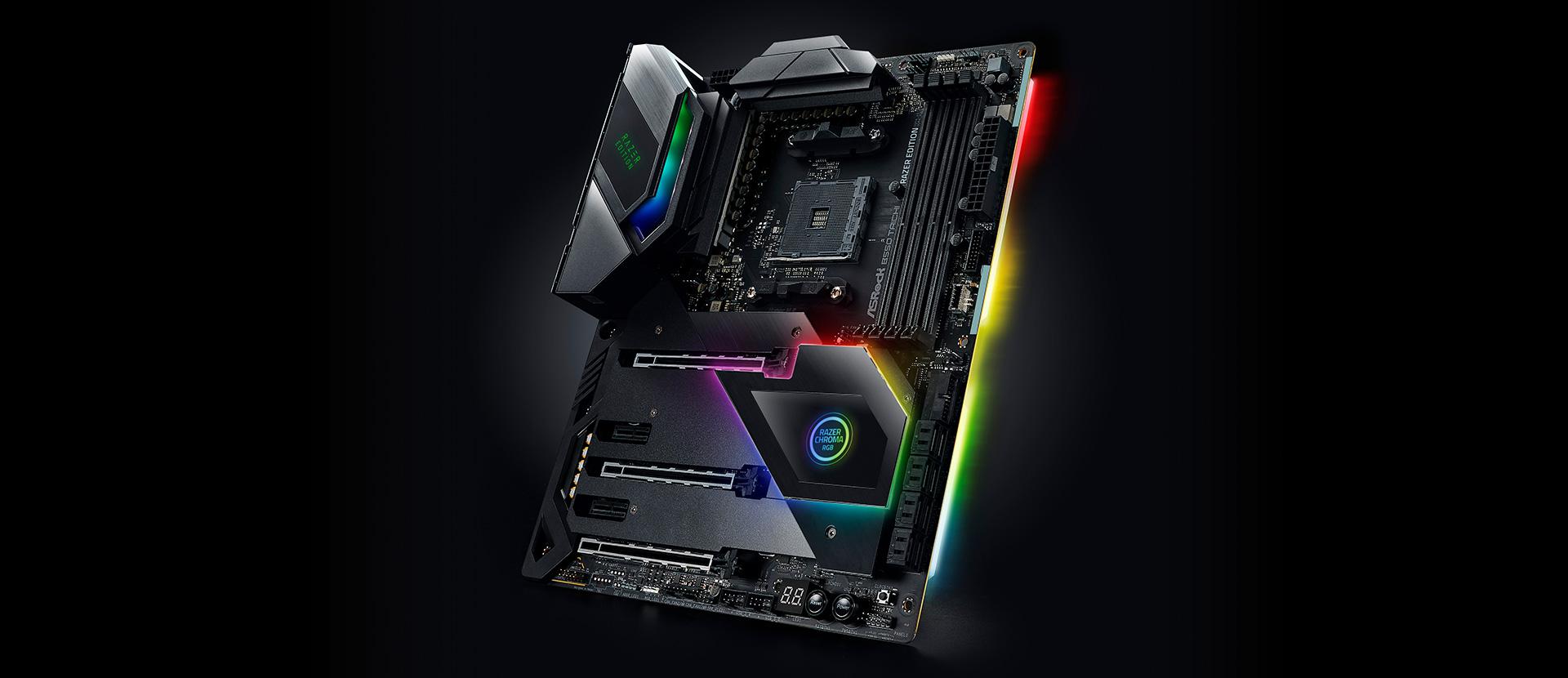

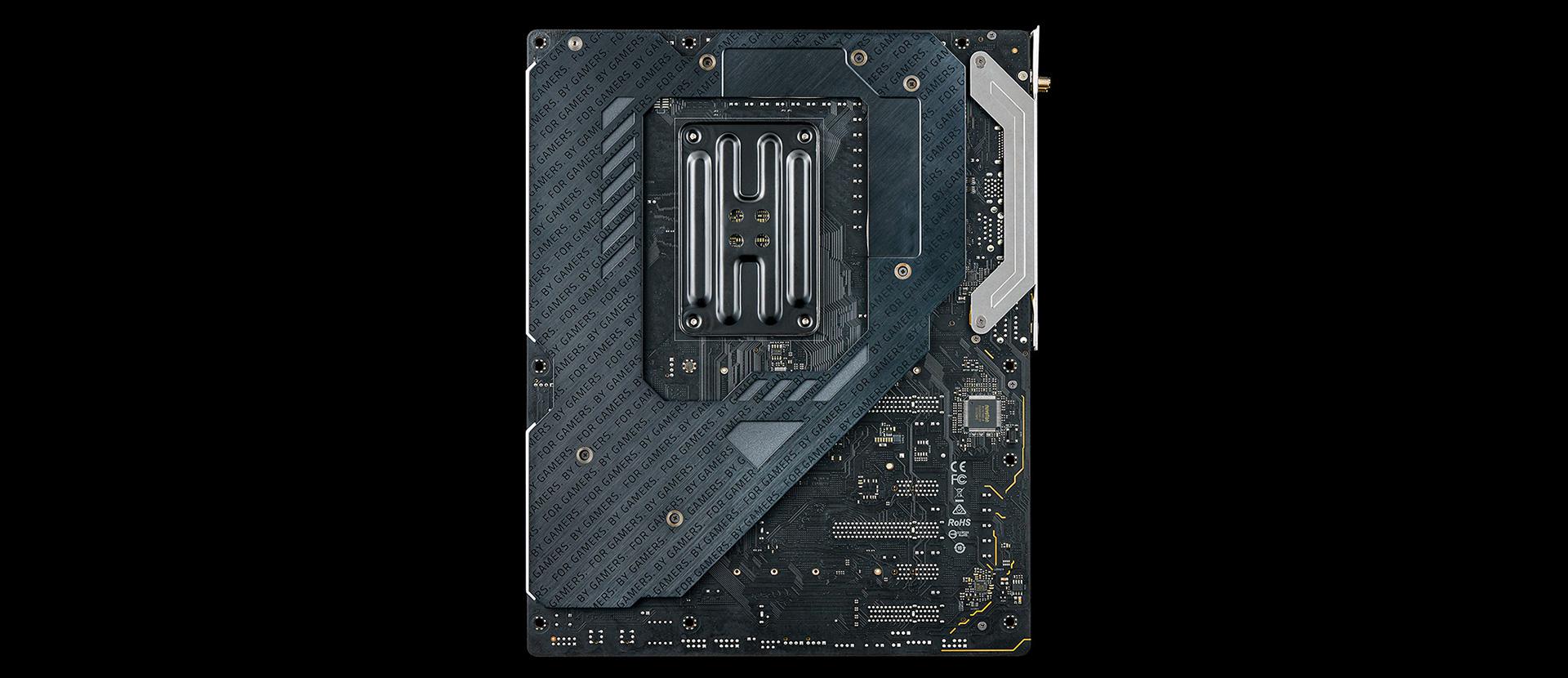

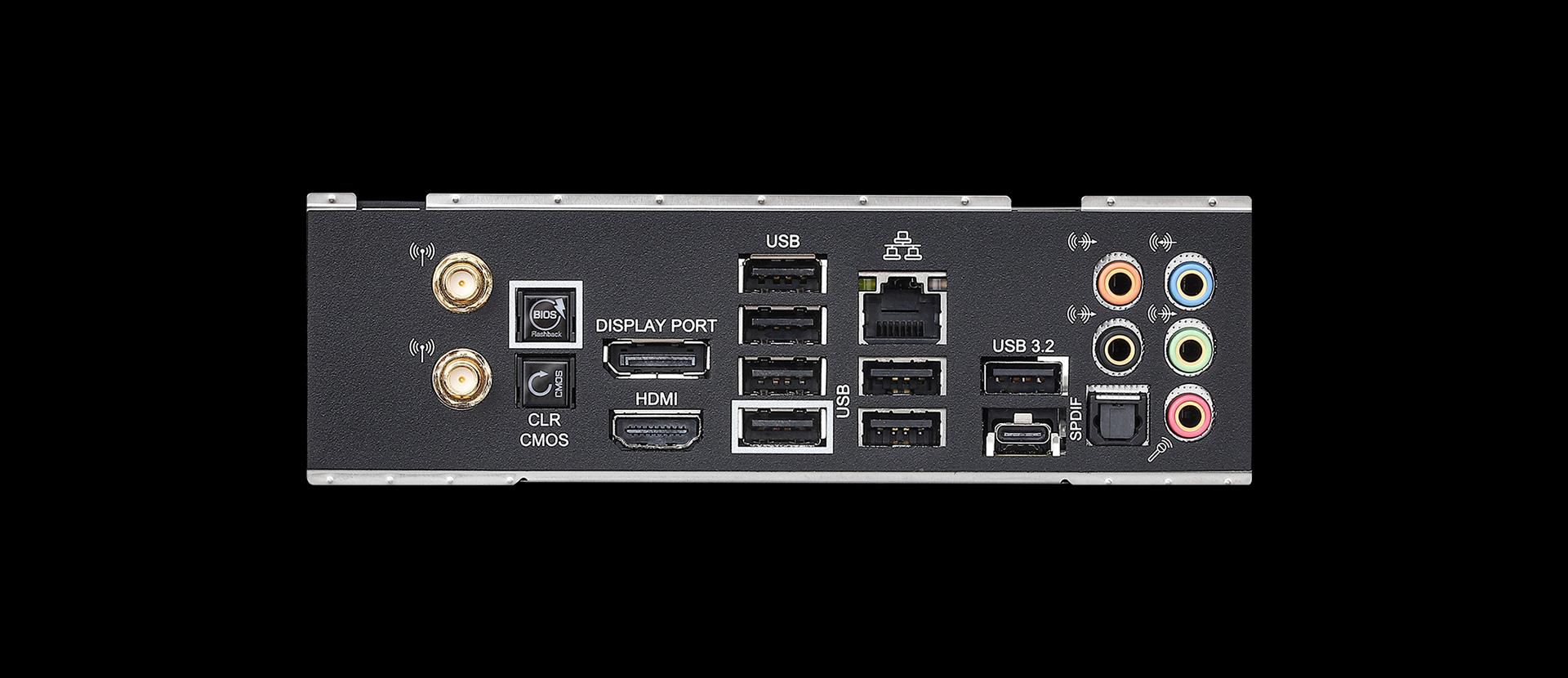

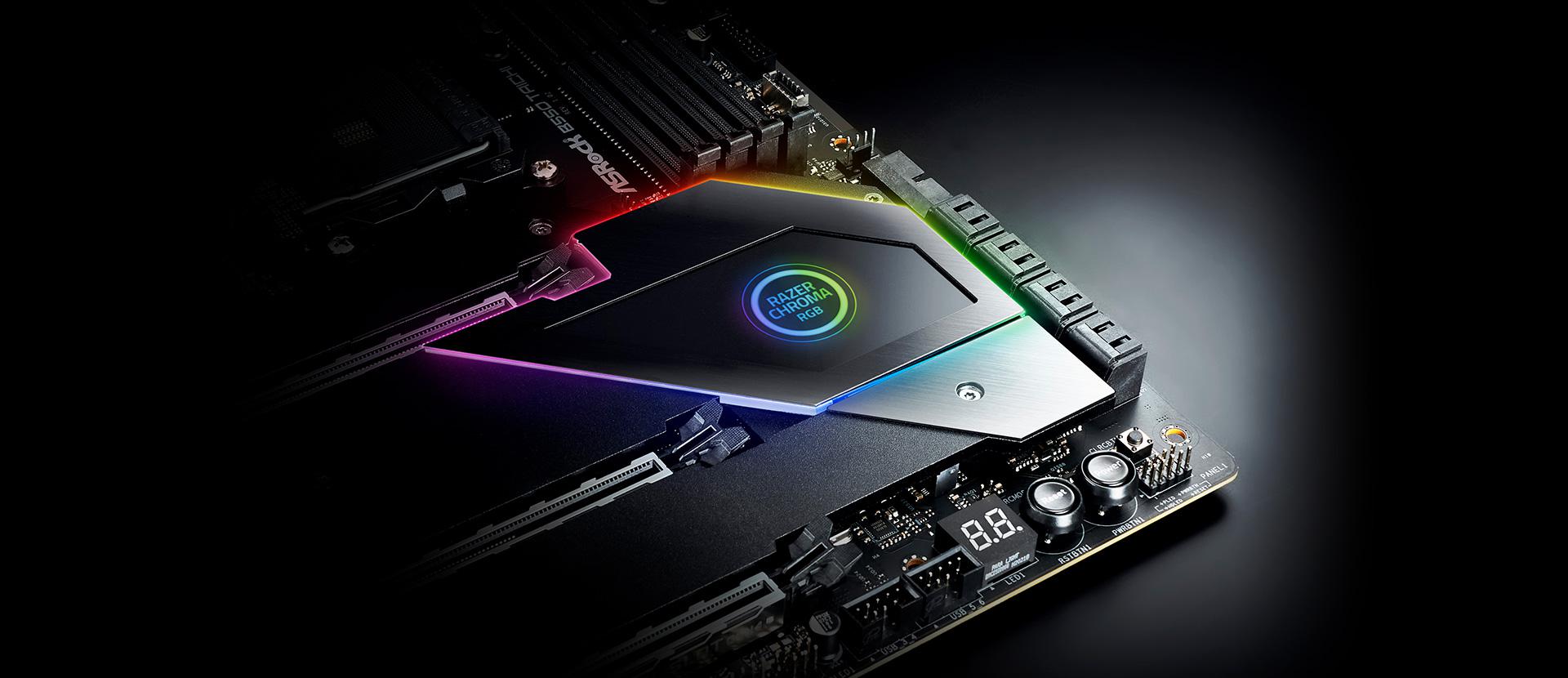

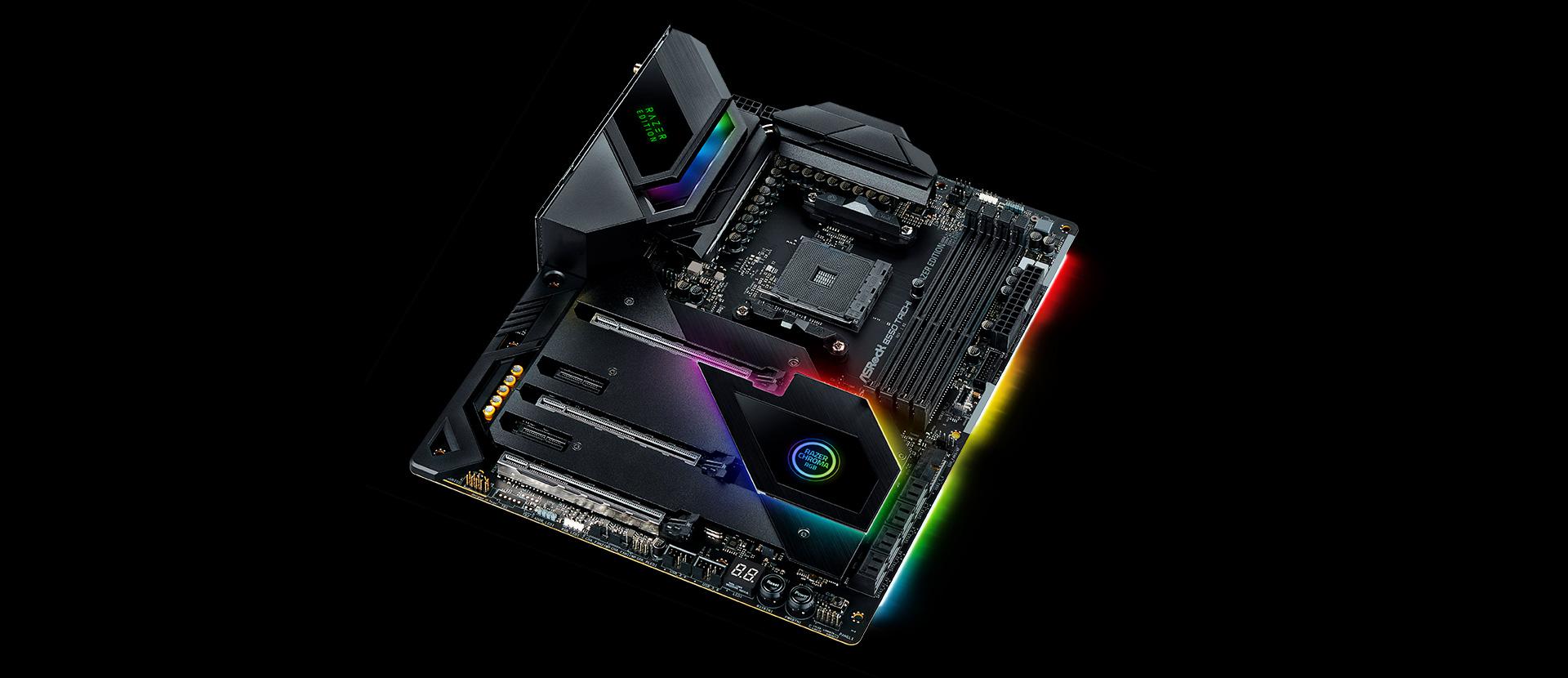

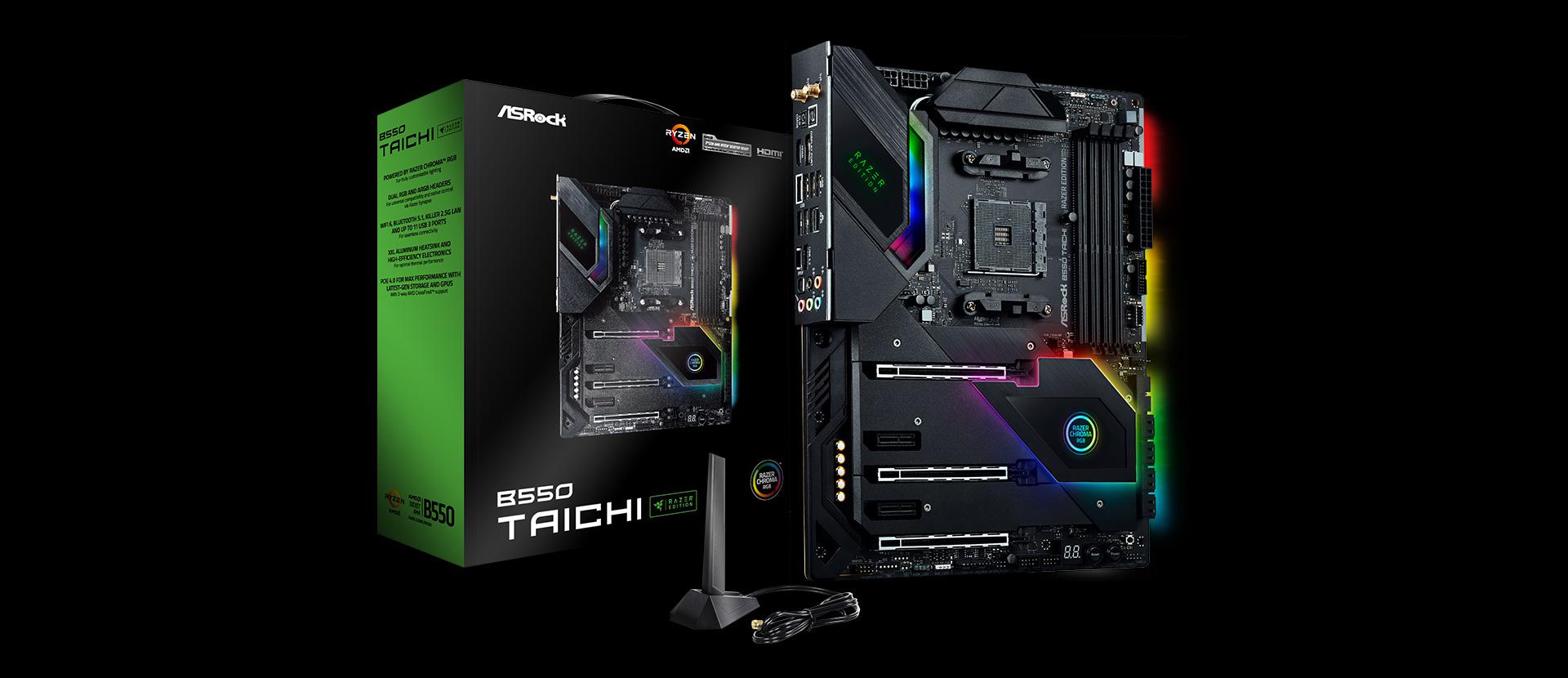

Placa de bază ASRock B550 Taichi Razer Edition AM4

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza AsRock B550 Taichi Razer Edition AM4 Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors 16 Power Phase Design, Digi Power, Dr. MOS Supports DDR4 5200+ (OC) 3 PCIe 4.0/3.0×16, 2 PCIe 3.0 x1 Graphics Output Options: HDMI, DisplayPort AMD 3-Way CrossFireX™ 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (4 Front, 4 Rear) Killer E3100X 2.5G LAN, Killer AX1650x Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1 Supports Razer Chroma https://www.asrock.com/mb/AMD/B550%20Taichi%20Razer% 20Edition/Specification.asp

Specificație: Placa de bază ASRock B550 Taichi Razer Edition AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
CPU încorporat	No
Component for	PC
Wake-on-LAN ready	Yes
DisplayPort version	1.4
Windows operating systems supported	Windows 10 x64
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x1 (Gen 3.x) slots	2
Audio output channels	7.1 channels
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
Processor socket	Socket AM4
S/PDIF out port	Yes
Motherboard chipset	AMD B550
HDCP	Yes
Digital audio optical out	1
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
DirectX version	12.0
Drivers included	Yes
Maximum resolution	5120 x 2880 pixels
Model Chipset	B550
Gaming	Da
Format:	ATX
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	N/A
RJ-45 LAN	1
Compatible processor series	AMD Ryzen 3000 Series
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ECC сompatibility	ECC & Non-ECC
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Maximum number of SMP processors	1
12V power connector	Yes
Clear CMOS button	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of chassis fan connectors	5
PS/2 ports quantity	0
Supported storage drive interfaces	SATA III
RAID levels	0, 1, 10
Maximum graphics card memory	16000 MB
eSATA ports quantity	0
Firewire (IEEE 1394) ports	0
PCI Express x16 slots	3
Number of SATA III connectors	8
PC health monitoring	Fan, Temperature, Voltage
Audio Chip	Realtek ALC1220
ACPI version	5.1
System Management BIOS (SMBIOS) version	2.3
Parallel processing technology support	3-Way CrossFireX, CrossFireX, Quad-GPU CrossFireX
LAN controller	Killer E3100X
Bluetooth version	5.1
Harmonized System (HS) code	84733020
Cables included	SATA
Certification	FCC, CE, ErP/EuP
Width	305 mm
Depth	244 mm
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Producator	ASROCK
Garantie	36
