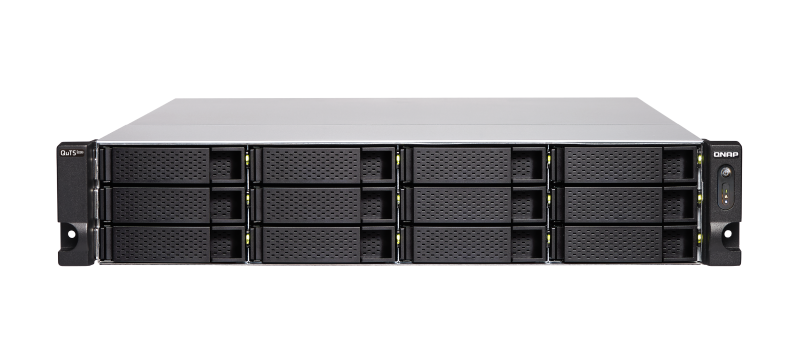

Name: QNAP NAS TS-h1886XU-RP-D1622-32G, 18-Bay SATA 6Gbps (12 x 3.5" + - A.W.P.S Store
Brand: QNAP
SKU: TS-H1886XU-RP-32G
Price: 16130.40 RON
Availability: OutOfStock

QNAP NAS TS-h1886XU-RP-D1622-32G, 18-Bay SATA 6Gbps (12 x 3.5" +

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

QNAP NAS TS-h1886XU-RP-D1622-32G, 18-Bay SATA 6Gbps (12 x 3.5″ + 6 x 2.5″) 2U NAS, Intel Xeon D-1622 4 cores / 8 threads up to 3.20 GHz, 32GB ECC DDR4 RAM (4 x DIMMs, max 128GB total), 4 x 2.5GbE RJ45 LAN, 2 x 10GbE SFP+ SmartNIC, optional 25GbE & fibre channel FC support, iSCSI, RAID, 3 x PCIe expansion slots (1 slot is pre-installed with a 2-port 10GbE SFP+ card), USB 3.2 Gen1, redundant power supply, QuTS hero O.S. with ZFS, deduplication, compress, snapshots, optional fibre channel FC support

Specificație: QNAP NAS TS-h1886XU-RP-D1622-32G, 18-Bay SATA 6Gbps (12 x 3.5" +

Storage-Format	NAS
Storage-Type	HDD
USB Port	Yes
Supported-HDDs	6
S.M.A.R.T. support	Yes
Linux operating systems supported	Yes
Storage relative humidity (H-H)	5 – 95%
RAID support	Yes
Internal memory	32 GB
Hot-swap drive bays	Yes
On-board graphics card model	Not available
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Link aggregation	Yes
Cooling type	Active
Backup function	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Internal memory type	DDR4
Processor manufacturer	Intel
Ethernet LAN	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Intel VT-x with Extended Page Tables (EPT)	Yes
CPU configuration (max)	1
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Execute Disable Bit	Yes
Intel Trusted Execution Technology	Yes
Processor threads	8
Processor cores	4
Processor cache	8 MB
Idle States	Yes
Processor lithography	14 nm
Processor operating modes	64-bit
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Secure Key	Yes
Intel® OS Guard	Yes
Intel 64	Yes
Thermal Monitoring Technologies	Yes
USB 2.0 ports quantity	0
Intel® Turbo Boost Technology	2.0
Intel TSX-NI	Yes
PCI Express x4 (Gen 3.x) slots	2
Processor frequency	2.6 GHz
Supported storage drive types	HDD & SSD
Processor boost frequency	3.2 GHz
Number of fans	3 fan(s)
Maximum internal memory supported by processor	128 GB
Scalability	1S
Processor package size	37.5 x 37.5 mm
Reset button	Yes
DHCP server	Yes
Web-based management	Yes
Universal Plug and Play (UPnP)	Yes
Access Control List (ACL)	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	1000,10000 Mbit/s
Fan voltage	12 V
Fiber optic connector	SFP+
RAID levels	0, 1, 5, 6, 10, 50, 60
Chassis type	Rack (2U)
Fiber ports quantity	2
Built-in FTP server	Yes
Number of power supply units	2
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Installed storage drive type	No
Storage drive capacity	0 GB
Storage drive sizes supported	2.5,3.5
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Bad block scan	Yes
Load balancing system	Yes
WLAN adapter supported	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Snapshot	Yes
Browser supported	Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari
System log	Yes
Hot spare	Yes
Disk scan	Yes
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Memory form factor	UDIMM
Power supply location	Built-in
Flash memory	5000 MB
Supported file systems	FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
Fan diameter	6 cm
Operating system installed	QuTS hero
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Maximum RAM supported	128 GB
Power supply unit (PSU) capacity	550 W
Device class	Large Enterprise Business
Format:	Rack
Frecventa procesor	2.6 GHz
Media storage inclus:	Nu
Media storage suportat:	N/A
Tip Media storage :	HDD si SSD
Memorie RAM instalata:	32GB
Tip Memorie	DDR4
Numar porturi RJ-45:	4
HDMI	Nu
PCI Express slots version	2.0, 3.0
Tjunction	105 °C
PCI Express x8 (Gen 3.x) slots	2
Operating temperature (T-T)	0 – 40 °C
Product colour	Black, Grey
Operating relative humidity (H-H)	5 – 95%
On/off switch	Yes
Storage temperature (T-T)	-20 – 70 °C
Cables included	AC, LAN (RJ-45)
Ethernet LAN (RJ-45) ports	4
Weight	12.7 kg
Width	482 mm
Tip:	NAS
AC input voltage	100-240 V
Memory slots	4
Number of storage drives supported	18
Processor family	Intel® Xeon® D
Processor model	D-1622
Tcase	83 °C
Thermal Design Power (TDP)	40 W
Supported network protocols	FTP, SFTP, TFTP
LED indicators	HDD, LAN, SSD, Status
Noise level	56.9 dB
Operating system version	4.5.0
Power consumption (typical)	117.92 W
Depth	549.7 mm
Height	88.3 mm
Number of screws	112
Intel QuickAssist Technology	No
Maximum number of PCI Express lanes	32
Memory types supported by processor	DDR3-SDRAM, DDR4-SDRAM
Processor ARK ID	193687
Producator	QNAP
Garantie	24
