Name: LevelOne SFP-3001, 1.25Gbps Multi-mode SFP Transceiver, 550m, 850nm, 13.7 x - A.W.P.S Store
Brand: LEVELONE
SKU: SFP-3001
Price: 145.82 RON
Availability: OutOfStock

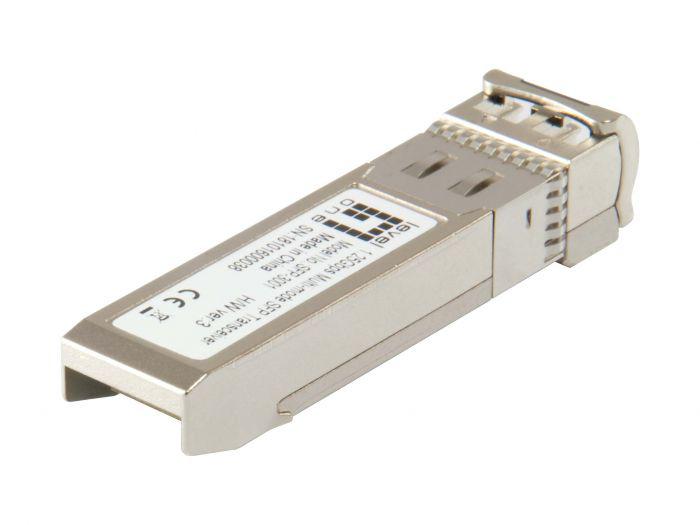

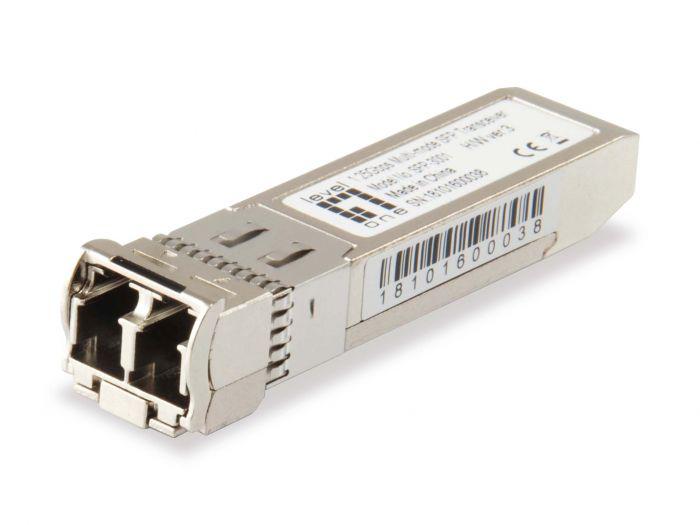

LevelOne SFP-3001, 1.25Gbps Multi-mode SFP Transceiver, 550m, 850nm, 13.7 x

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

LevelOne SFP-3001, 1.25Gbps Multi-mode SFP Transceiver, 550m, 850nm, 13.7 x 57 x 12 mm

Specificație: LevelOne SFP-3001, 1.25Gbps Multi-mode SFP Transceiver, 550m, 850nm, 13.7 x

Plug and Play	Yes
Hot-swap	Yes
Duplex system	Full
Maximum current	0.3 A
Fiber ports quantity	1
SFP transceiver type	Fiber optic
Multi-mode fiber (MMF) supported	Yes
Wavelength	850 nm
HDMI	Nu
RJ-45	Nu
Maximum transfer distance	550 m
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Maximum data transfer rate (2.4 GHz)	1250 Mbit/s
Fiber optic connector	LC
Tx power (min)	-9.5 dBmW
Tx power (max)	-3 dBmW
Networking standards	IEEE 802.3z
Input voltage	3.3 V
Maximum voltage	6 V
Safety	EN 60825-1
Single-mode fiber (SMF) supported	No
Interface type	SFP+
Quantity per pack	1 pc(s)
Storage temperature (T-T)	-40 – 85 °C
Operating relative humidity (H-H)	5 – 95%
Operating temperature (T-T)	0 – 70 °C
Package depth	20 mm
Package height	65 mm
Width	57 mm
Certification	CE, FCC
Weight	20 g
Harmonized System (HS) code	85369010
Depth	12 mm
Height	13.7 mm
Package width	106 mm
Package weight	35 g
Producator	LEVELONE
Garantie	24
