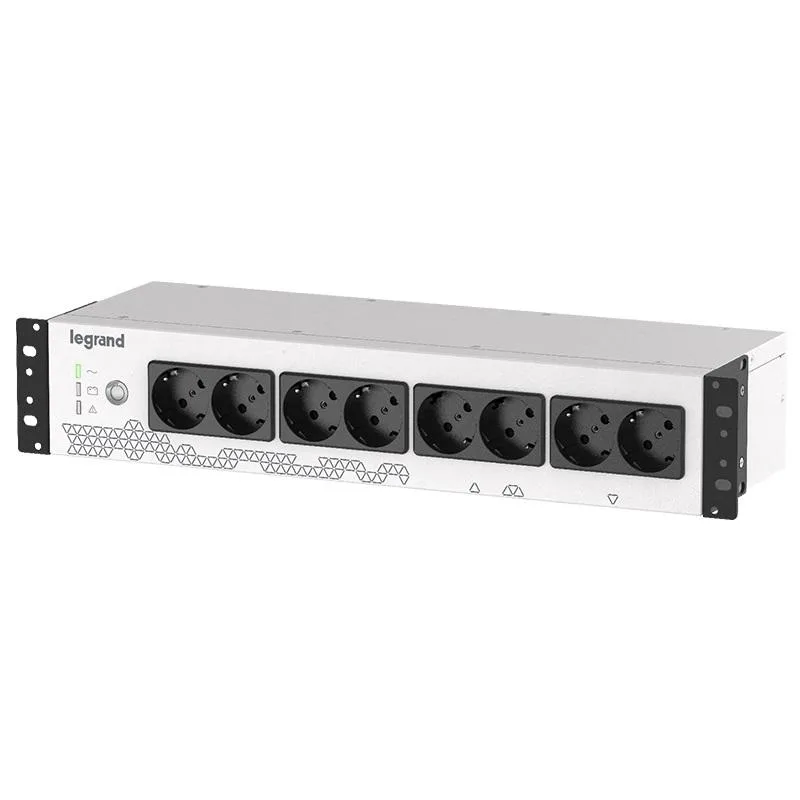

Keor PDU is a new UPS specifically designed for installation in 19-inch panels and racks. Its PDU style design with ultra compact dimensions provides 8 sockets with up to 15 minute autonomy in just 2 rack units.
Specificație: UPS Legrand Keor PDU monofazat – 800VA/480W – IN 1xIEC 10A OUT 8x Schuko – technologie off – line – conexiune USB HID
USB Port
Yes
Capacitate putere UPS
480W
Products per master (outer) case
1 pc(s)
Pallet net width
120 cm
Tip UPS:
Offline
Capacitate Rack:
2U
Ecran LCD:
Nu
Port USB
Da
Output operation voltage (min)
207 V
Output operation voltage (max)
253 V
Output frequency
50/60 Hz
Number of input phases
1
Number of output phases
1
Efficiency
98%
Output power factor
0.6
AC outlet types
C13 coupler
Power plug
C14 coupler
USB port type
USB Type-B
Waveform
Sine
Rack capacity
2U
Output voltage regulation
10%
Input frequency
45/65 Hz
Output frequency regulation
1 Hz
Potential-free output
No
Auto shut-off
No
Pallet net length
100 cm
Form factor
Rackmount
Input operation voltage (min)
160 V
Output power capacity
0.8 kVA
Output power
480 W
Input operation voltage (max)
290 V
Typical backup time at half load
10 min
UPS topology
Standby (Offline)
Battery capacity
9 Ah
Maximum current
10 A
Power protection features
Overdischarge, Overload, Short circuit
AC outlets quantity
16 AC outlet(s)
Number of type F outputs
8
Master (outer) case width
159 mm
Master (outer) case length
528 mm
Master (outer) case height
255 mm
Pallet net height
102 cm
Pallet net weight
306.6 kg
Master (outer) case gross weight
6.39 kg
Operating temperature (T-T)
0 – 40 °C
Number of batteries supported
1
Power source type
AC
Battery technology
Sealed Lead Acid (VRLA)
Product colour
Black, White
Depth
150 mm
Compliance certificates
CE
Operating relative humidity (H-H)
0 – 95%
Sustainability compliance
Yes
Width
88 mm
Harmonized System (HS) code
85078000
Weight
5.5 kg
Noise level
40 dB
Package height
440 mm
Height
440 mm
Products per pallet
48 pc(s)
Package width
88 mm
Certification
EN 62040-1, EN 62040-2
Package depth
5.81 mm
Package weight
6.07 kg
Producator
LEGRAND
Garantie
24
