UPS APC Smart – UPS SRT online dubla – conversie 5000VA / 4500W 6 conectori C13 4 conectori C19 extended runtime

APC Smart-UPS SRT 5000VA 230V

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, Temperature probe, USB cable, Warranty card, Web/SNMP management card

Output power capacity

4.5kWatts / 5.0kVA

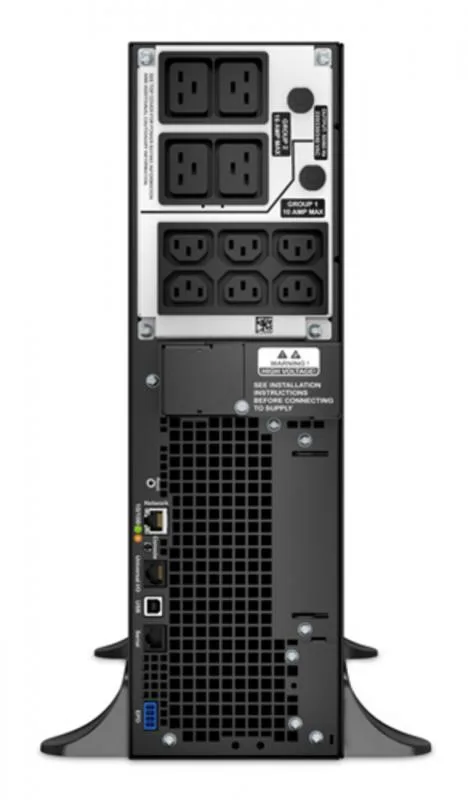

Output Connections

(4) IEC 60320 C19 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(6) IEC 60320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

Hard wire 3-wire (1P + N + E)

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Specificație: UPS APC Smart – UPS SRT online dubla – conversie 5000VA / 4500W 6 conectori C13 4 conectori C19 extended runtime

Rackable	No
USB Port	Yes
Quick installation guide	Yes
Operating altitude	0 – 3000 m
Storage relative humidity (H-H)	0 – 95%
Temperature sensor	Yes
Sustainability certificates	ENERGY STAR
Surge protection	Yes
Audible alarm(s)	Yes
Tip UPS:	Online
Form factor	Rackmount/Tower
Capacitate putere UPS	4500W
Capacitate Rack:	None
Ecran LCD:	Da
Port USB	Da
Serial interface	Yes
Waveform	Sine
Output frequency regulation	50/60 Hz
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes
Non-operating altitude	0 – 15000 m
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Emergency Power Off (EPO)	Yes
AC outlet types	C13 coupler, C19 coupler
Auto-restart	Yes
Number of output IEC jumpers	2
SmartSlot	Yes
UPS topology	Double-conversion (Online)
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Input frequency	40 – 70 Hz
Surge energy rating	480 J
Crest factor	3:1
Power plug	Hardwire
Serial interface type	RJ-45
Typical backup time at full load	4 min
Output power capacity	5 kVA
Output power	4500 W
Efficiency	94.1%
Battery capacity	845 VAh
Typical backup time at half load	11.8 min
AC outlets quantity	12 AC outlet(s)
Total carbon footprint (kg of CO2e)	8386.06
UPS-Management	No
Operating temperature (T-T)	0 – 40 °C
Software CD	Yes
Battery technology	Sealed Lead Acid (VRLA)
Operating relative humidity (H-H)	0 – 95%
Warranty card	Yes
Harmonized System (HS) code	85078000
Display type	LCD
LED indicators	Status
Battery recharge time	1.5 h
Height	43.2 mm
Battery life (max)	5 year(s)
Storage temperature (T-T)	-15 – 45 °C
Cables included	USB cable
International Protection (IP) code	IP20
Noise level	55 dB
Certification	REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Width	130 mm
Depth	719 mm
Weight	54.4 kg
Package width	610 mm
Package depth	960 mm
Package height	330 mm
Package weight	63.6 kg
Products per pallet	6 pc(s)
Packaging content	Comms cable Removable support feet Web/SNMP Management Card
Producator	APC
Garantie	36
