UPS APC Smart – UPS SRT online dubla – conversie 3000VA / 2700W 8conectori C13 2 conectori C19 extended runtime – 3

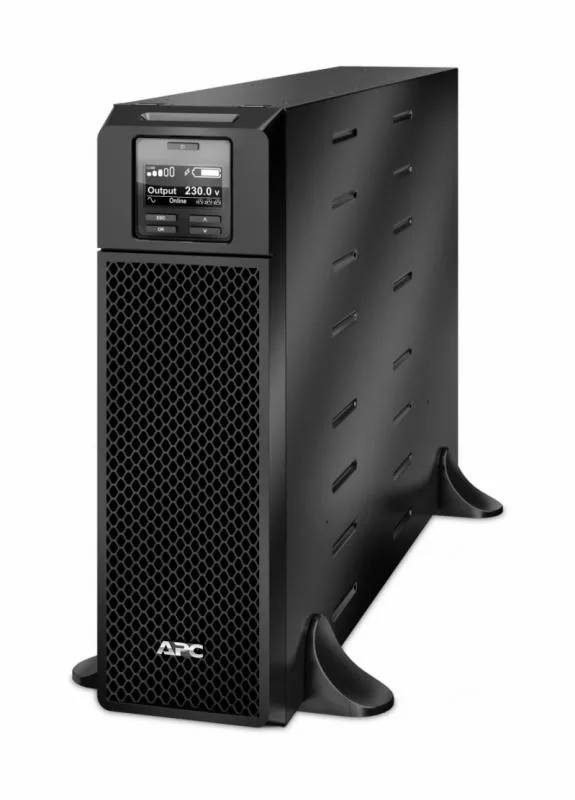

APC Smart-UPS SRT 3000VA 230V

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card

Output power capacity

2.7kWatts / 3.0kVA

Output Connections

(8) IEC 60320 C13 (Battery Backup)

(2) IEC 320 C19 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(2) IEC 60320 C19 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P

Cord Length

2.4meters

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Specificație: UPS APC Smart – UPS SRT online dubla – conversie 3000VA / 2700W 8conectori C13 2 conectori C19 extended runtime – 3

Rackable	No
USB Port	Yes
Capacitate putere UPS	2700W
Quick installation guide	Yes
Operating altitude	0 – 3000 m
Storage relative humidity (H-H)	0 – 95%
Web-based management	Yes
Rack mount kit	Yes
Surge protection	Yes
Audible alarm(s)	Yes
Tip UPS:	Online
Capacitate Rack:	None
Ecran LCD:	Da
Port USB	Da
Output frequency	50/60 Hz
Serial interface	Yes
Waveform	Sine
Output frequency regulation	50/60 Hz
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes
Form factor	Tower
Non-operating altitude	0 – 15000 m
Sustainability certificates	ENERGY STAR, Green Premium
Output power	2700 W
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Emergency Power Off (EPO)	Yes
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Output power capacity	3 kVA
Auto-restart	Yes
Number of output IEC jumpers	2
SmartSlot	Yes
Output voltage	230 V
UPS topology	Double-conversion (Online)
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Input frequency	40 – 70 Hz
Crest factor	3:1
AC outlets quantity	10 AC outlet(s)
Serial interface type	RJ-45
Bracket	Yes
Typical backup time at full load	4 min
Typical backup time at half load	11.8 min
Surge energy rating	340 J
Efficiency	93.5%
Battery capacity	505 VAh
Total carbon footprint (kg of CO2e)	5053.66
UPS-Management	Yes
Operating temperature (T-T)	0 – 40 °C
Number of batteries supported	1
Software CD	Yes
Battery recharge time	3 h
Battery technology	Sealed Lead Acid (VRLA)
Operating relative humidity (H-H)	0 – 95%
LED indicators	Yes
Warranty card	Yes
Harmonized System (HS) code	85078000
Display type	LCD
Height	43.2 mm
Width	85 mm
Battery life (max)	5 year(s)
Storage temperature (T-T)	-15 – 45 °C
Cables included	USB cable
International Protection (IP) code	IP20
Package height	246 mm
Noise level	55 dB
Cable length	2.44 m
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Depth	63.5 mm
Weight	31.3 kg
Package width	599 mm
Package depth	871 mm
Package weight	36.7 kg
Packaging content	Country-specific detachable power cord Removable support feet
Producator	APC
Garantie	36
