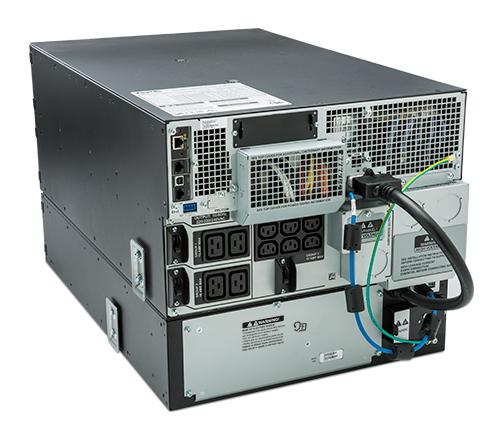

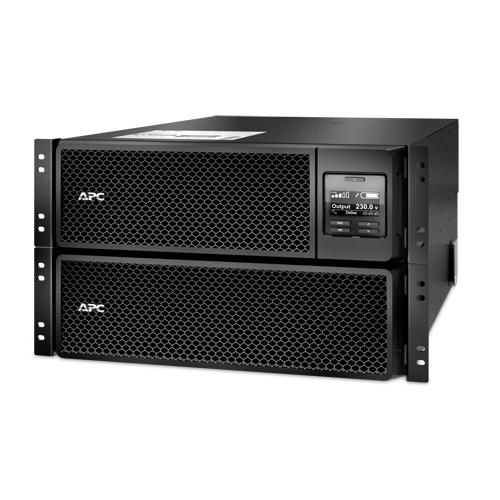

UPS APC Smart-UPS SRT online dubla-conversie 10kVA / 10kW 6

Name: UPS APC Smart-UPS SRT online dubla-conversie 10kVA / 10kW 6 - A.W.P.S Store
Brand: APC
SKU: SRT10KRMXLI
Price: 41787.53 RON
Availability: InStock

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Prețul inițial a fost: 57,098.35 lei.Prețul curent este: 41,787.53 lei.

Doar 2 rămase în stoc

SKU: SRT10KRMXLI Categorie UPS

APC Smart-UPS SRT 10000VA RM 230V

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card

Output power capacity

10.0kWatts / 10.0kVA

Rack Height

Output Connections

(3) IEC Jumpers (Battery Backup)

(6) IEC 320 C13 (Battery Backup)

(1) Hard Wire 3-wire (H N + G) (Battery Backup)

(6) IEC 60320 C13 (Battery Backup)

(4) IEC 60320 C19 (Battery Backup)

(4) IEC 320 C19 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V, 400V 3PH

Input Connections

Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E)

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Specificație: UPS APC Smart-UPS SRT online dubla-conversie 10kVA / 10kW 6

Rackable	Yes
USB Port	Yes
Capacitate putere UPS	10000W
Quick installation guide	Yes
Operating altitude	0 – 3000 m
Storage relative humidity (H-H)	0 – 95%
Temperature sensor	Yes
Sustainability certificates	ENERGY STAR
Rack mount kit	Yes
Surge protection	Yes
Audible alarm(s)	Yes
Tip UPS:	Online
Capacitate Rack:	6U
Ecran LCD:	Da
Port USB	Da
Number of output phases	1
Serial interface	Yes
Waveform	Sine
Output frequency regulation	50/60 Hz
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes
Non-operating altitude	0 – 15000 m
Nominal output voltage	230 V
Nominal input voltage	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Emergency Power Off (EPO)	Yes
AC outlet types	C13 coupler, C19 coupler
Form factor	Rackmount/Tower
Auto-restart	Yes
SmartSlot	Yes
UPS topology	Double-conversion (Online)
Input operation voltage (min)	100 V
Input frequency	40 – 70 Hz
Surge energy rating	480 J
Crest factor	3:1
Power plug	Hardwire
AC outlets quantity	10 AC outlet(s)
Serial interface type	RJ-45
Bracket	Yes
Output voltage Total Harmonic Distortion (THD)	3%
Rack capacity	6U
Output power capacity	10 kVA
Output power	10000 W
Input operation voltage (max)	476 V
Efficiency	94.6%
Number of output IEC jumpers	3
Battery capacity	1805 VAh
Typical backup time at full load	3.8 min
Typical backup time at half load	11.5 min
Total carbon footprint (kg of CO2e)	22873.91
Interface	RJ-45 10/100 Base-T
UPS-Management	Yes
Operating temperature (T-T)	0 – 40 °C
Software CD	Yes
Battery recharge time	3 h
Battery technology	Sealed Lead Acid (VRLA)
Operating relative humidity (H-H)	0 – 95%
LED indicators	Yes
Warranty card	Yes
Harmonized System (HS) code	85078000
Display type	LCD
Battery life (max)	5 year(s)
Storage temperature (T-T)	-15 – 45 °C
Cables included	USB cable
Noise level	55 dB
Package width	600 mm
Packaging content	Web/SNMP Management Card
Depth	71.5 mm
Package depth	1000 mm
Height	2.63 mm
Package height	461 mm
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH
Weight	111.8 kg
Package weight	130 kg
Width	43.2 mm
Producator	APC
Garantie	36
