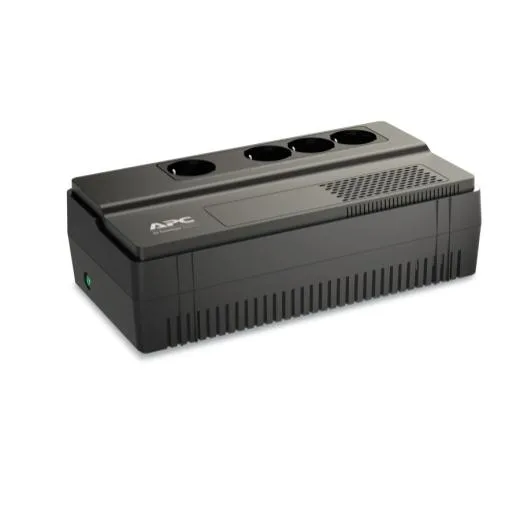

UPS APC BV800I – GR 800 VA Schuko Line – interactive

Output power capacity

450 Watts / 800VA

Output Connections

(4) Schuko CEE 7 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

Schuko CEE 7/7P

Cord Length

1.5meters

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Unsynchronised

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6 ms typical : 10 ms maximum

Specificație: UPS APC BV800I – GR 800 VA Schuko Line – interactive

Surge protection	Yes
Audible alarm(s)	Yes
Tip UPS:	Line Interactive
Capacitate Rack:	None
Ecran LCD:	Nu
Port USB	Nu
UPS topology	Line-Interactive
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Output frequency	50/60 Hz
Number of input phases	1
Number of output phases	1
Waveform	Sine
AC outlet types	Type F
Cold start	Yes
Nominal output voltage	230 V
Automatic Voltage Regulation (AVR)	Yes
Surge energy rating	156 J
Transfer time (Line Mode to Battery Mode)	6 ms
Battery capacity	7 Ah
Form factor	Compact
AC outlets quantity	4 AC outlet(s)
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
Output power capacity	0.8 kVA
Operating altitude	0 – 1968.3 m
Output power	450 W
Capacitate putere UPS	450W
Operating temperature (T-T)	0 – 40 °C
Operating relative humidity (H-H)	0 – 90%
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	12 V
Depth	305 mm
Width	160 mm
LED indicators	Yes
Harmonized System (HS) code	85078000
Battery recharge time	8 h
Noise level	40 dB
Cable length	1.52 m
Height	92 mm
Package height	237 mm
Certification	CE REACH
Package width	373 mm
Package depth	143 mm
Weight	5.3 kg
Package weight	5.6 kg
Producator	APC
Garantie	24
