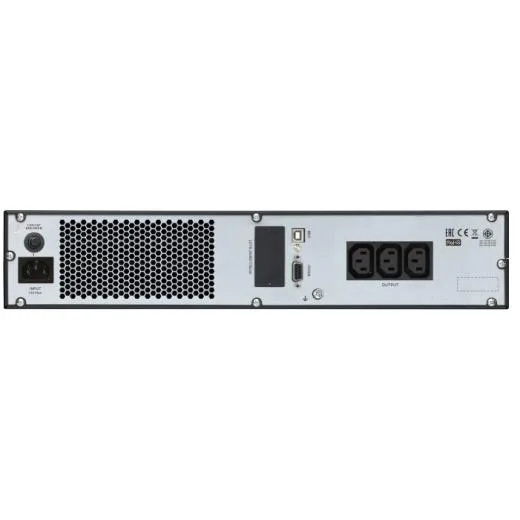

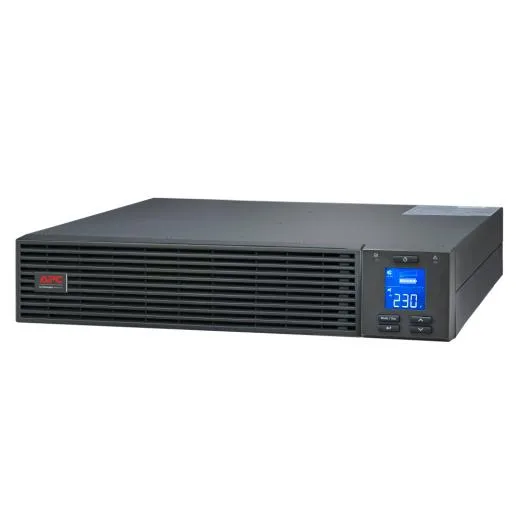

APC Easy UPS On – Line SRV 1000VA RM 230V with Rail Kit

APC Easy UPS On-Line SRV 1000VA RM 230V with Rail Kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Includes: Basic UPS signalling RS-232 cable, CD with software, Rack mounting support rails, USB cable, User manual

Output power capacity

800 Watts / 1.0kVA

Rack Height

Output Connections

(3) IEC 60320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

IEC 60320 C14

Cord Length

1.5meters

Specificație: APC Easy UPS On – Line SRV 1000VA RM 230V with Rail Kit

USB Port	Yes
Storage relative humidity (H-H)	0 – 95%
USB 2.0 ports quantity	1
Serial ports quantity	1
ECO mode	Yes
Audible alarm(s)	Yes
Input operation voltage (max)	280 V
Output frequency	50/60 Hz
Power plug	C14 coupler
Serial interface	Yes
Waveform	Sine
Automatic battery test	Yes
Nominal output voltage	230 V
Nominal input voltage	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Serial interface type	RS-232
SmartSlot	Yes
Output power capacity	1 kVA
Port USB	Nu
Capacitate Rack:	None
UPS topology	Double-conversion (Online)
AC outlets quantity	3 AC outlet(s)
Tip UPS:	Online
Ecran LCD:	Da
Input operation voltage (min)	160 V
Output voltage Total Harmonic Distortion (THD)	3%
Surge energy rating	600 J
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
Non-operating altitude	0 – 14763.6 m
Operating altitude	0 – 9000 m
Form factor	Rackmount
Output power	800 W
Capacitate putere UPS	1000W
Battery width	45.5 cm
Battery depth	55.1 cm
Battery height	21.8 cm
Operating temperature (T-T)	0 – 40 °C
Height	86 mm
Operating relative humidity (H-H)	0 – 95%
LED indicators	Yes
Harmonized System (HS) code	85078000
Display type	LCD
Weight	1.1 kg
Storage temperature (T-T)	-20 – 50 °C
Depth	312 mm
Certification	CE, IEC 62040-1-1, IEC 62040-1-2 REACH
Width	437 mm
Battery weight	13.1 kg
Producator	APC
Garantie	24
