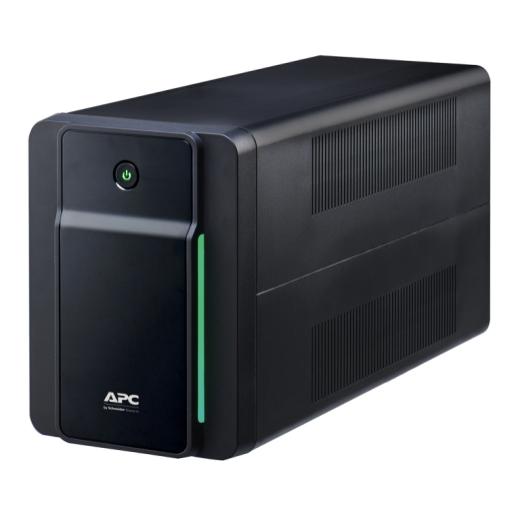

APC Back – UPS 1200VA – 230V – AVR – IEC Sock

APC Back-UPS 1200VA, 230V, AVR, IEC Sockets

Battery Backup & Surge Protector for Electronics and Computers

Includes: User manual

Max Configurable Power (Watts)

650 Watts / 1.2kVA

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6 ms typical : 10 ms maximum

Output Connections

(6) IEC 60320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

IEC 60320 C14

Cord Length

1.2meters

Specificație: APC Back – UPS 1200VA – 230V – AVR – IEC Sock

Rackable	No
USB Port	Yes
Operating altitude	0 – 3000 m
USB 2.0 ports quantity	1
Capacitate putere UPS	600W
Response time	6 ms
Audible alarm(s)	Yes
Tip UPS:	Line Interactive
Form factor	Compact
Capacitate Rack:	None
Ecran LCD:	Nu
Port USB	Nu
UPS topology	Line-Interactive
Output frequency	50/60 Hz
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	6 AC outlet(s)
USB port type	USB Type-B
Waveform	Sine
Input operation voltage (max)	300 V
Automatic Voltage Regulation (AVR)	Yes
Output voltage regulation	10%
Typical backup time at full load	1 min
Output operation voltage (max)	230 V
Output operation voltage (min)	230 V
Input operation voltage (min)	140 V
Output frequency regulation	0.5 Hz
Surge energy rating	273 J
Audible alarm modes	Low battery alarm
Typical backup time at half load	5 min
Input power factor	0.54
Output power capacity	1.2 kVA
Output power	650 W
UPS-Management	No
Operating temperature (T-T)	0 – 40 °C
Battery technology	Sealed Lead Acid (VRLA)
Width	140 mm
Ethernet LAN (RJ-45) ports	2
Height	190 mm
Operating relative humidity (H-H)	0 – 95%
LED indicators	Yes
Harmonized System (HS) code	85078000
Cable length	1.2 m
Package width	235 mm
Cables included	Input power cable
Battery recharge time	8 h
Storage temperature (T-T)	-15 – 40 °C
Depth	390 mm
Noise level	40 dB
Package depth	495 mm
Package height	297 mm
Battery life (max)	2 year(s)
International Protection (IP) code	IP20
Certification	CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Weight	7.6 kg
Package weight	8.6 kg
Producator	APC
Garantie	24
