Name: Switch D-Link DGS-1210-10P, 8 port, 10/100/1000 Mbps - A.W.P.S Store
Brand: D-LINK
SKU: DGS-1210-10P
Price: 768.95 RON
Availability: InStock

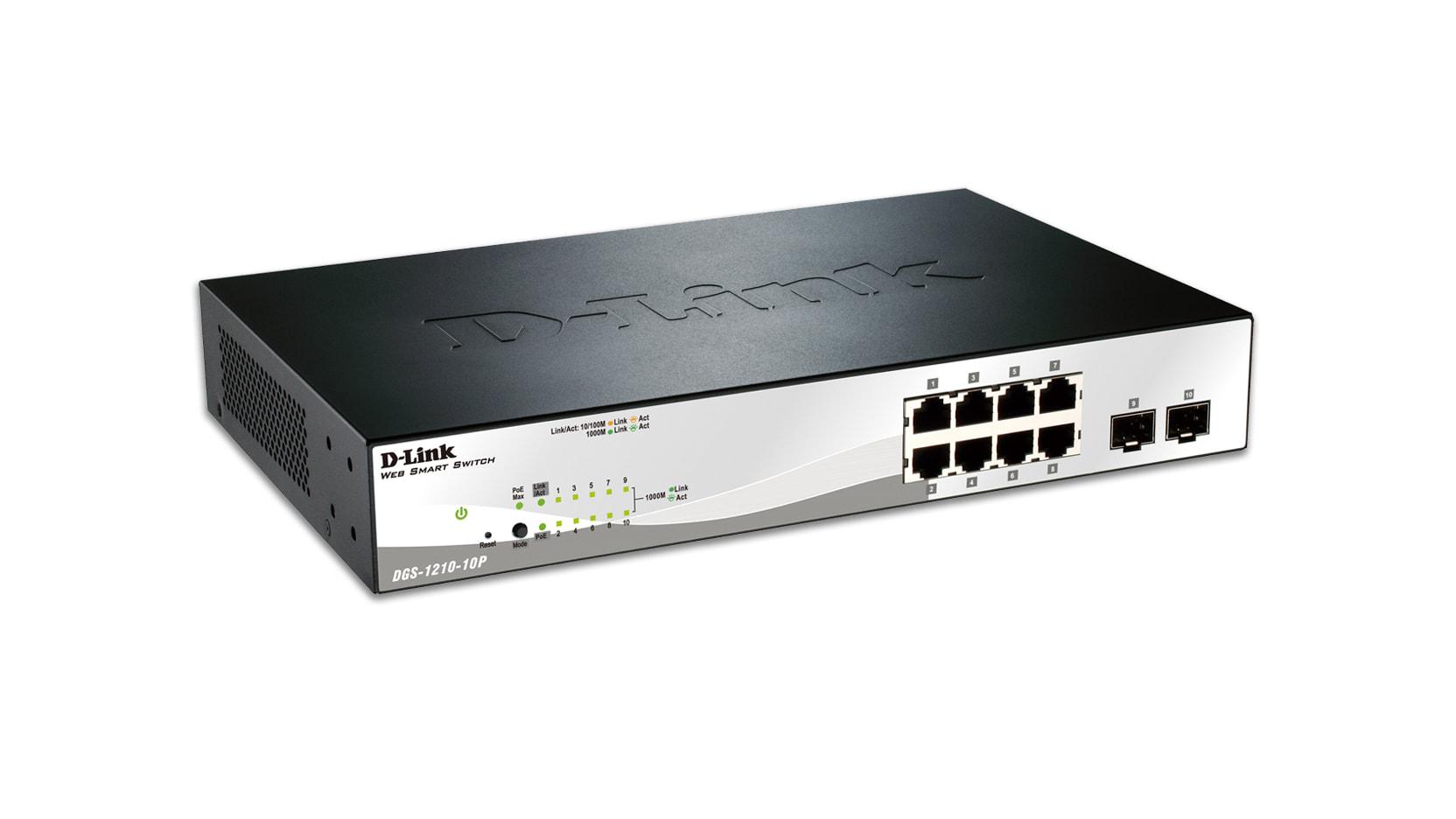

Switch D-Link DGS-1210-10P, 8 port, 10/100/1000 Mbps

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Numar porturi

8x RJ-45

Porturi

8x RJ45
2x SFP

Viteza de transfer

10/100/1000 Mbps

Management

Putere consumata

109.6 W

Alimentare

100-240V AC

PoE

PoE Budget

78 W

Dimensiuni

280 x 180 x 44 mm

Greutate

1.41 Kg

Montare in rack

Functii LED

Power, Fan Error, Link/Activity/Speed

Memorie Buffer

1.5 MB

Adrese MAC

16K

Metoda forwarding

14.88 Mpps

Routing/Switch Fabric

40 Gbps

Standarde

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af

Specificație: Switch D-Link DGS-1210-10P, 8 port, 10/100/1000 Mbps

LAN-Port-Type	Gigabit
Stackable	Yes
Link aggregation	Yes
Storage relative humidity (H-H)	0 – 95%
Pallet gross width	120 cm
Power over Ethernet (PoE)	Yes
Pallet gross length	110 cm
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Rack mounting	Yes
Quality of Service (QoS) support	Yes
Web-based management	Yes
Switch type	Managed
Port mirroring	Yes
Form factor	1U
MAC address filtering	Yes
Access Control List (ACL)	Yes
Power connector	DC-in jack
Power over Ethernet (PoE) ports quantity	8
Switch layer	L2
Basic switching RJ-45 Ethernet ports quantity	8
Auto MDI/MDI-X	Yes
Flow control support	Yes
Master (outer) cases per pallet (air)	54 pc(s)
Products per pallet (sea)	270 pc(s)
Installed SFP modules quantity	0
10G support	No
Multicast support	Yes
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Store-and-forward	Yes
Gigabit Ethernet (copper) ports quantity	8
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Packet buffer memory	0.512 MB
Cable types supported	Cat5, Cat5e
Mean time between failures (MTBF)	729258 h
Power over Ethernet plus (PoE+) ports quantity	2
Total Power over Ethernet (PoE) budget	78 W
Heat dissipation	373.96 BTU/h
Shipping (inner) case height	31.7 cm
Shipping (inner) case width	34.6 cm
Shipping (inner) case length	38.2 cm
Shipping (inner) case net weight	11.1 kg
Pallet gross weight (air)	449.5 kg
Products per pallet (air)	180 pc(s)
Pallet height (air)	140.3 cm
Pallet gross weight (sea)	662 kg
Pallet height (sea)	2.04 m
Shipping (inner) case gross weight	11.8 kg
Porturi RJ 45	5-10
Viteza Transfer	Gigabit
Porturi SFP	1-2
Montare in Rack	Da
SFP module slots quantity	2
Management	Da
PoE	Da
Harmonized System (HS) code	85176990
Operating relative humidity (H-H)	0 – 95%
LED indicators	Yes
Width	280 mm
Storage temperature (T-T)	-20 – 70 °C
Package weight	2.21 kg
Package depth	331 mm
Package height	72 mm
Depth	126 mm
Noise level	0 dB
Products per shipping (inner) case	5 pc(s)
Weight	950 g
Power consumption (max)	80.6 W
Package width	288 mm
Certification	EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
Producator	D-LINK
Garantie	60
