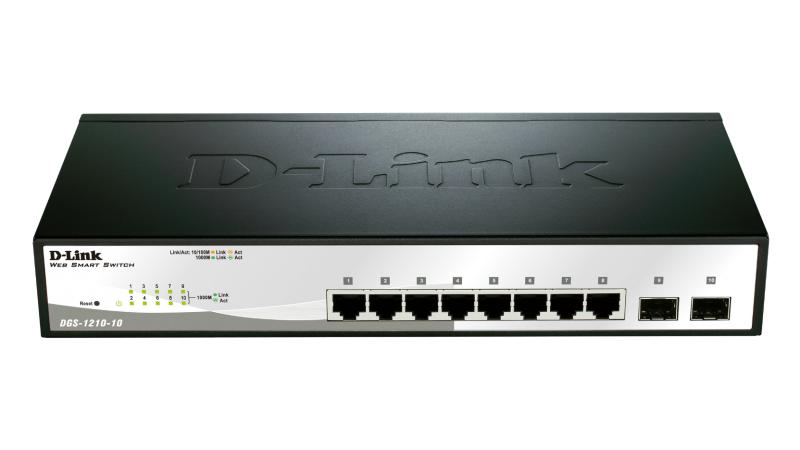

Switch D-Link DGS-1210-10, 8 port, 10/100/1000 Mbps

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Numar porturi	8x RJ-45
Porturi	8x RJ45 2x Combo(RJ45/SFP)
Viteza de transfer	10/100/1000 Mbps
Management	Da
Putere consumata	13.59 W
Alimentare	100-240V AC
Dimensiuni	280 x 126 x 44 mm
Greutate	1.54 Kg
Montare in rack	1U
Functii LED	Power, Fan Error, Link/Activity/Speed
Memorie Buffer	1.5 MB
Adrese MAC	16K
Metoda forwarding	14.88 Mpps
Routing/Switch Fabric	20 Gbps
Standarde	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af
Altele	2x combo 10/100/1000BASE-T/SFP

Specificație: Switch D-Link DGS-1210-10, 8 port, 10/100/1000 Mbps

LAN-Port-Type	Gigabit
Layer	Unmanaged
Stackable	Yes
Rackable	Yes
LAN Ports	8
Redundant-PSU	No
Storage relative humidity (H-H)	5 – 95%
Jumbo frames support	Yes
Link aggregation	Yes
Pallet gross width	120 cm
Pallet gross length	110 cm
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Rack mounting	Yes
Quality of Service (QoS) support	Yes
Web-based management	Yes
Switch type	Managed
Port mirroring	Yes
Form factor	1U
MAC address filtering	Yes
Access Control List (ACL)	Yes
Power connector	DC-in jack
Power over Ethernet (PoE)	No
Switch layer	L2
Basic switching RJ-45 Ethernet ports quantity	8
Auto MDI/MDI-X	Yes
Flow control support	Yes
IGMP snooping	Yes
Auto-negotiation	Yes
Master (outer) cases per pallet (air)	54 pc(s)
Products per pallet (sea)	270 pc(s)
Installed SFP modules quantity	0
Configuring Location Settings (CLI)	Yes
10G support	No
Spanning tree protocol	Yes
Multicast support	Yes
MAC address table	8000 entries
Jumbo frames	9216
Loop protection	Yes
ARP inspection	Yes
MIB support	Y
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Store-and-forward	Yes
Packet buffer memory	0.512 MB
Head-of-line (HOL) blocking	Yes
Heat dissipation	373.96 BTU/h
Shipping (inner) case height	31.7 cm
Shipping (inner) case width	34.6 cm
Shipping (inner) case length	38.2 cm
Products per pallet (air)	180 pc(s)
Pallet height (air)	140.3 cm
Pallet height (sea)	2.04 m
Mean time between failures (MTBF)	205249 h
Shipping (inner) case net weight	10.4 kg
Pallet gross weight (air)	425.5 kg
Pallet gross weight (sea)	625.9 kg
Shipping (inner) case gross weight	11.1 kg
Porturi RJ 45	5-10
Viteza Transfer	Gigabit
Porturi SFP	1-2
Montare in Rack	Da
SFP module slots quantity	2
Management	Da
PoE	Nu
Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-10 – 70 °C
Product colour	Black, Grey
Harmonized System (HS) code	85176990
Package weight	2.08 kg
Width	280 mm
Weight	980 g
Package height	70 mm
Operating relative humidity (H-H)	10 – 95%
Package depth	325 mm
Depth	126 mm
Products per shipping (inner) case	5 pc(s)
Package width	28.6 mm
Producator	D-LINK
Garantie	60
