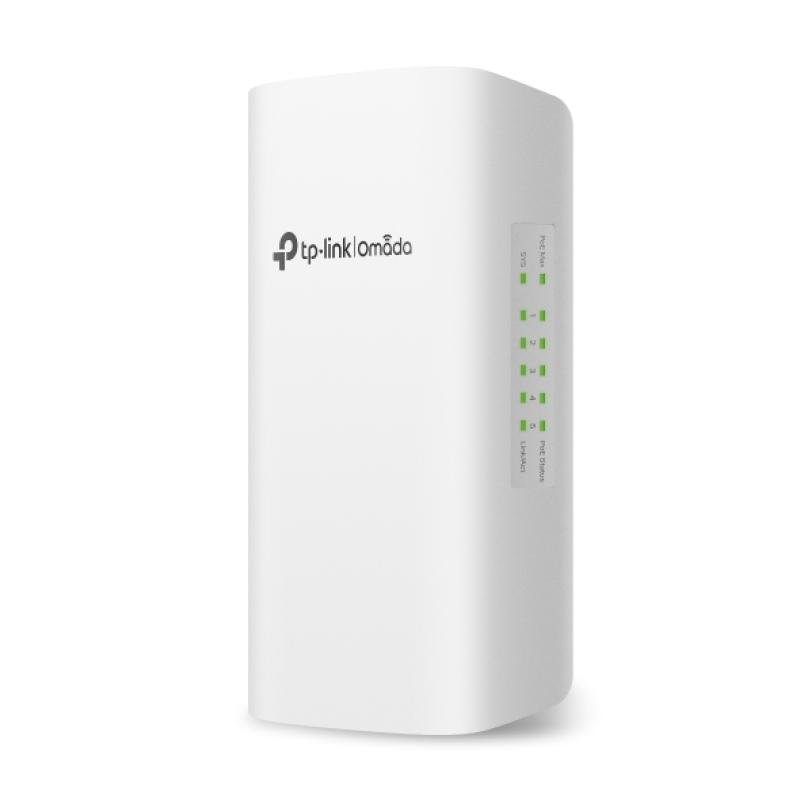

5-Port OMADA Gigabit Smart Switch with 1-Port PoE++ in and

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ in and 4-Port PoE+ out PORT: 1× Gigabit PoE++ input Ports, 4× Gigabit PoE+ output Ports SPEC: 802.3at/af, max 64 W PoE Power (90W PoE++ input), plastic case, pole-mounting/wall-mounting FEATURE: Integration with Omada SDN Controller, IP55 Weatherproof, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6

Specificație: 5-Port OMADA Gigabit Smart Switch with 1-Port PoE++ in and

Stackable	No
LAN-Port-Type	FastEthernet
Storage relative humidity (H-H)	5 – 90%
Password protection	Yes
Jumbo frames support	Yes
Link aggregation	Yes
Power supply included	Yes
Power over Ethernet (PoE)	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Web-based management	Yes
Switch type	Managed
Basic switching RJ-45 Ethernet ports quantity	10G Ethernet (100/1000/10000)
10G support	Yes
Port mirroring	Yes
Security algorithms	802.1x RADIUS
MAC address filtering	Yes
Access Control List (ACL)	Yes
Rack mounting	No
Flow control support	Yes
IGMP snooping	Yes
DHCP features	DHCP relay, DHCP server
Form factor	Desktop
Spanning tree protocol	Yes
Multicast support	Yes
MAC address table	8000 entries
Number of VLANs	4000
ARP inspection	Yes
MIB support	Y
Packet buffer memory	4.1 MB
Virtual LAN features	Voice VLAN
Switching capacity	10 Gbit/s
IP-MAC-Port binding	Yes
Authentication	MAC-based authentication, Port-based authentication
Cable types supported	Cat5, Cat5e
IPv6 routes	32
Switch layer	L2/L2+
Jumbo frames	9
10G Ethernet (copper) ports quantity	4
Multicast MAC address table	8000 entries
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T
IPv4 routes	32
Packet forwarding rate (1 Gbps)	7440 pps
Access Control List (ACL) IPv4 entries	32
IPv4 multicast entries	511
IPv6 multicast entries	511
IPv4 & IPv6 features	Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert
Power over Ethernet (PoE) power per port	64 W
Heat dissipation	243.99 BTU/h
Porturi RJ 45	1-4
Viteza Transfer	Gigabit
Porturi SFP	N/A
Montare in Rack	Nu
Management	Da
PoE	Nu
Operating relative humidity (H-H)	10 – 90%
Product colour	White
Depth	100 mm
Storage temperature (T-T)	-40 – 70 °C
Sustainability compliance	Yes
Width	170 mm
Compliance certificates	CE, RoHS
Cloud-managed	Yes
Power source	DC/PoE
Operating temperature (T-T)	-40 – 60 °C
Height	38.5 mm
Power consumption (typical)	71.5 W
Producator	TP-LINK
Garantie	36
