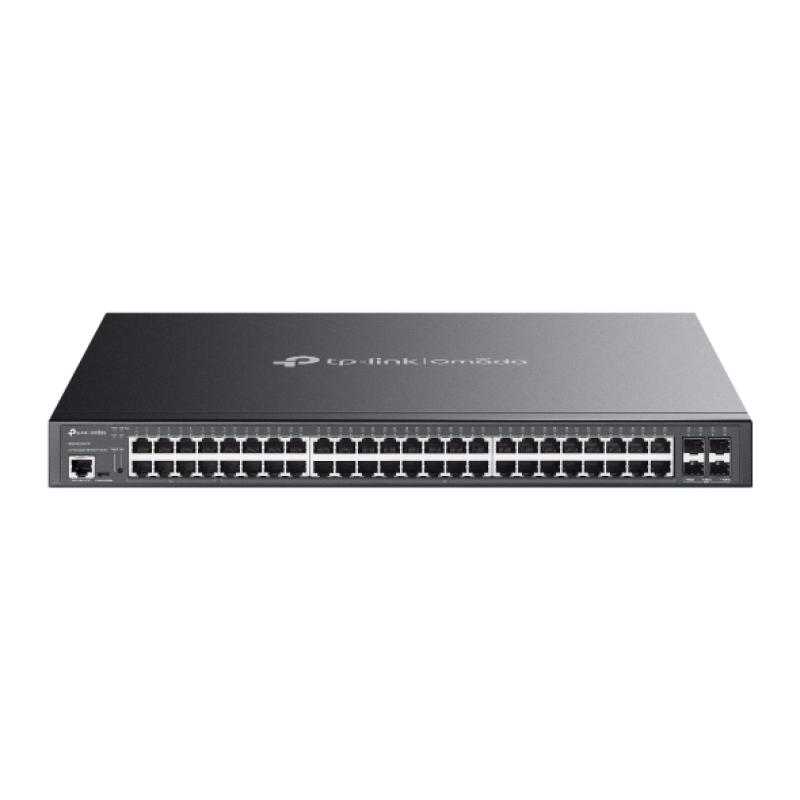

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40- Port PoE+ & 8-Port PoE++ PORT: 40× Gigabit PoE+ Ports, 8×Gigabit PoE++ Ports (max 90W/port), 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 750 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

Specificație: Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch

Layer	Layer-2
Stackable	No
Rackable	Yes
LAN-Port-Type	Gigabit
Redundant-PSU	Yes
Storage relative humidity (H-H)	5 – 90%
Jumbo frames support	Yes
Link aggregation	Yes
Power supply included	Yes
Power over Ethernet (PoE)	Yes
Number of fans	3 fan(s)
Reset button	Yes
Rack mounting	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
Switch type	Managed
10G support	Yes
Port mirroring	Yes
Form factor	1U
MAC address filtering	Yes
Access Control List (ACL)	Yes
Switch layer	L2
Flow control support	Yes
Rate limiting	Yes
IGMP snooping	Yes
Configuring Location Settings (CLI)	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
Multicast support	Yes
Jumbo frames	9000
MAC address table	16000 entries
SSH/SSL support	Yes
Basic switching RJ-45 Ethernet ports quantity	48
ARP inspection	Yes
BPDU filtering/protection	Yes
Power over Ethernet (PoE) power per port	30 W
Switching capacity	176 Gbit/s
Store-and-forward	Yes
Power connector	AC-in jack
Packet buffer memory	12 MB
Head-of-line (HOL) blocking	Yes
Static port security	Yes
IP-MAC-Port binding	Yes
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Forwarding rate	130.9 Mpps
DHCP features	DHCP client, DHCP relay, DHCP server
Authentication	Auto VLAN, Guest VLAN
Heat dissipation	2169.2 BTU/h
Porturi RJ 45	28+
Viteza Transfer	Gigabit
Porturi SFP	3-4
Montare in Rack	Da
SFP module slots quantity	4
Console port	RJ-45/micro-USB
LAN Ports	24
Power over Ethernet plus (PoE+) ports quantity	40
Management	Managed
PoE	Yes
Total Power over Ethernet (PoE) budget	750 W
Product colour	Black
Operating temperature (T-T)	0 – 40 °C
Quick start guide	Yes
Cables included	AC
Operating relative humidity (H-H)	10 – 90%
Storage temperature (T-T)	-40 – 70 °C
LED indicators	Yes
Power source	AC
Depth	330 mm
AC input frequency	50/60 Hz
Certification	CE, FCC, RoHS
Cloud-managed	Yes
Width	440 mm
Height	44 mm
Power consumption (max)	635.7 W
Producator	TP-LINK
Garantie	60
