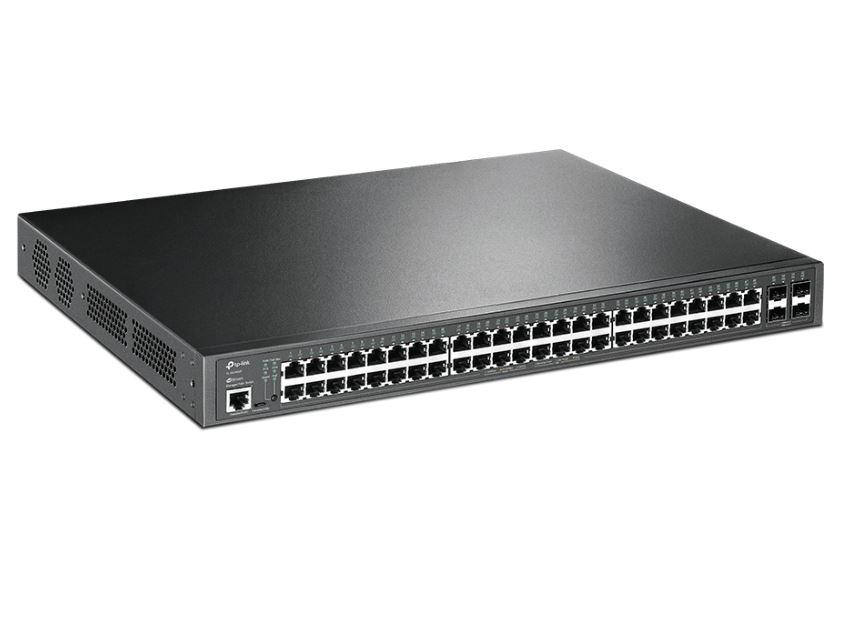

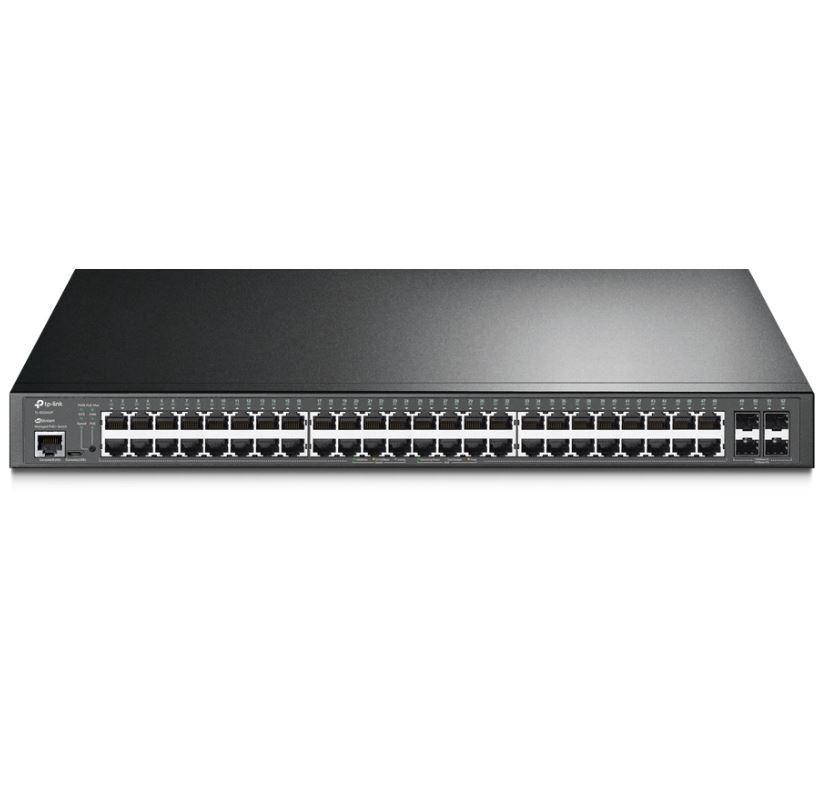

Jetstream™ 52 – Port Gigabit L2+ Managed Switch with 48 – Port PoE+

„JetStream™ 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ PORT: 48× Gigabit PoE+ Ports, 4× Gigabit SFP Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 384 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

Specificație: Jetstream™ 52 – Port Gigabit L2+ Managed Switch with 48 – Port PoE+

LAN-Port-Type	Gigabit
Storage relative humidity (H-H)	5 – 90%
Password protection	Yes
Jumbo frames support	Yes
Link aggregation	Yes
Power supply included	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Yes
Number of fans	3 fan(s)
Reset button	Yes
Rack mounting	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Static route	Yes
Web-based management	Yes
System event log	Yes
Switch type	Managed
Port mirroring	Yes
Form factor	1U
Policy-based routing	Yes
Access Control List (ACL)	Yes
Flow control support	Yes
Rate limiting	Yes
IGMP snooping	Yes
Installed SFP modules quantity	0
10G support	No
Broadcast storm control	Yes
Spanning tree protocol	Yes
Multicast support	Yes
Jumbo frames	9000
Active link detection	Yes
IP routing	Yes
Number of VLANs	4000
MAC address table	16000 entries
SSH/SSL support	Yes
Loop protection	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Basic switching RJ-45 Ethernet ports quantity	48
Switching capacity	104 Gbit/s
ARP inspection	Yes
BPDU filtering/protection	Yes
Power over Ethernet (PoE) power per port	30 W
Store-and-forward	Yes
Power connector	AC-in jack
Packet buffer memory	12 MB
Head-of-line (HOL) blocking	Yes
Number of static routes	48
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication	MAC-based authentication, Port-based authentication
Management protocols	SNMPv1/v2c/v3, SNTP
Power over Ethernet plus (PoE+) ports quantity	48
MIB support	Yes
Forwarding rate	77.38 Mpps
Total Power over Ethernet (PoE) budget	384 W
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Heat dissipation	1584.08 BTU/h
Porturi RJ 45	28+
Viteza Transfer	Gigabit
Porturi SFP	1-2
Montare in Rack	Da
SFP module slots quantity	4
Console port	RJ-45/micro-USB
Management	Da
PoE	Da
Operating temperature (T-T)	0 – 40 °C
Quick start guide	Yes
Cables included	AC
Operating relative humidity (H-H)	10 – 90%
Storage temperature (T-T)	-40 – 70 °C
LED indicators	Yes
Package type	Box
Power source	AC
Depth	330 mm
Cloud-managed	Yes
Power consumption (max)	464.2 W
Producator	TP-LINK
Garantie	60
