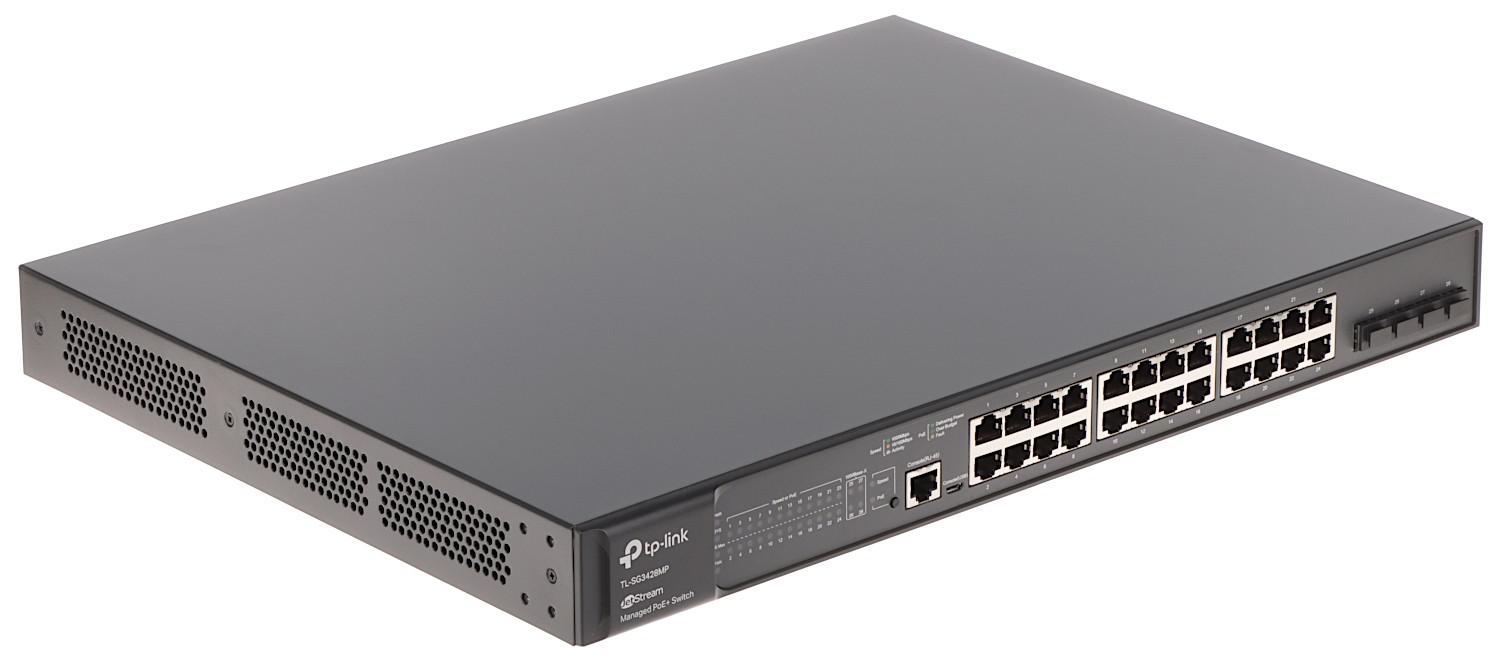

Jetstream™ 28 – Port Gigabit L2+ Managed Switch with 24 – Port PoE+

„JetStream™ 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ PORT: 24× Gigabit PoE+ Ports, 4× Gigabit SFP Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 384 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

Specificație: Jetstream™ 28 – Port Gigabit L2+ Managed Switch with 24 – Port PoE+

LAN-Port-Type	Gigabit
Storage relative humidity (H-H)	5 – 90%
Jumbo frames support	Yes
Link aggregation	Yes
Power supply included	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Yes
Number of fans	2 fan(s)
Rack mounting	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
Switch type	Managed
Port mirroring	Yes
Form factor	1U
MAC address filtering	Yes
Access Control List (ACL)	Yes
Security algorithms	SSH, SSL/TLS
Flow control support	Yes
Rate limiting	Yes
IGMP snooping	Yes
Installed SFP modules quantity	0
Configuring Location Settings (CLI)	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Gigabit Ethernet (copper) ports quantity	24
10G support	No
Broadcast storm control	Yes
Spanning tree protocol	Yes
Multicast support	Yes
Jumbo frames	9000
Active link detection	Yes
IP routing	Yes
Number of VLANs	4000
MAC address table	16000 entries
SSH/SSL support	Yes
Loop protection	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
ARP inspection	Yes
BPDU filtering/protection	Yes
Power over Ethernet (PoE) power per port	30 W
Store-and-forward	Yes
Power connector	AC-in jack
Switching capacity	56 Gbit/s
Packet buffer memory	12 MB
Head-of-line (HOL) blocking	Yes
Static port security	Yes
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
IP-MAC-Port binding	Yes
Authentication	MAC-based authentication, Port-based authentication
Power over Ethernet plus (PoE+) ports quantity	24
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Copper ethernet cabling technology	10BASE-T, 1000BASE-T
Forwarding rate	41.66 Mpps
Total Power over Ethernet (PoE) budget	384 W
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Management protocols	SNMPv1/v2c/v3, LLDP/LLDP-MED
Heat dissipation	1637.14 BTU/h
Porturi RJ 45	24-28
Viteza Transfer	Gigabit
Porturi SFP	1-2
Montare in Rack	Da
SFP module slots quantity	4
Console port	RJ-45/micro-USB
Management	Da
PoE	Da
Quick start guide	Yes
Operating relative humidity (H-H)	10 – 90%
Operating temperature (T-T)	0 – 45 °C
Storage temperature (T-T)	-40 – 70 °C
LED indicators	Yes
Power source	AC
Depth	330 mm
Certification	CE, FCC, RoHS
Cloud-managed	Yes
Power consumption (max)	480.1 W
Producator	TP-LINK
Garantie	60
