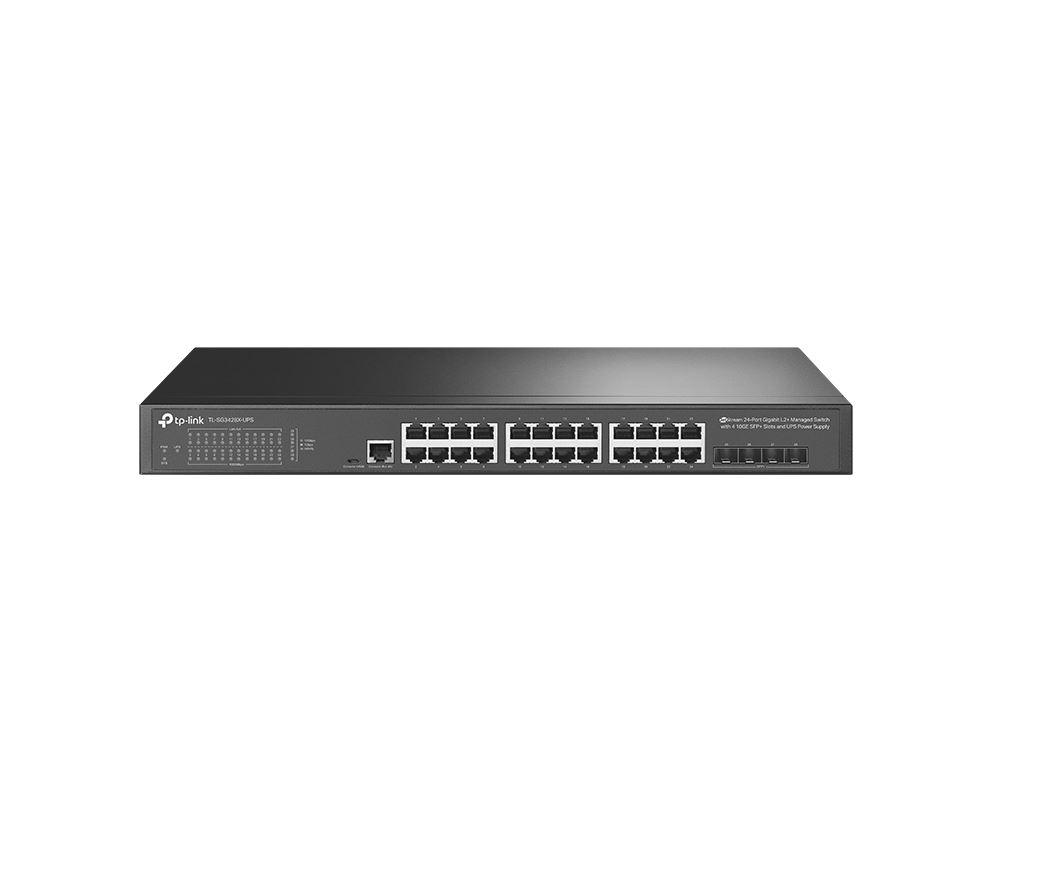

"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

„JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots and UPS Power Supply PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Taca cs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

Specificație: "JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+

Stackable	Yes
LAN-Port-Type	Gigabit
Storage relative humidity (H-H)	5 – 90%
Jumbo frames support	Yes
Link aggregation	Yes
Power supply included	Yes
Reset button	Yes
Rack mounting	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Static route	Yes
Web-based management	Yes
System event log	Yes
Switch type	Managed
10G support	Yes
Port mirroring	Yes
Form factor	1U
MAC address filtering	Yes
Access Control List (ACL)	Yes
Power connector	DC-in jack
Power over Ethernet (PoE)	No
Flow control support	Yes
Rate limiting	Yes
IGMP snooping	Yes
Rack mount kit	Yes
Installed SFP modules quantity	0
Configuring Location Settings (CLI)	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Broadcast storm control	Yes
Spanning tree protocol	Yes
Number of queues	8
Multicast support	Yes
Jumbo frames	9000
IP routing	Yes
Number of VLANs	4000
MAC address table	16000 entries
Switching capacity	128 Gbit/s
SSH/SSL support	Yes
Loop protection	Yes
Traffic classification	Yes
ARP inspection	Yes
BPDU filtering/protection	Yes
Packet buffer memory	12 MB
Head-of-line (HOL) blocking	Yes
Static port security	Yes
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
IP-MAC-Port binding	Yes
Authentication type	AAA, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Multicast Listener Discovery (MLD) snooping	Y
Management protocols	SNMPv1/v2c/v3, SNTP
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Virtual LAN features	Private VLAN, Protocol-based VLAN, Voice VLAN
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
IPv4 & IPv6 features	IPv6 Telnet, IPv6 ping, IPv6 tracert
Forwarding rate	95.23 Mpps
Heat dissipation	108.84 BTU/h
Porturi RJ 45	24-28
Viteza Transfer	Gigabit
Porturi SFP	3-4
Montare in Rack	Da
SFP module slots quantity	4
Console port	RJ-45/micro-USB
Management	Da
PoE	Nu
Quick start guide	Yes
Cables included	AC
Operating relative humidity (H-H)	10 – 90%
Depth	180 mm
Operating temperature (T-T)	0 – 45 °C
Storage temperature (T-T)	-40 – 70 °C
LED indicators	Yes
Package type	Box
Power source	AC
Certification	CE, FCC, RoHS
Cloud-managed	Yes
Power consumption (max)	31.9 W
Producator	TP-LINK
Garantie	24
