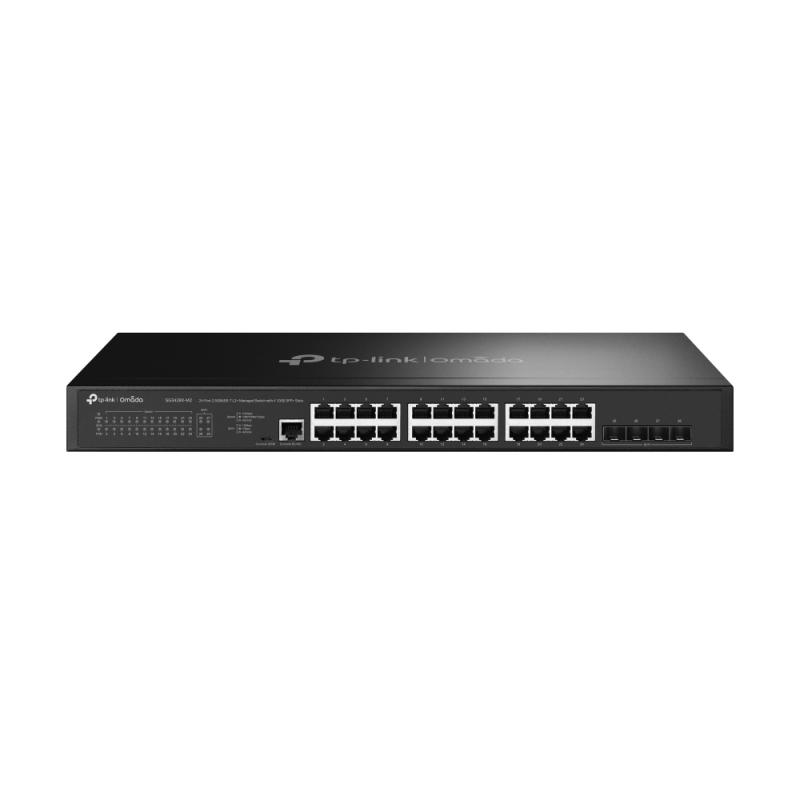

24-Port Jetstream™ 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+

„JetStream™ 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× 2.5G RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

Specificație: 24-Port Jetstream™ 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+

Layer	Layer-2
Stackable	No
Rackable	Yes
LAN-Port-Type	Gigabit
Redundant-PSU	Yes
Storage relative humidity (H-H)	5 – 90%
Jumbo frames support	Yes
Link aggregation	Yes
Number of fans	1 fan(s)
Power supply included	Yes
Rack mounting	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Static route	Yes
Web-based management	Yes
System event log	Yes
Switch type	Managed
10G support	Yes
Port mirroring	Yes
Form factor	1U
Policy-based routing	Yes
Access Control List (ACL)	Yes
Power over Ethernet (PoE)	No
Flow control support	Yes
Rate limiting	Yes
IGMP snooping	Yes
Installed SFP modules quantity	0
Configuring Location Settings (CLI)	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Broadcast storm control	Yes
Spanning tree protocol	Yes
Multicast support	Yes
Jumbo frames	9000
Active link detection	Yes
SSH/SSL support	Yes
Loop protection	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
ARP inspection	Yes
MAC address table	32000 entries
BPDU filtering/protection	Yes
Store-and-forward	Yes
Power connector	AC-in jack
Head-of-line (HOL) blocking	Yes
Number of static routes	48
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
IP-MAC-Port binding	Yes
Multicast Listener Discovery (MLD) snooping	Y
Authentication type	AAA, RADIUS, TACACS+
Packet buffer memory	16 MB
IPv4 routes	48
IPv6 routes	48
Authentication	Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Management protocols	SNMP v1/v2c/v3, SNTP
MIB support	Yes
Switching capacity	200 Gbit/s
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
2.5G Ethernet (copper) ports quantity	24
Forwarding rate	148.8 Mpps
Networking standards	IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
IPv4 FIB entries	100
IPv6 FIB entries	100
Heat dissipation	154.38 BTU/h
Porturi RJ 45	24-28
Viteza Transfer	2.5G
Porturi SFP	3-4
Montare in Rack	Da
SFP module slots quantity	4
Console port	RJ-45/micro-USB
LAN Ports	24
Management	Da
PoE	Nu
Operating temperature (T-T)	0 – 40 °C
Quick start guide	Yes
Operating relative humidity (H-H)	10 – 90%
Depth	180 mm
Storage temperature (T-T)	-40 – 70 °C
LED indicators	Yes
Power source	AC
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	CE, FCC, RoHS
Cables included	LAN (RJ-45)
Cloud-managed	Yes
Power consumption (max)	45.1 W
Producator	TP-LINK
Garantie	60
