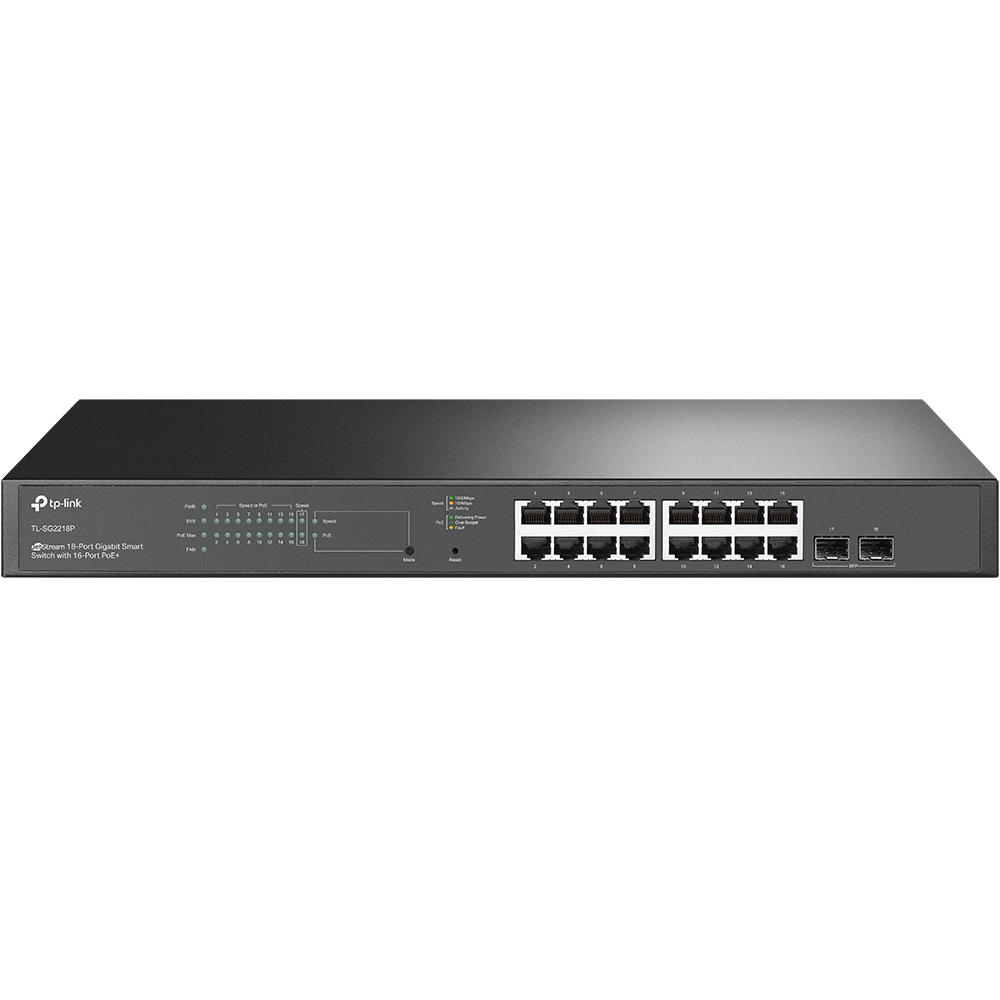

Jetstream™ 18 – Port Gigabit Smart Switch with 16 – Port PoE+ – 16x Ports

„JetStream™ 18-Port Gigabit Smart Switch with 16-Port PoE+ PORT: 16× Gigabit RJ45 Ports, 2× Gigabit SFP Slots SPEC: 802.3at/af, 150 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

Specificație: Jetstream™ 18 – Port Gigabit Smart Switch with 16 – Port PoE+ – 16x Ports

LAN-Port-Type	Gigabit
Storage relative humidity (H-H)	5 – 90%
Jumbo frames support	Yes
Link aggregation	Yes
Power supply included	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Yes
Rack mounting	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
Switch type	Managed
Form factor	1U
Policy-based routing	Yes
MAC address filtering	Yes
Access Control List (ACL)	Yes
Auto MDI/MDI-X	Yes
Flow control support	Yes
Rate limiting	Yes
Auto-negotiation	Yes
Installed SFP modules quantity	0
Configuring Location Settings (CLI)	Yes
10G support	No
Broadcast storm control	Yes
Spanning tree protocol	Yes
Multicast support	Yes
Basic switching RJ-45 Ethernet ports quantity	16
MAC address table	8000 entries
Forwarding rate	26.78 Mpps
IP routing	Yes
SSH/SSL support	Yes
Loop protection	Yes
ARP inspection	Yes
Packet buffer memory	4.1 MB
BPDU filtering/protection	Yes
Total Power over Ethernet (PoE) budget	150 W
DHCP features	DHCP client, DHCP relay, DHCP snooping
Static port security	Yes
Authentication	MAC-based authentication, Port-based authentication
Switch layer	L2/L2+
Switching capacity	26.78 Gbit/s
Jumbo frames	9
Multicast features	Multicast forwarding
Heat dissipation	619.06 BTU/h
Porturi RJ 45	11-18
Viteza Transfer	Gigabit
Porturi SFP	1-2
Montare in Rack	Nu
SFP module slots quantity	2
Management	Da
PoE	Da
Operating relative humidity (H-H)	10 – 90%
Operating temperature (T-T)	0 – 50 °C
Depth	180 mm
Storage temperature (T-T)	-40 – 70 °C
LED indicators	Yes
Package type	Box
Certification	CE, FCC, RoHS
Cables included	LAN (RJ-45)
Cloud-managed	Yes
Power source	DC/PoE
Power consumption (max)	181.4 W
Producator	TP-LINK
Garantie	24
