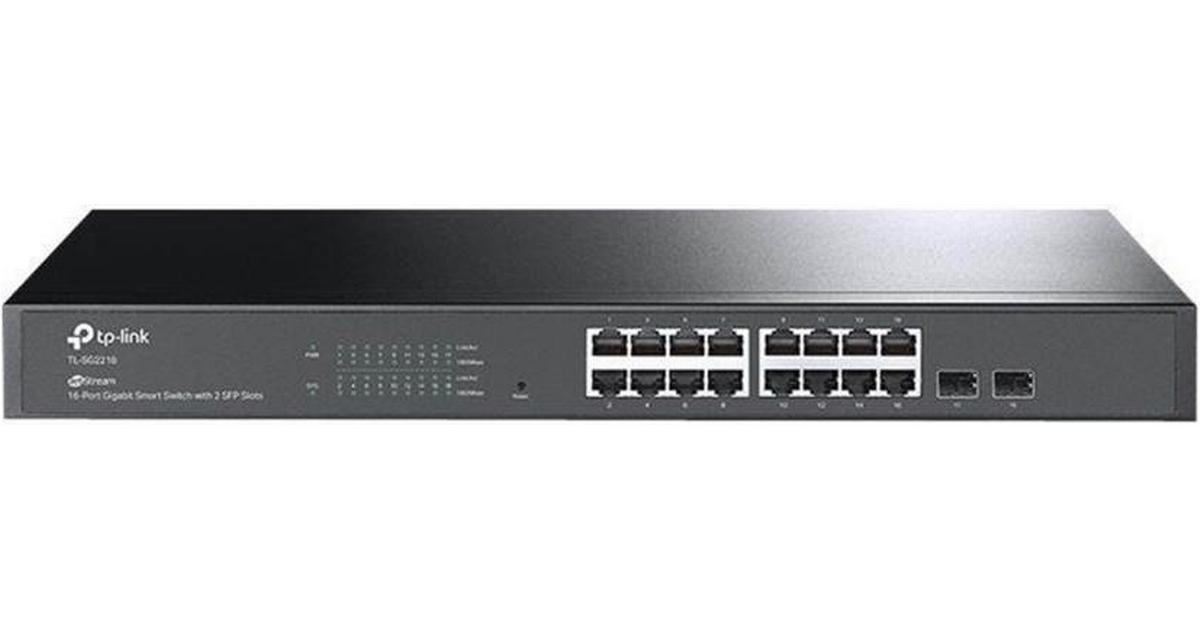

16-Port Jetstream™ Gigabit Smart Switch with 2 Gigabit SFP Slots

„JetStream™ 16-Port Gigabit Smart Switch with 2 Gigabit SFP Slots PORT: 16× Gigabit RJ45 Ports, 2× Gigabit SFP Slots SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”

Specificație: 16-Port Jetstream™ Gigabit Smart Switch with 2 Gigabit SFP Slots

LAN-Port-Type	Gigabit
Layer	Unmanaged
Stackable	No
Rackable	No
Redundant-PSU	Yes
LAN Ports	16
Storage relative humidity (H-H)	5 – 90%
Jumbo frames support	Yes
Link aggregation	Yes
Power supply included	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Rack mounting	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Static route	Yes
Web-based management	Yes
System event log	Yes
Switch type	Managed
Port mirroring	Yes
Form factor	1U
Access Control List (ACL)	Yes
Power over Ethernet (PoE)	No
Flow control support	Yes
Rate limiting	Yes
IGMP snooping	Yes
Installed SFP modules quantity	0
10G support	No
Broadcast storm control	Yes
Spanning tree protocol	Yes
Multicast support	Yes
Basic switching RJ-45 Ethernet ports quantity	16
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Jumbo frames	9000
Fanless	Yes
Number of VLANs	4000
SSH/SSL support	Yes
Loop protection	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
ARP inspection	Yes
Packet buffer memory	4.1 MB
BPDU filtering/protection	Yes
Gigabit Ethernet (copper) ports quantity	16
Store-and-forward	Yes
Number of IP interfaces	16
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast Listener Discovery (MLD) snooping	Y
Management protocols	SNMPv1/v2c/v3, SNTP
Number of static routes	32
Switch layer	L2/L2+
MIB support	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Virtual LAN features	Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Forwarding rate	26.8 Mpps
Heat dissipation	41.97 BTU/h
Porturi RJ 45	11-18
Viteza Transfer	Gigabit
Porturi SFP	1-2
Montare in Rack	Nu
SFP module slots quantity	2
Management	Da
PoE	Nu
Operating temperature (T-T)	0 – 40 °C
Quick start guide	Yes
Operating relative humidity (H-H)	10 – 90%
Depth	180 mm
Storage temperature (T-T)	-40 – 70 °C
LED indicators	Yes
Power source	AC
Certification	CE, FCC, RoHS
Cables included	AC, LAN (RJ-45)
Cloud-managed	Yes
Power consumption (max)	12.3 W
Producator	TP-LINK
Garantie	60
