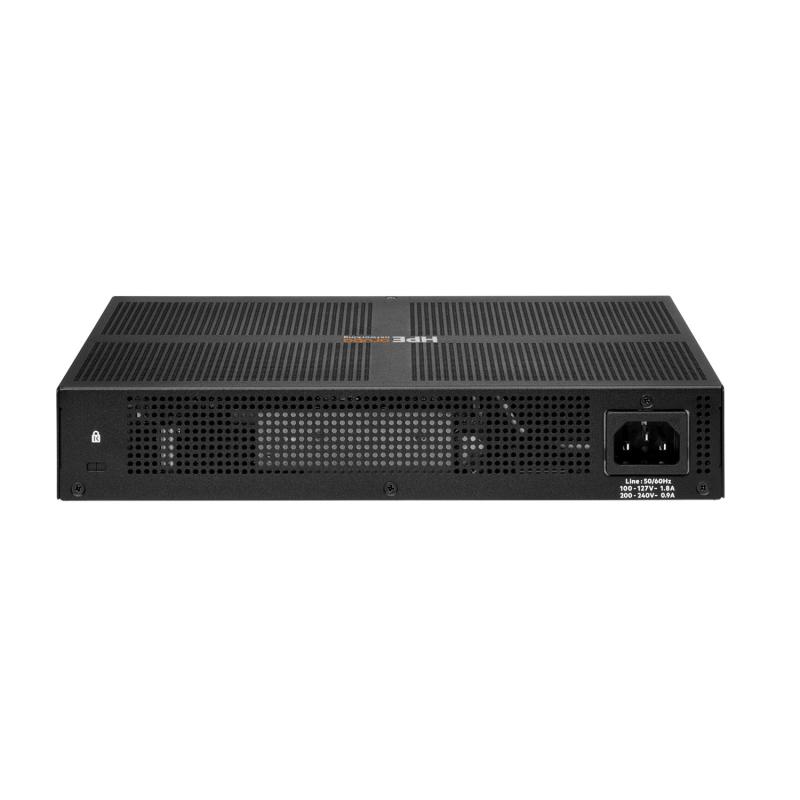

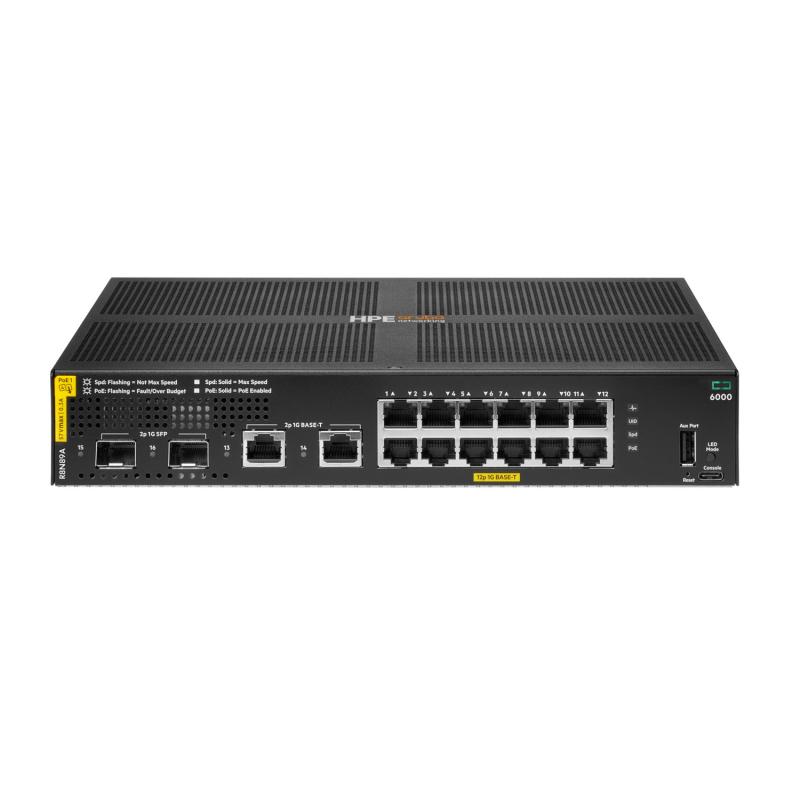

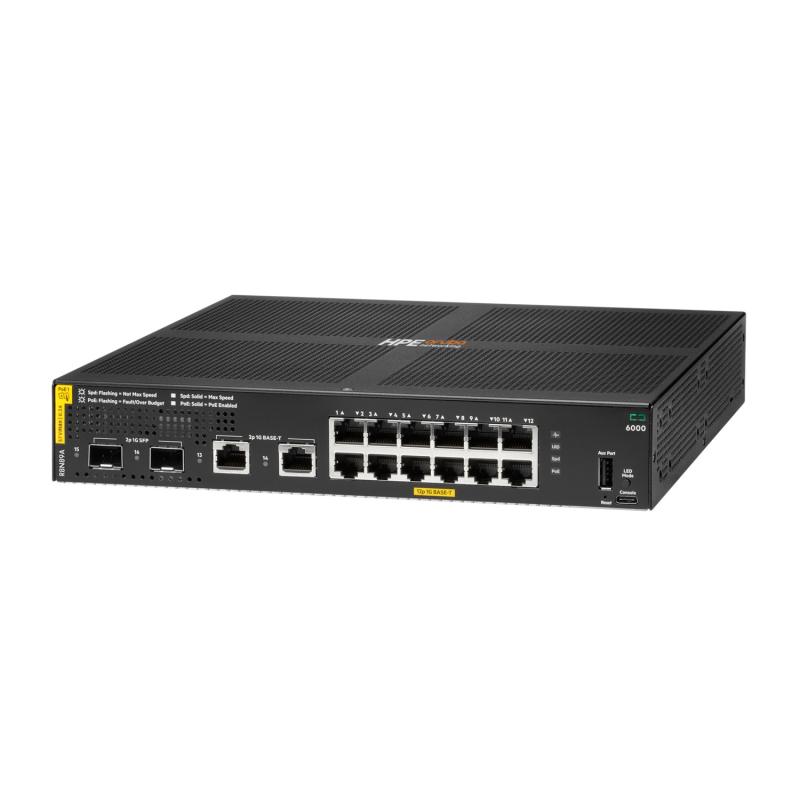

Hpe Aruba Networking Cx 6000 12G Class4 POE 2G/2SFP 139W

Lifecycle

• Obsolete Date 31-12-2099
• End of support date 31-12-2104

Specifications

• Ports 12x ports 10/100/1000BASE-T Ports 2x 1G SFP ports 2x 1GbE ports
• Throughput 23.8 Mpps
• Memory and processor Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC
• Product dimensions (metric) 4.4 x 25.4 x 25.5 cm
• Operating temperature 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
• Warranty Limited lifetime warranty. See the warranty duration.
• Latency 1 Gbps: 2.3 μSec
• Switching capacity 32 Gbps
• PoE capability 139W Class 4 PoE/PoE+
• Input voltage 100-127 VAC / 200-240 VAC
• Power consumption Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W
• Routing capabilities Static
• Weight 6.13 lbs
• Product dimensions (imperial) 1.73 x 10.0 x 10.4 in
• Weight 2.8 kg

• QuickSpecs (HTML)
• QuickSpecs (PDF)

Overview

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) to deliver a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The CX 6000 Series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.

What’s new

• Simplify IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
• Compact and fanless 12-port PoE model for space-constrained deployments.
• Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
• Ready for software defined networking with REST APIs.
• Convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices.

Features

HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.

The HPE Aruba Networking CX 6000 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption.

Up to four built-in wire speed 1 GbE uplinks remove bottlenecks at the access layer where users and devices connect.

Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.

Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).

Deploy wireless access points and IoT devices using HPE Aruba Networking CX 6000 switch models for up to 740W IEEE 802.3at Class 4 Power over Ethernet with up to 30W per port.

Simplified Configuration and Management

The HPE Aruba Networking CX 6000 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.

Performance and Power

The HPE Aruba Networking CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.

Delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.

Fully-managed enterprise vclass switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6.

Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE.

Simplifies ownership with no switch software licensing or subscriptions required.

Entry Level Layer 2 Access Switches

Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.

Media

Switch Forward with HPE Aruba Networking CX Switching for Performance, Scale and High Availability

Free your network from a maze of outdated switching platforms, operating systems, and management tools. Move toward a high-performing, automated, and data-driven future with the HPE Aruba Networking CX Switching Portfolio.

Documents

• HPE Aruba Networking CX 6000 Switch Series QuickSpecs
