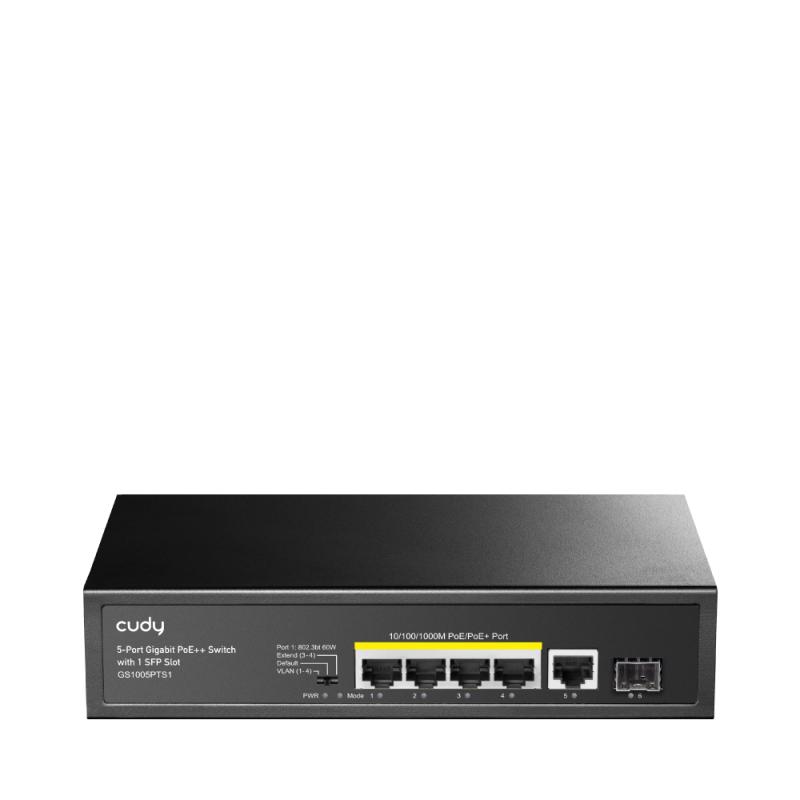

Name: CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports, - A.W.P.S Store
Brand: CUDY
SKU: GS1005PTS1
Price: 156.98 RON
Availability: InStock

CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports,

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports, 60 watts for port #1, 802.3at/af, VLAN ON/OFF, Extend ON/OFF, Watchdog ON/OFF， Fanless, ±4KV Surge Protection,Watchdog, 120W Internal Power Supply

Specificație: CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports,

Layer	Layer-2
Stackable	No
Rackable	No
LAN-Port-Type	Gigabit
Redundant-PSU	No
LAN Ports	5
Storage relative humidity (H-H)	5 – 90%
Products per master (outer) case	20 pc(s)
Plug and Play	Yes
Jumbo frames support	Yes
Power supply included	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Operating altitude	0 – 3048 m
Power over Ethernet (PoE)	Yes
Full duplex	Yes
Rack mounting	Yes
VLAN support	Yes
Flow control support	Yes
Mean time between failures (MTBF)	100000 h
Master (outer) case length	320 mm
Master (outer) case width	505 mm
Installed SFP modules quantity	1
Master (outer) case net weight	19 kg
Half duplex	Yes
Basic switching RJ-45 Ethernet ports quantity	5
Jumbo frames	9216
Fanless	Yes
MAC address table	2000 entries
Fiber type	Multi-mode
Input current	1.25 A
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Store-and-forward	Yes
Power connector	AC-in jack
Packet buffer memory	1 MB
Total Power over Ethernet (PoE) budget	120 W
Combo SFP ports quantity	1
Switching capacity	1.2 Gbit/s
Power over Ethernet plus (PoE+) ports quantity	1
Switching optical modules type	Gigabit Ethernet
Uplink ports quantity	1
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Output current	1.25 A
Porturi RJ 45	5-10
Viteza Transfer	Gigabit
Porturi SFP	1-2
Montare in Rack	Da
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Throughput	8.928 Mpps
Output voltage	52 V
Master (outer) case height	402 mm
Management	Nu
PoE	Nu
Storage temperature (T-T)	-40 – 85 °C
Cables included	AC
Housing material	Metal
Package type	Box
Power source	AC
Package weight	900 g
Wall mountable	Yes
LED indicators	Activity, Link, Power
Operating temperature (T-T)	-20 – 50 °C
Package depth	190 mm
Package height	60 mm
Weight	600 g
Package width	245 mm
Width	200 mm
Producator	CUDY
Garantie	24
