Name: Sursa GIGABYTE UD1300GM PG5 80 PLUS GOLD - A.W.P.S Store
Brand: GIGABYTE
SKU: GP-UD1300GM PG5
Price: 1043.85 RON
Availability: OutOfStock

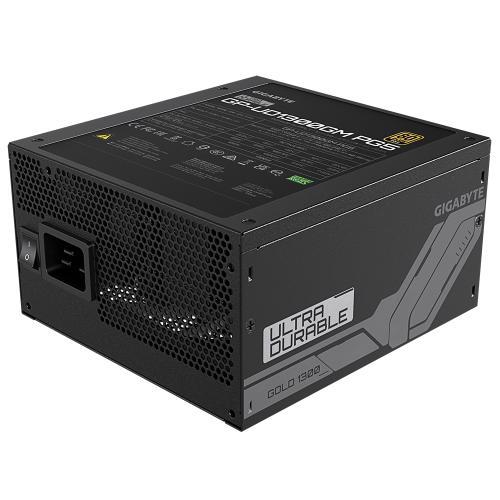

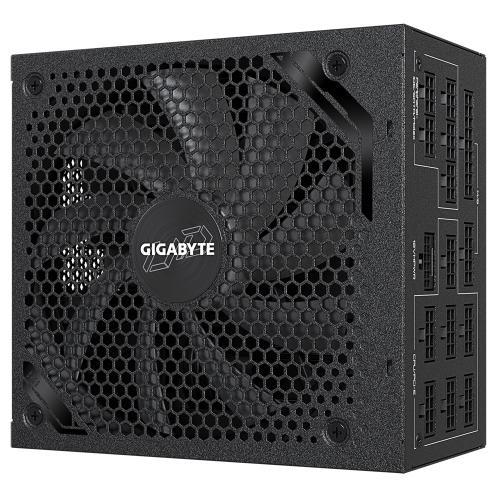

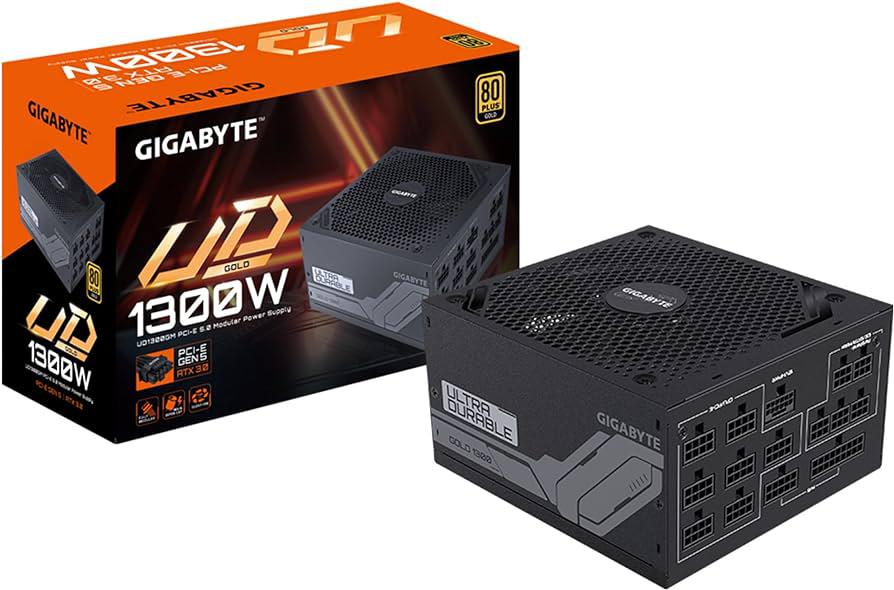

Sursa GIGABYTE UD1300GM PG5 80 PLUS GOLD

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Sursa GIGABYTE UD1300GM PG5, Active PFC (>0.9 typical), 1300W 80 PLUS GOLD, 140mm double ball bearing fan

Specificație: Sursa GIGABYTE UD1300GM PG5 80 PLUS GOLD

PSU Type	ATX
Number of fans	1 fan(s)
Purpose	PC
Illumination	No
Fan diameter	12 cm
Mean time between failures (MTBF)	100000 h
Conectivitate	Full – Modular
Iluminare RGB	Nu
Certificare 80 Plus	80 PLUS Gold
Motherboard power connector	20+4 pin ATX
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
PCI Express connector	Yes
Power supply unit (PSU) form factor	ATX
Fan location	Top
Max output current (+3.3V)	25 A
Max output current (+5V)	25 A
Number of SATA power connectors	8
Combined power (+5Vsb)	17.5 W
Max output current (+5Vsb)	3.5 A
Motherboard power cable length	61 cm
Cabling type	Fully-Modular
Power Factor Correction (PFC) type	Active
80 PLUS certification	80 PLUS Gold
Cable tie(s) included	Yes
Efficiency	90%
PCI Express power connectors (6+2 pin)	1
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power cable length	70 cm
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Combined power (+3.3V)	125 W
Combined power (+5V)	125 W
Number of PATA power connectors	3
Maximum input current (@110V)	6 A
Maximum input current (@220V)	12 A
Total power	1300 W
Combined power (+12V)	1300 W
Max output current (+12V)	108.3 A
SATA power cable length	150,600 mm
Peripheral (Molex) power cable length	200,600 mm
PSU-Power	1300W
PFC	Active
Width	150 mm
Height	86 mm
Warranty period	5 year(s)
Depth	160 mm
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), RoHS
Cables included	CPU, PATA, Peripheral (Molex), SATA
Producator	GIGABYTE
Garantie	120
