Name: Sursa DEEPCOOL PL550D V2 550W 80 PLUS Bronze - A.W.P.S Store
Brand: DEEPCOOL
SKU: R-PL550D-FC0B-EU V2
Price: 214.06 RON
Availability: InStock

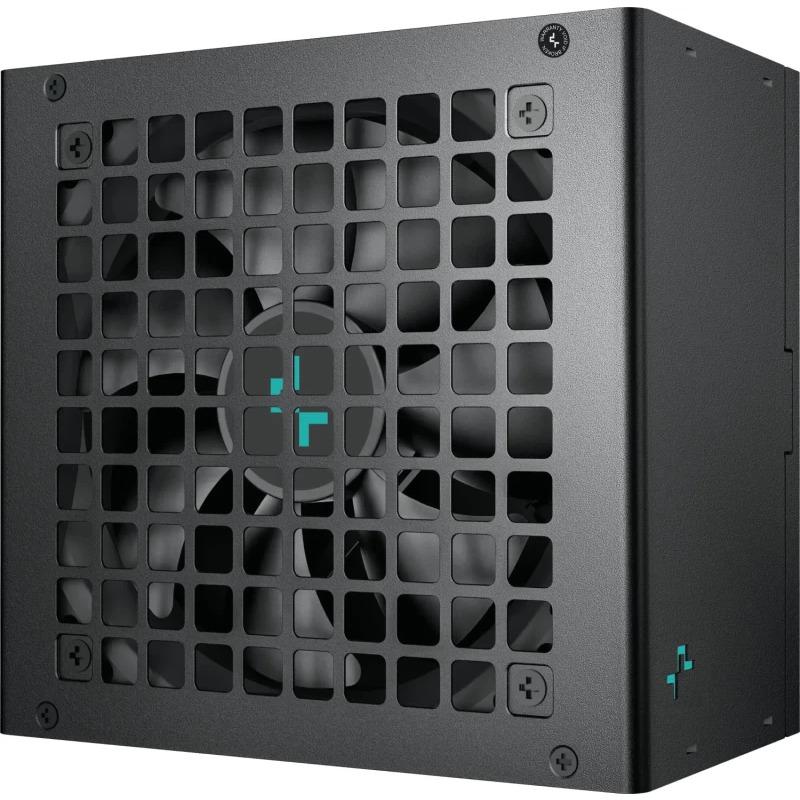

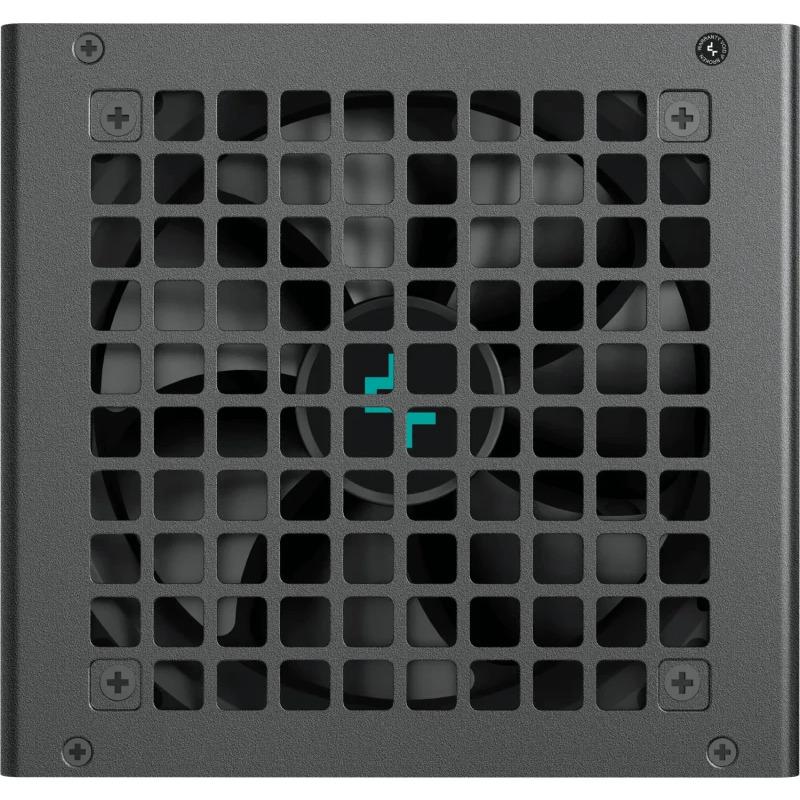

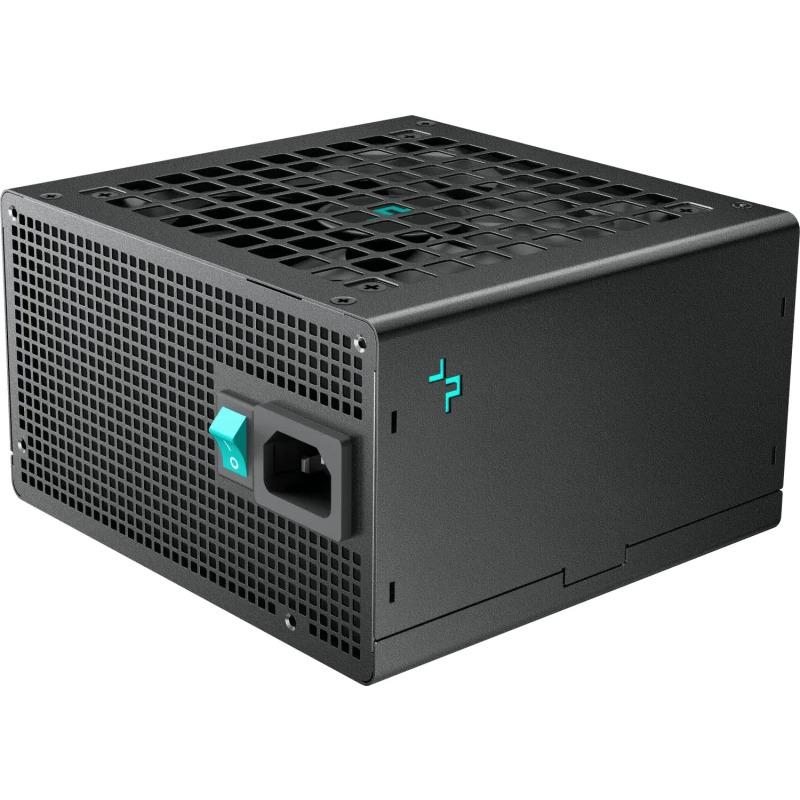

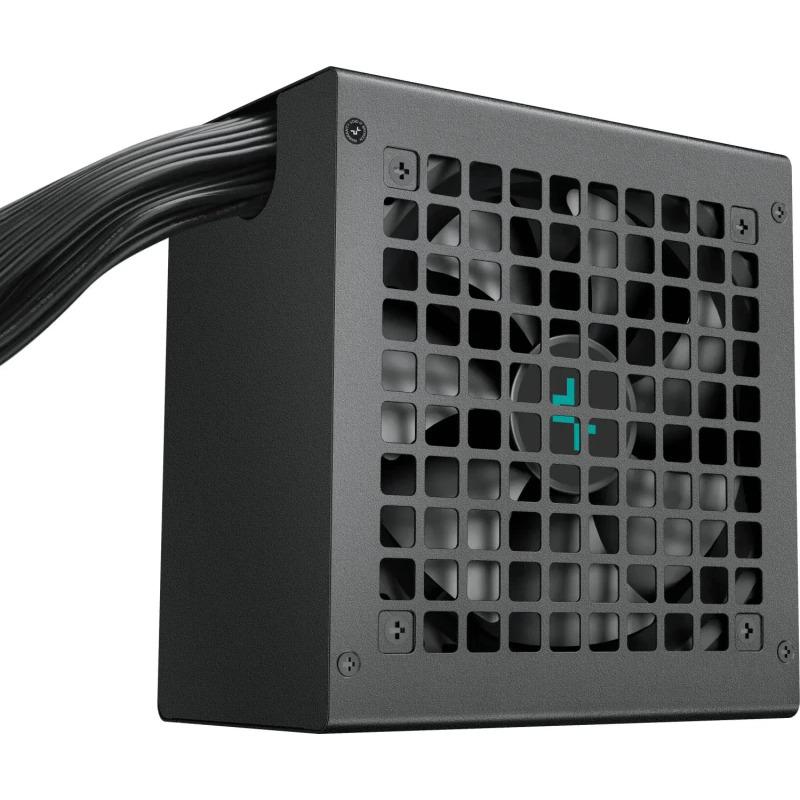

Sursa DEEPCOOL PL550D V2 550W 80 PLUS Bronze

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Sursa DEEPCOOL PL550D V2 550W 80 PLUS Bronze, Active PFC+DC to DC, Eficienta 85% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Specificație: Sursa DEEPCOOL PL550D V2 550W 80 PLUS Bronze

PSU Type	ATX
Cooling type	Active
Number of fans	1 fan(s)
Purpose	PC
80 PLUS certification	80 PLUS Bronze
Fan diameter	12 cm
Mean time between failures (MTBF)	100000 h
Conectivitate	Non Modular
Iluminare RGB	Nu
Certificare 80 Plus	80 PLUS Bronze
Modular	Yes
Combined power (+3.3V)	100 W
Combined power (+5V)	100 W
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	55 cm
Number of SATA power connectors	6
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Non-Modular
Power supply unit (PSU) form factor	ATX
Fan location	Top
Combined power (+5Vsb)	15 W
Max output current (+5Vsb)	3 A
Power Factor Correction (PFC) type	Active
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
PCI Express power connectors (6+2 pin)	1
Peripheral (Molex) power connectors (4-pin)	2
Total power	550 W
Hold time	16 ms
ATX version	3.1
Power Good signal delay range	100 – 150 ms
Bearing technology	HYB
Sustainability certificates	ErP, Triman
Max output current (+12V)	0.3 A
SATA power cable length	450,550,650 mm
Efficiency	80Plus-Bronze
PSU-Power	550 W
PFC	Active
Combined power (+12V)	3.6 W
Operating temperature (T-T)	0 – 40 °C
Width	150 mm
Sustainability compliance	Yes
Package type	Box
Country of origin	China
On/off switch	Yes
Depth	140 mm
AC input frequency	50/60 Hz
Compliance certificates	RoHS, WEEE
Certification	CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Height	8.6 mm
Producator	DEEPCOOL
Garantie	60
