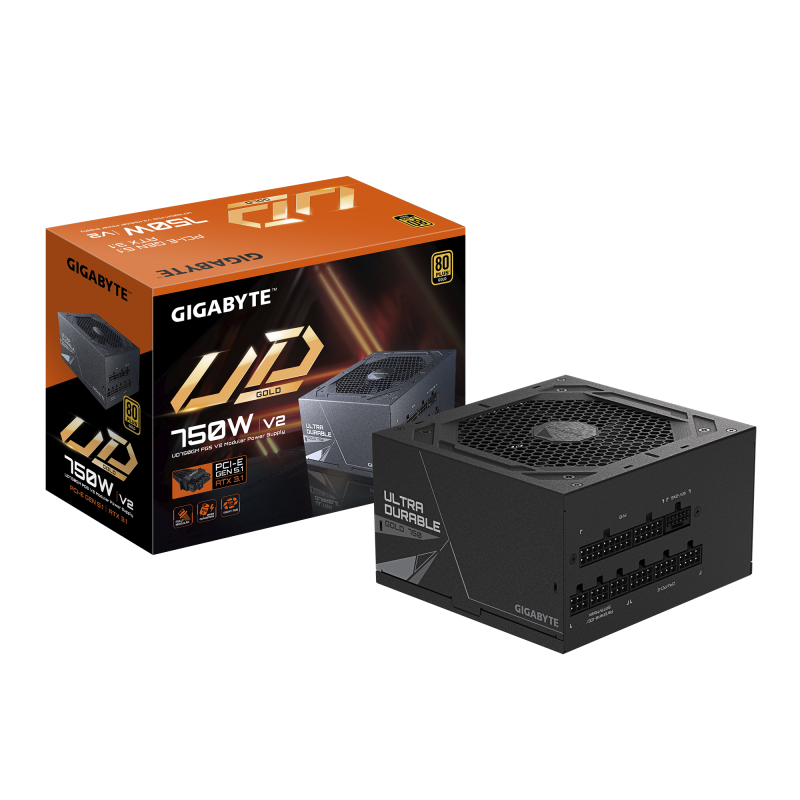

Name: UD750GM GIGABYTE PG5 V2. Total Power: 750 W, Ac Input
Brand: GIGABYTE
SKU: GP-UD750GM PG5 V2
Price: 511.64 RON
Availability: InStock

UD750GM GIGABYTE PG5 V2. Total Power: 750 W, Ac Input

GIGABYTE UD750GM PG5 V2. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Specificație: UD750GM GIGABYTE PG5 V2. Total Power: 750 W, Ac Input

PSU Type	ATX
Cooling type	Active
Number of fans	1 fan(s)
Purpose	PC
Fan diameter	12 cm
Peripheral (Molex) power connectors (4-pin)	3
Mean time between failures (MTBF)	100000 h
Conectivitate	Full – Modular
Iluminare RGB	Nu
Certificare 80 Plus	80 PLUS Gold
Motherboard power connector	20+4 pin ATX
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Power supply unit (PSU) form factor	ATX
Total power	750 W
Combined power (+5Vsb)	15 W
Max output current (+5Vsb)	3 A
Number of SATA power connectors	8
Motherboard power cable length	61 cm
Cabling type	Fully-Modular
Power Factor Correction (PFC) type	Active
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Floppy drive power connector	1
80 PLUS certification	80 PLUS Gold
Efficiency	90%
CPU power cable length	65 cm
Power factor	0.9
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
ATX version	3.1
PCI Express power cable length	60 cm
Peripheral (Molex) power cable length	150,500 mm
Bearing technology	HYB
Combined power (+3.3V)	105 W
Combined power (+5V)	105 W
SATA power cable length	150,600 mm
Number of EPS connectors	2
Max output current (+12V)	0.3 A
PSU-Power	750 W
Combined power (+12V)	3.6 W
PCI Express power connectors (6+2 pin)	700 mm
Product colour	Black
Width	150 mm
Height	86 mm
Warranty period	5 year(s)
Package type	Box
On/off switch	Yes
Package height	211 mm
Package weight	2.5 kg
Depth	140 mm
AC input frequency	50/60 Hz
Package width	618 mm
Package depth	269 mm
Input current	12 – 6.5 A
Weight	2.34 kg
Producator	GIGABYTE
Garantie	24
