Name: Placa de bază MSI PRO B760M-P LGA1700 - A.W.P.S Store
Brand: MSI
SKU: PRO B760M-P
Price: 518.56 RON
Availability: InStock

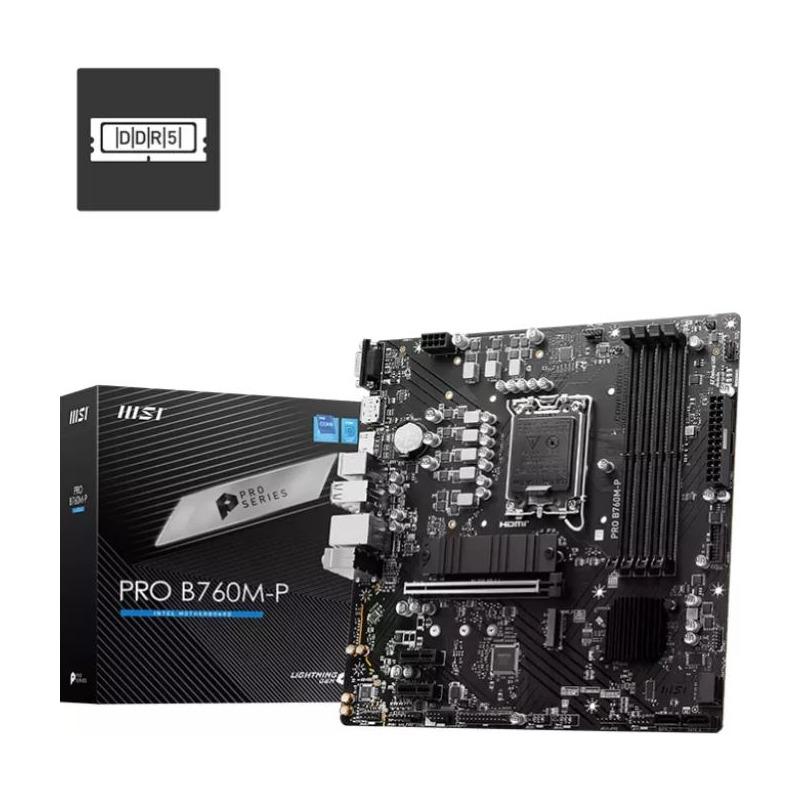

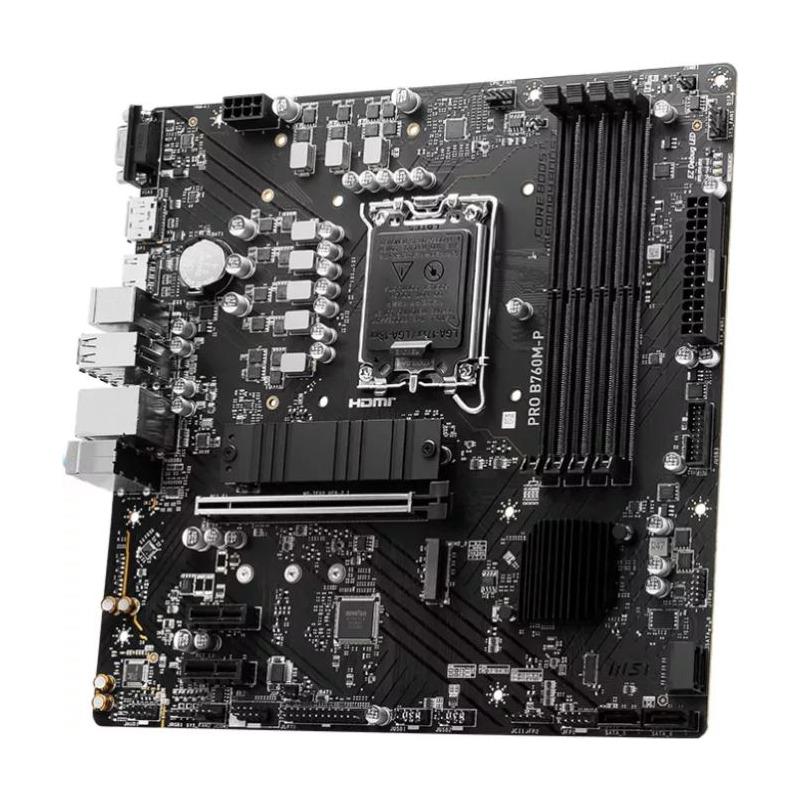

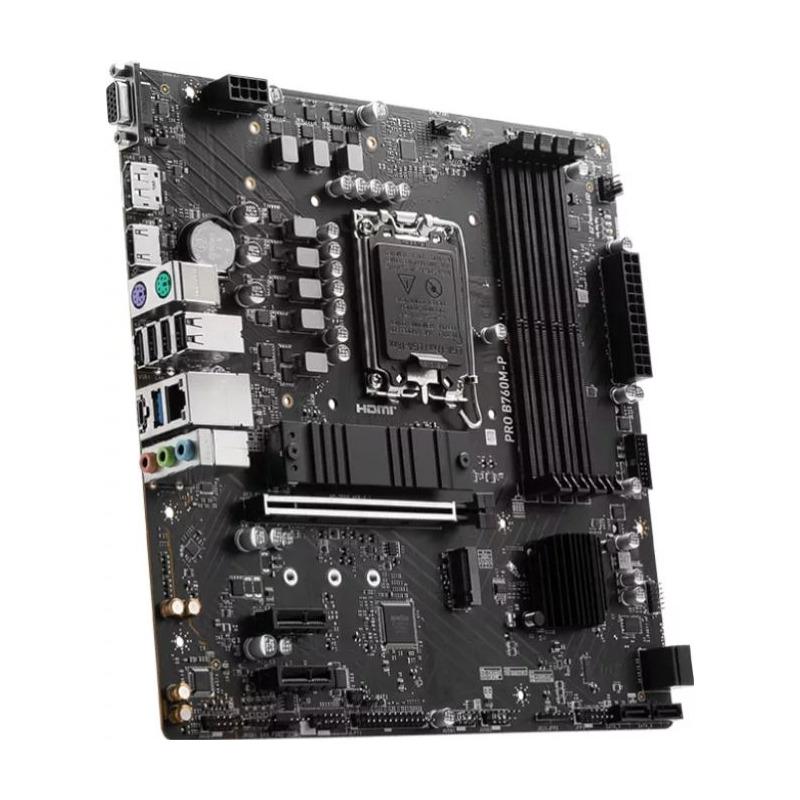

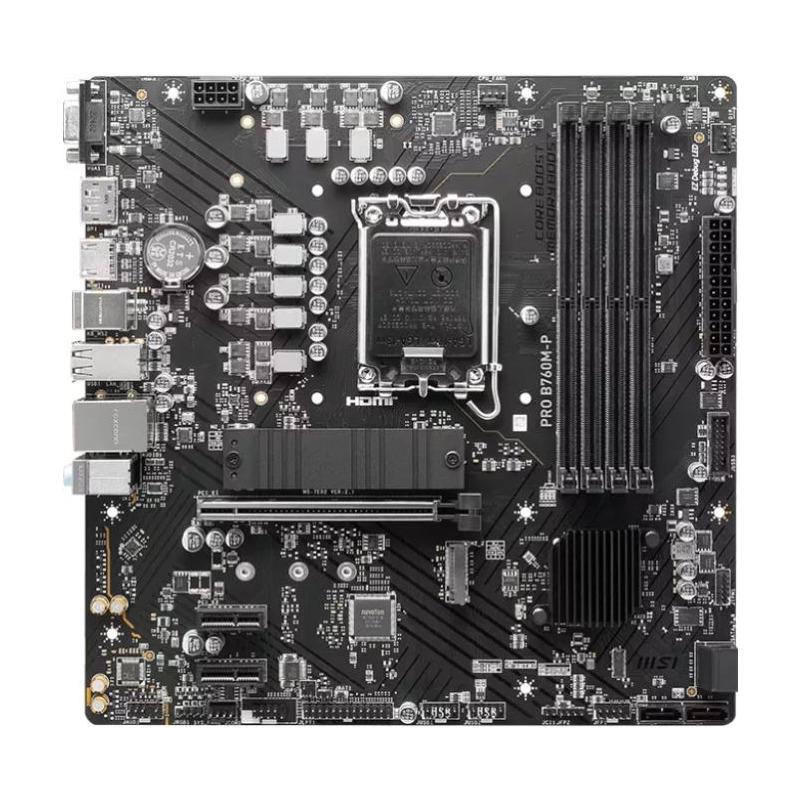

Placa de bază MSI PRO B760M-P LGA1700

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de baza MSI PRO B760M-P LGA1700, 4xDDR5, 1x HDMI 1x DP 1x VGA, 1x PCIE x16 2x PCIE x1, 2x M.2, 4x SATA 6 GB/s, mATX

Specificație: Placa de bază MSI PRO B760M-P LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	VGA/HDMI
Wi-FI	No
USB3	4-8
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Ethernet interface type	Gigabit Ethernet
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
LAN controller	Realtek RTL8111H
VGA (D-Sub) ports quantity	1
Maximum internal memory	192 GB
DisplayPorts quantity	1
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B760
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Unbuffered memory	Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard chipset family	Intel
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
ECC сompatibility	Non-ECC
Number of storage drives supported	6
Number of COM connectors	1
Motherboard chipset	Intel B760
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Supported storage drive interfaces	SATA III
Chassis intrusion connector	Yes
USB 2.0 connectors	4
ACPI version	6.4
System Management BIOS (SMBIOS) version	3.5
PCI Express x1 (Gen 4.x) slots	2
Compatible processor series	Intel® Celeron®, Intel® Pentium® Gold
PS/2 ports quantity	2
Parallel connector	Yes
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
MB-Format	ATX
MB-Socket	1700
PCI-Ex1	2
RAM-Slots	2
Microphone in	Yes
Headphone outputs	1
Cables included	SATA
Power source type	ATX
Width	243.8 mm
Depth	243.8 mm
Producator	MSI
Garantie	36
