Name: Placa de bază MSI B650M GAMING PLUS WIFI AM5 - A.W.P.S Store
Brand: MSI
SKU: B650M GAMING PLUS WIFI
Price: 848.32 RON
Availability: OutOfStock

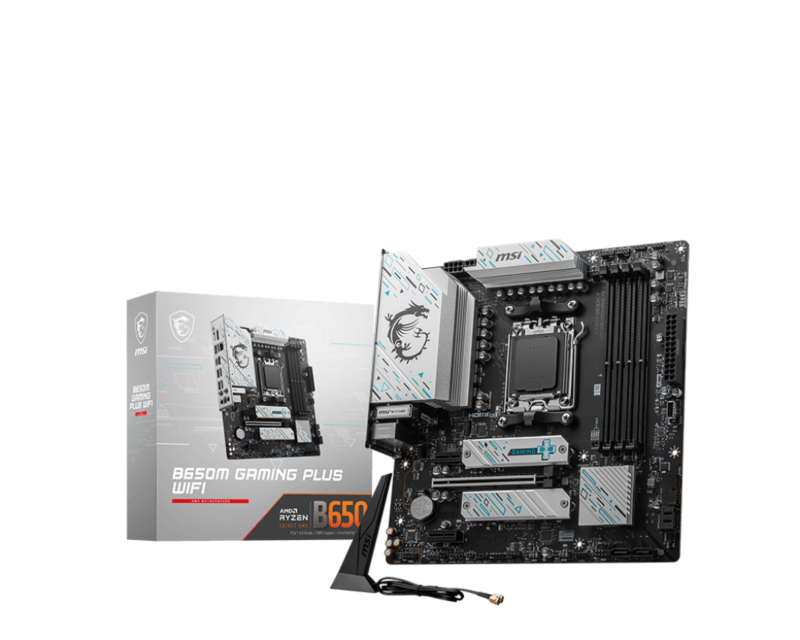

Placa de bază MSI B650M GAMING PLUS WIFI AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza MSI B650M GAMING PLUS WIFI AM5, 4x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 2x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Specificație: Placa de bază MSI B650M GAMING PLUS WIFI AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	Yes
USB3	4-8
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Processor manufacturer	AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
Audio Chip	Realtek ALC897
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
S/PDIF out port	Yes
Maximum internal memory	192 GB
USB 3.2 Gen 2x2 Type-C ports quantity	0
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Supported storage drive interfaces	M.2, PCI Express
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Da
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Unbuffered memory	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
CPU fan connector	Yes
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Supported memory types	DDR5-SDRAM
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Maximum internal memory supported by processor	192 GB
ECC сompatibility	Non-ECC
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Chassis intrusion connector	Yes
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
USB 2.0 connectors	4
ACPI version	6.4
System Management BIOS (SMBIOS) version	3.5
Motherboard chipset	AMD B650
RAID levels	0, 5, 10
PCI-Ex1	0
RAM-Slots	4
MB-Format	micro-ATX
USB Type-C	N/A
MB-Socket	AM5
PCI-Ex16	5
Supported memory clock speeds	7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Bluetooth	Yes
Bluetooth version	5.3
Ethernet LAN (RJ-45) ports	1
Cables included	SATA
Width	243.8 mm
Depth	243.8 mm
Producator	MSI
Garantie	36
