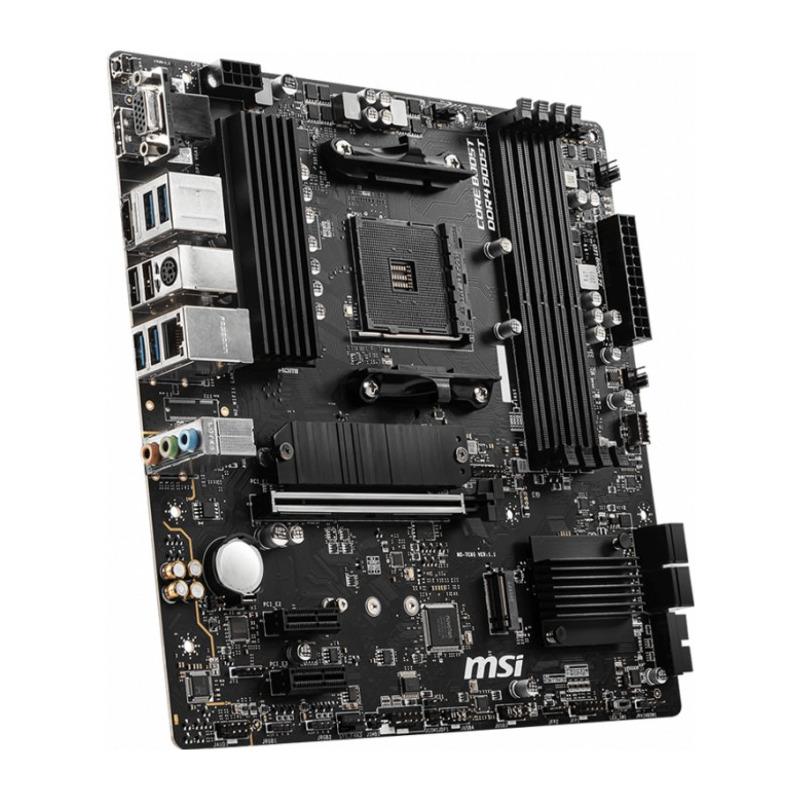

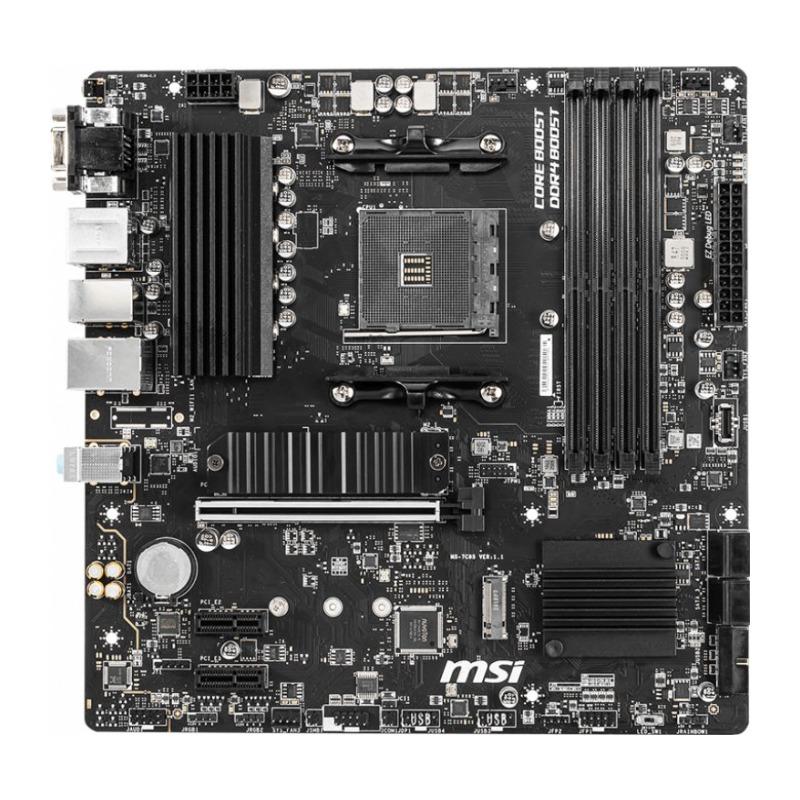

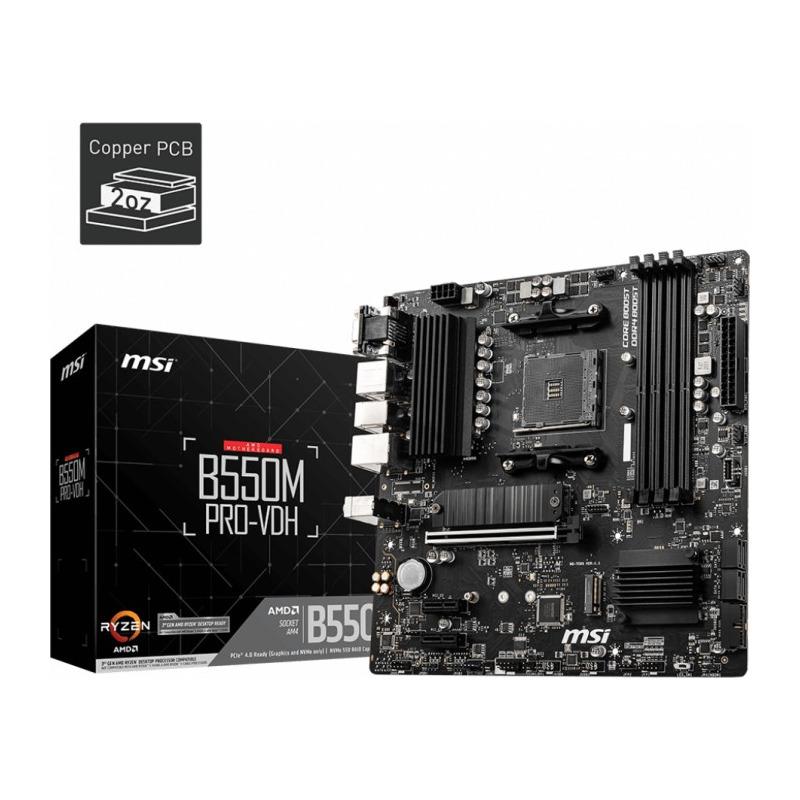

Placa de bază MSI B550M PRO-VDH AM4

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza MSI B550M PRO-VDH AM4 4x DDR4, 1x PCIE x1 2x PCIE x2, 2x M.2, 4x SATA3, 1x VGA 1x HDMI 1x DP, mATX

Specificație: Placa de bază MSI B550M PRO-VDH AM4

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
Component for	PC
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x1 (Gen 3.x) slots	2
Audio output channels	7.1 channels
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
Number of M.2 (M) slots	2
Processor socket	Socket AM4
Motherboard chipset	AMD B550
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Maximum resolution	4096 x 2160 pixels
Drivers included	Yes
Model Chipset	B550
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket AM4
Tip Memorie	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Compatible processor series	AMD Ryzen 3000 Series
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Maximum number of SMP processors	1
12V power connector	Yes
Serial port headers	1
PS/2 ports quantity	0
Supported memory clock speeds	1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
Supported storage drive interfaces	SATA III
RAID levels	0, 1, 10
Chassis intrusion connector	Yes
eSATA ports quantity	0
Firewire (IEEE 1394) ports	0
Number of chassis fan connectors	3
LAN controller	Realtek 8111HN
Harmonized System (HS) code	84733020
Cables included	SATA
Width	244 mm
Depth	244 mm
Height	65 mm
Weight	1 kg
Producator	MSI
Garantie	36
