Name: Placa de bază Gigabyte Z890 AORUS ULTRA LGA1851 - A.W.P.S Store
Brand: GIGABYTE
SKU: Z890I AORUS ULTRA
Price: 2175.03 RON
Availability: InStock

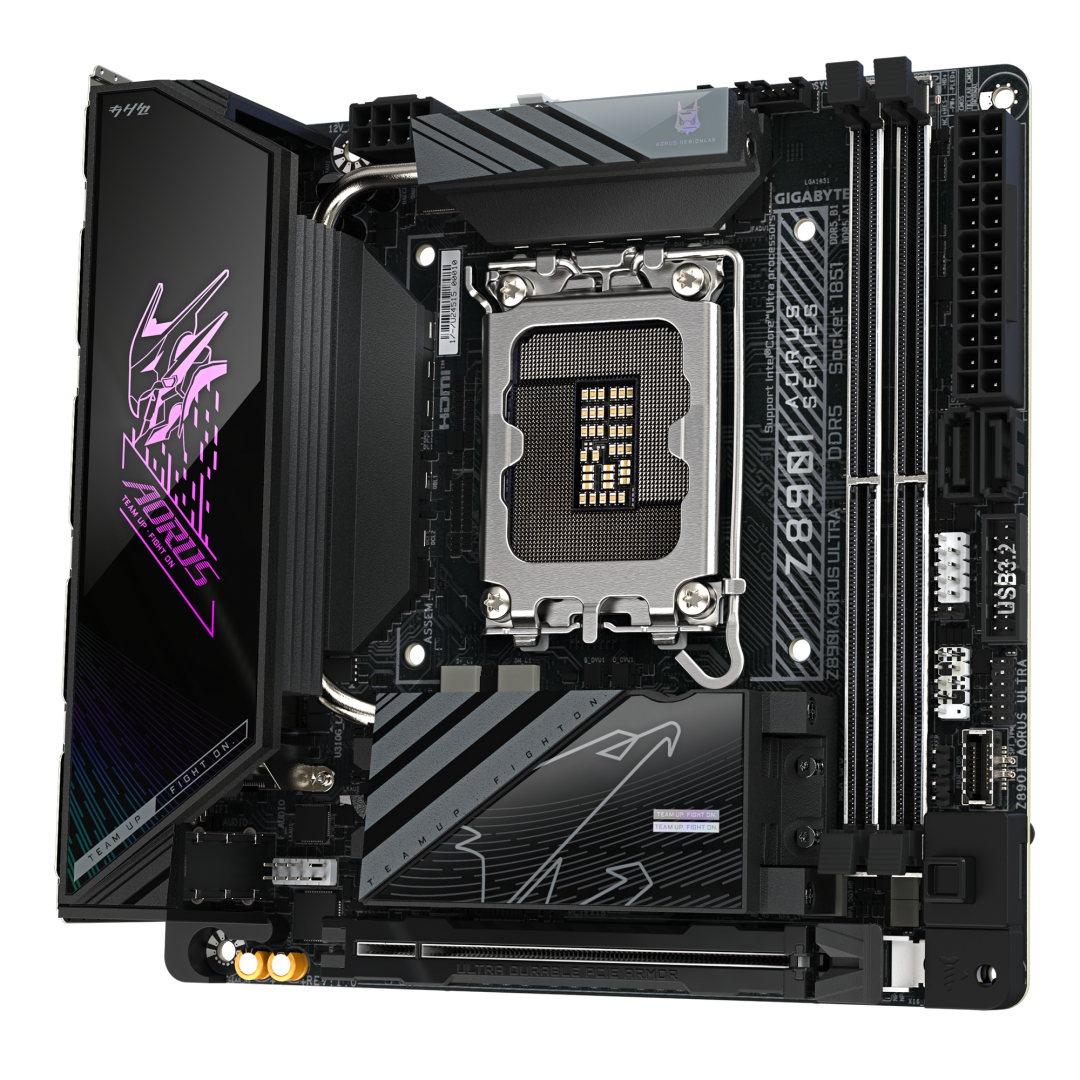

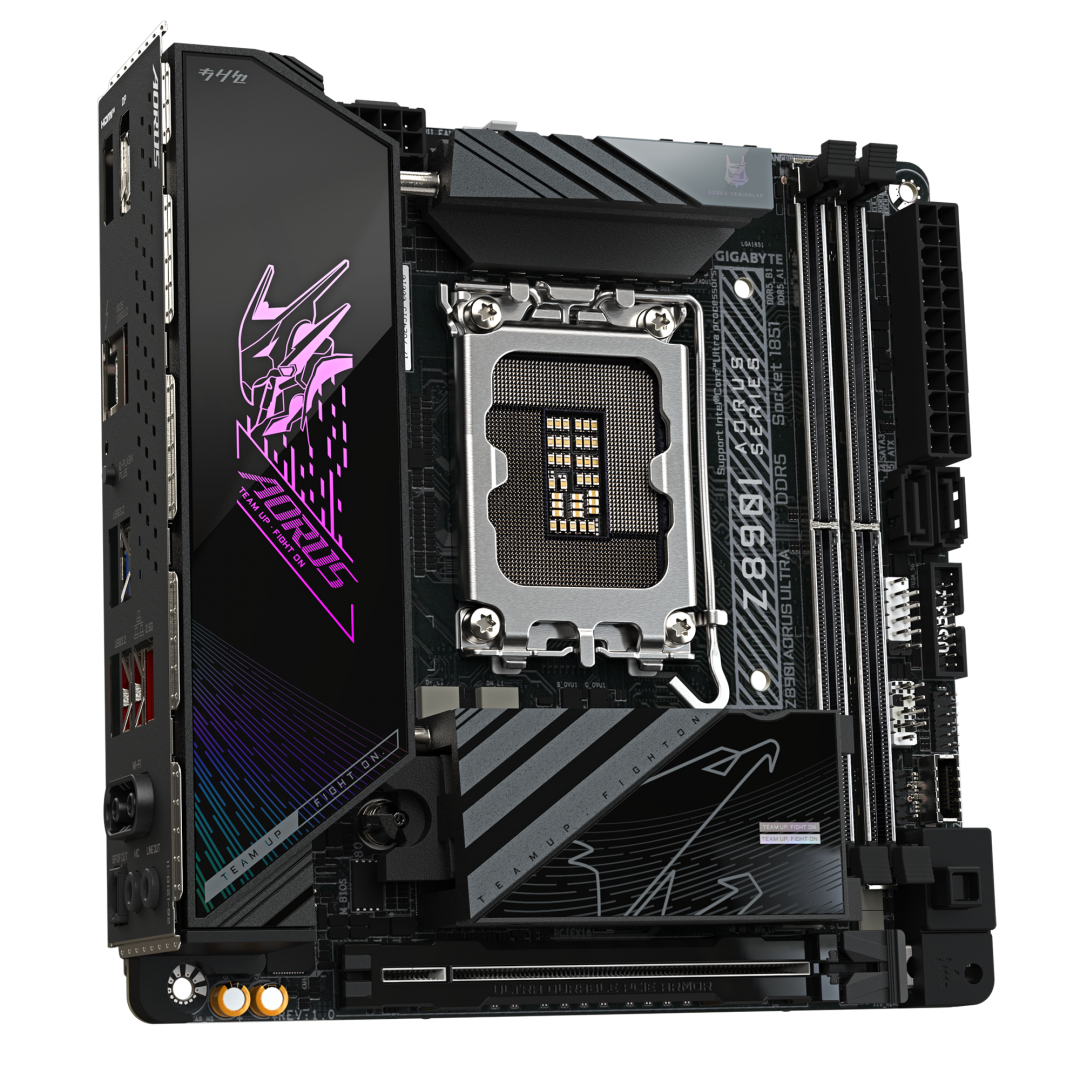

Placa de bază Gigabyte Z890 AORUS ULTRA LGA1851

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza GIGABYTE Z890 AORUS ULTRA LGA1851, 2x DDR5, 1x Intel Thunderbolt 1x DP 1x HDMI, 1x PCIE x16, 2x M.2, 2x SATA III, Mini-ITX

Specificație: Placa de bază Gigabyte Z890 AORUS ULTRA LGA1851

PCI	0
Serial-or-Paralel	Yes/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Number of storage drives supported	2
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Audio output channels	7.1 channels
Number of SATA III connectors	2
PCI Express x16 slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
Total number of SATA connectors	2
S/PDIF out port	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
DirectX version	12.0
Model Chipset	Z890
Gaming	Nu
Format:	Mini-ITX
Soclu Procesor	Socket 1851
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Da
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset family	Intel
Windows operating systems supported	Windows 11 x64
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
12V power connector	Yes
Clear CMOS button	Yes
ECC сompatibility	Non-ECC
Compatible processor series	Intel Core Ultra (Series 2)
Motherboard chipset	Intel Z890
USB 2.0 connectors	1
PC health monitoring	Fan, Temperature, Voltage
Maximum internal memory supported by processor	256 GB
Thunderbolt ports quantity	1
Supported memory clock speeds	8800 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Motherboard form factor	mini ITX
WLAN controller model	Intel Wi-Fi 7 BE202
Microphone in	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Height	35 mm
Country of origin	China
Width	170 mm
Depth	170 mm
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	265 mm
Package depth	235 mm
Package height	97 mm
Package weight	1.64 kg
Weight	1.42 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
