Name: Placa de bază Gigabyte X870I AORUS PRO ICE AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: X870I AORUS PRO ICE
Price: 1615.67 RON
Availability: InStock

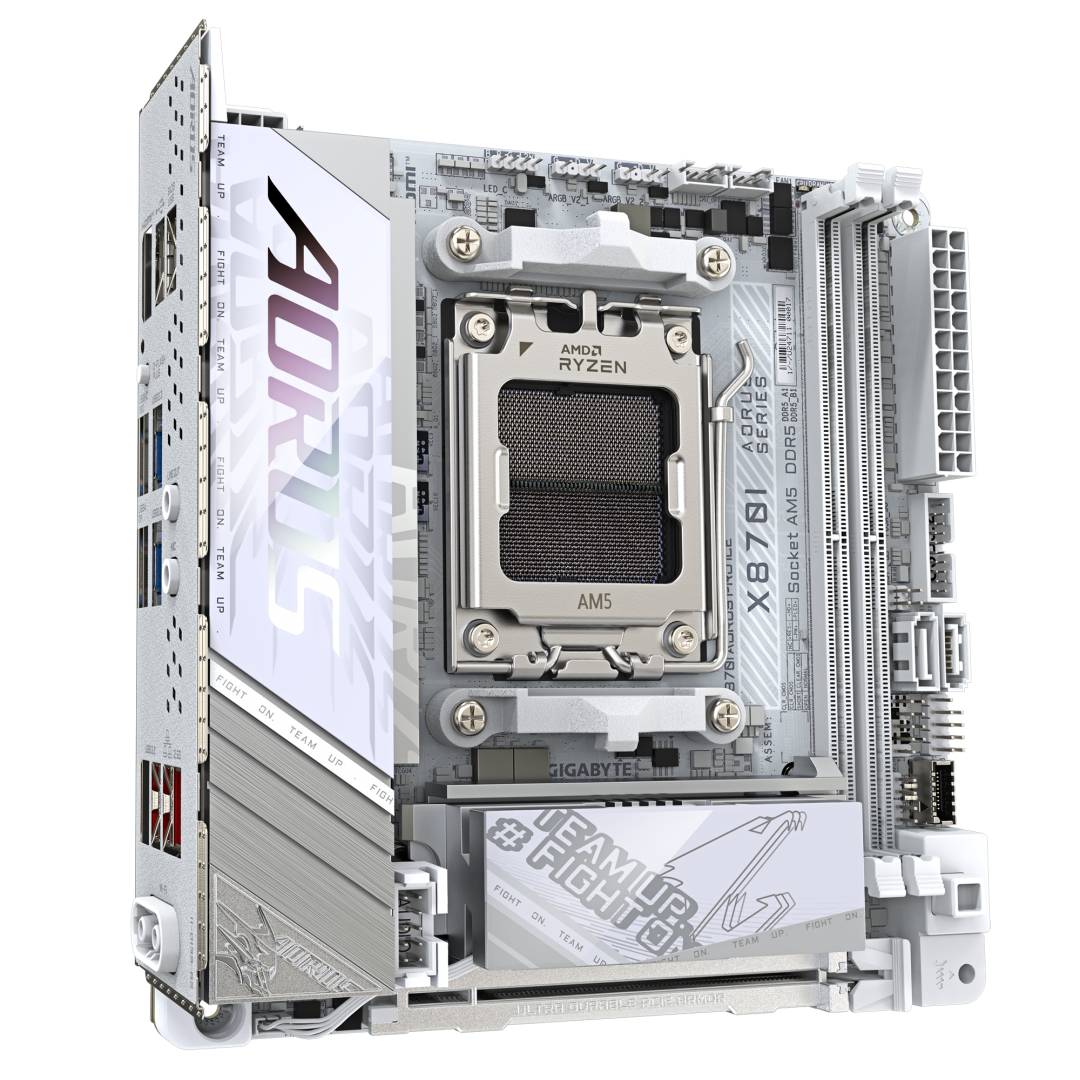

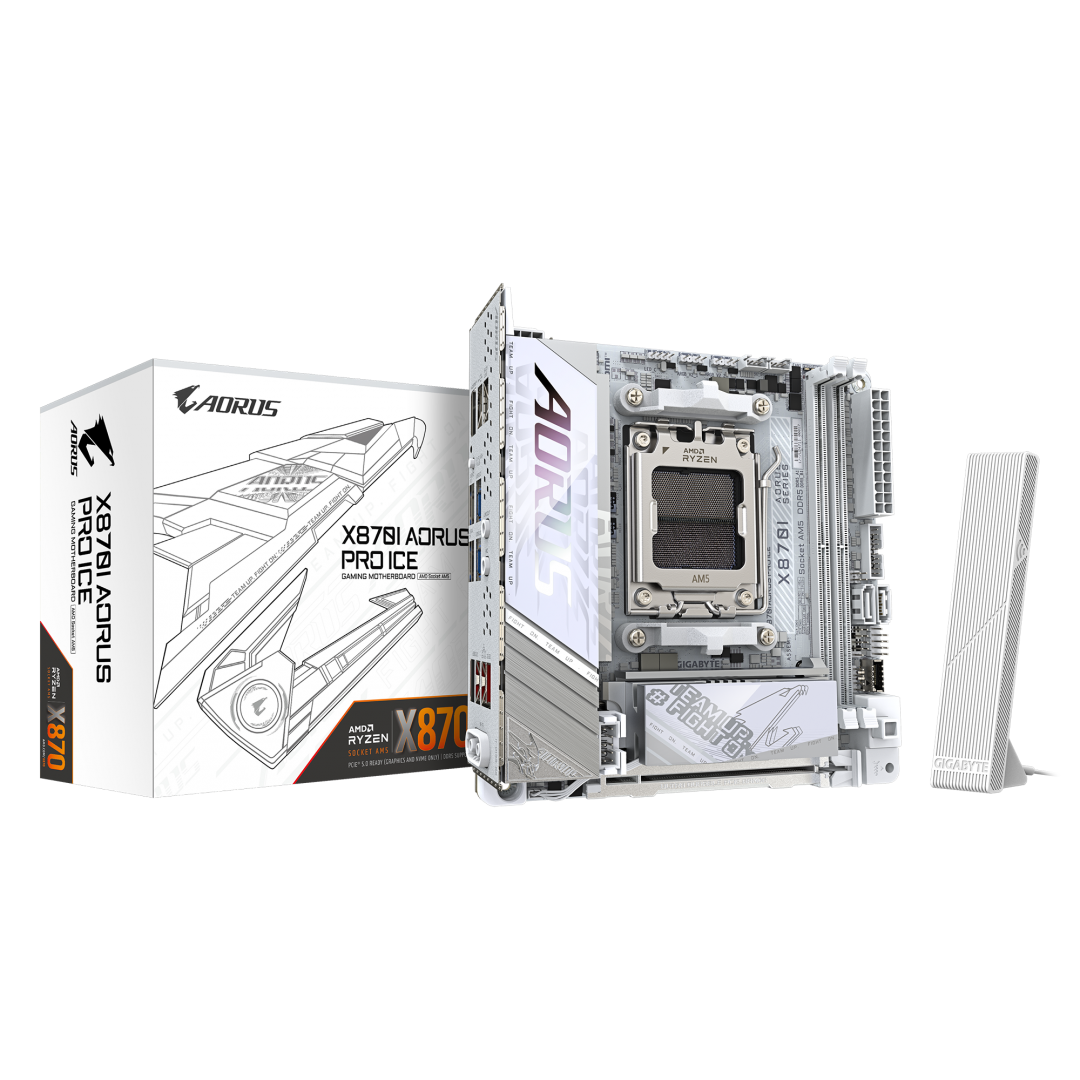

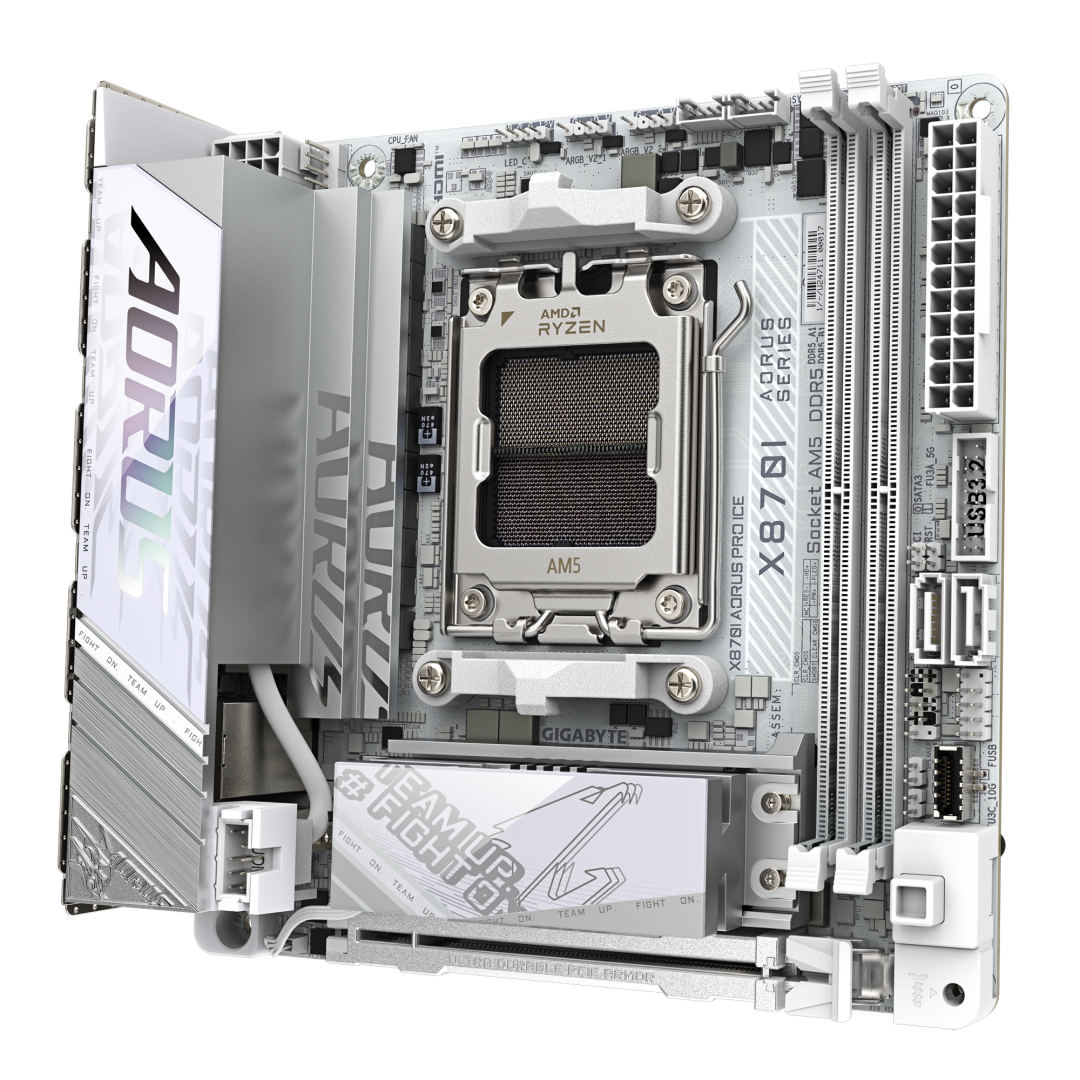

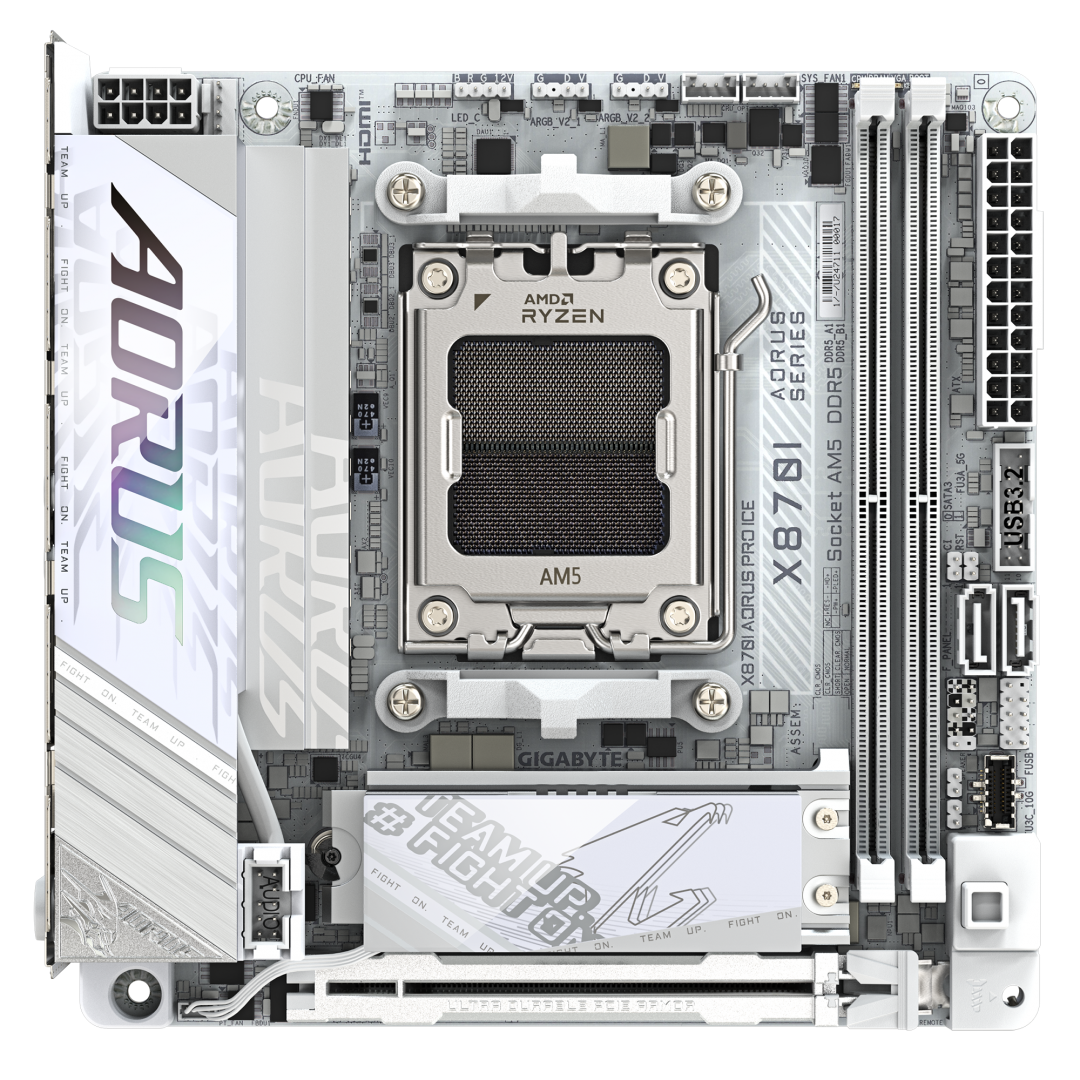

Placa de bază Gigabyte X870I AORUS PRO ICE AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza GIGABYTE X870I AORUS PRO ICE AM5, 2x DDR5, 1x USB4 1x HDMI, 1x PCIE x16, 2x M.2, 2x SATA 6GB/s, mini-ITX

Specificație: Placa de bază Gigabyte X870I AORUS PRO ICE AM5

PCI	0
Serial-or-Paralel	Yes/No
Video-Connection	HDMI
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
RAID levels	0, 1
DisplayPort version	1.4
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Audio output channels	7.1 channels
Number of SATA III connectors	2
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
USB4 Gen 2x2 ports quantity	1
HDCP	Yes
Screws included	Yes
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Model Chipset	X670
Gaming	Nu
Format:	Mini-ITX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	N/A
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory per slot	64 GB
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Number of CPU fan connectors	2
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
WLAN controller model	Realtek RTL8922AE
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 11 x64
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g

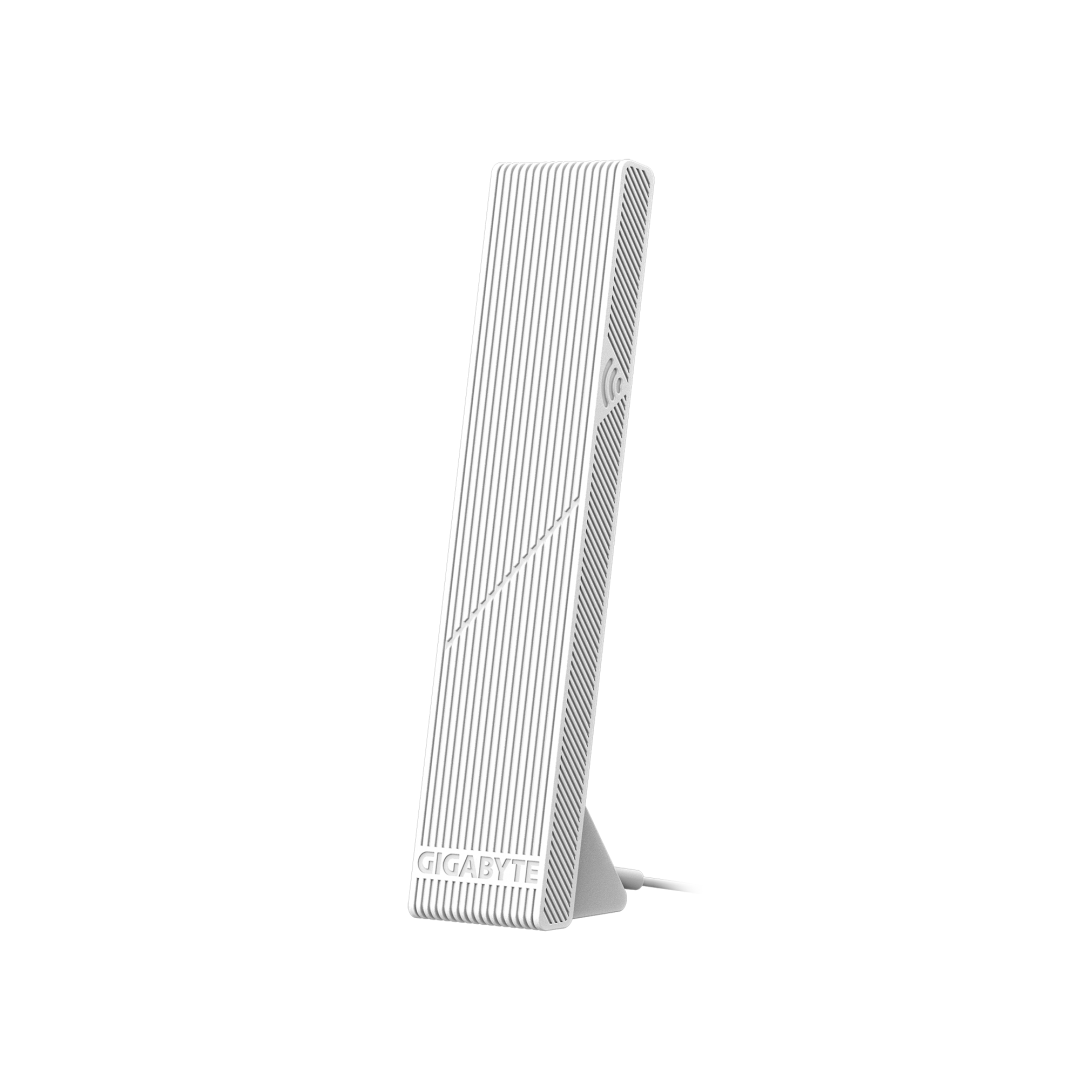

Antenna included	Yes
ECC сompatibility	Non-ECC
Audio Chip	Realtek ALC4080
Chassis intrusion connector	Yes
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
USB 2.0 connectors	1
Number of chassis fan connectors	1
Number of EPS power connectors (8-pin)	1
Motherboard chipset	AMD X870
Number of water pump connectors	1
Number of storage drives supported	4
Number of RGB LED pin headers	3
Number of HDDs supported	2
Supported memory clock speeds	8400 MHz
Motherboard form factor	Micro ITX
Headphone outputs	1
Batteries included	Yes
Bluetooth version	5.4
Product colour	White
Height	35 mm
Country of origin	Taiwan
Width	170 mm
Package height	95 mm
Weight	1.2 kg
Depth	170 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Products per shipping (inner) case	1 pc(s)
Package width	235 mm
Package depth	227 mm
Package weight	12.8 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
