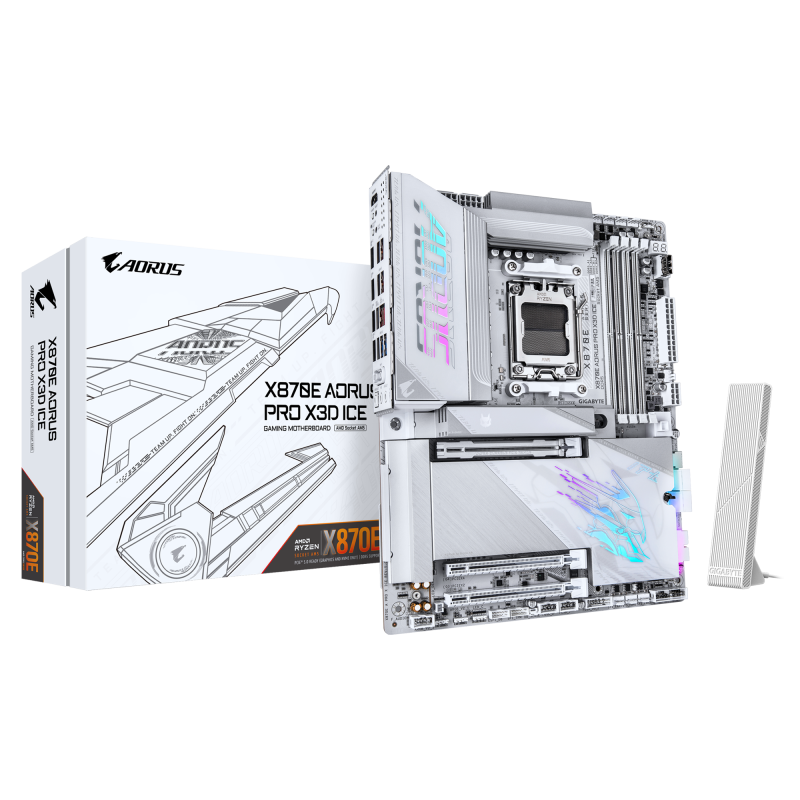

Name: Placa de Bază GIGABYTE X870E A Pro X Ice AM5
Brand: GIGABYTE
SKU: X870E A PRO X ICE
Price: 2211.93 RON
Availability: InStock

Placa de Bază GIGABYTE X870E A Pro X Ice AM5

Placă de bază GIGABYTE X870E A PRO X ICE, ATX, socket AM5, chipset AMD X870E, suport DDR5 192 GB, PCIe 5.0 x16, sloturi M.2 PCIe Gen5, WiFi 7 și LAN 2.5 Gbps.

Specificație: Placa de Bază GIGABYTE X870E A Pro X Ice AM5

PCI	0
Serial-or-Paralel	Yes/No
Video-Connection	HDMI
Wi-FI	Yes
USB3	4-8
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Processor manufacturer	AMD
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Cooling type	Passive
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
S/PDIF out port	Yes
HDCP	Yes
Screws included	Yes
Digital audio optical out	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Model Chipset	X870E
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	4
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
TPM connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	4
WiFi-AP antenna jack	2
Motherboard form factor	ATX
Windows operating systems supported	Windows 11 x64
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Maximum resolution	4096 x 2304 pixels
USB 3.2 Gen 2x2 connectors	1
Clear CMOS button	Yes
ECC сompatibility	Non-ECC
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of storage drives supported	8
Number of M.2 (M) slots	4
Number of chassis fan connectors	6
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
4th M.2 highest PCI Express generation	4.0
Number of water pump connectors	3
USB4 Gen 2x2 ports quantity	2
2nd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	22110
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Audio Chip	Realtek ALC1220-VB
Motherboard chipset	AMD X870E
LAN controller	Realtek RTL8126
BIOS memory size	512 Mbit
WLAN controller model	Qualcomm QCNCM865
Number of temperature sensor headers	2
MB-Format	ATX
PCI-Ex1	0
PCI-Ex16	3
RAM-Slots	4
USB Type-C	N/A
MB-Socket	AM5
Number of noise detection headers	1
Headphone outputs	1
Bluetooth	Yes
Batteries included	Yes
Bluetooth version	5.4
Ethernet LAN (RJ-45) ports	1
Product colour	White
Height	35 mm
Width	305 mm
Depth	244 mm
Country of origin	Taiwan
Package width	340 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Products per shipping (inner) case	1 pc(s)
Package height	92 mm
Package weight	4.3 kg
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Package depth	310 mm
Weight	3.74 kg
Supported memory clock speeds	9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
PC health monitoring	CPU, Fan, Temperature, Voltage, Water cooling
Producator	GIGABYTE
Garantie	36
