Name: Placa de Bază GIGABYTE X870 AORUS Tachyon Ice AM5
Brand: GIGABYTE
SKU: X870 A TACHYON ICE
Price: 3730.24 RON
Availability: OutOfStock

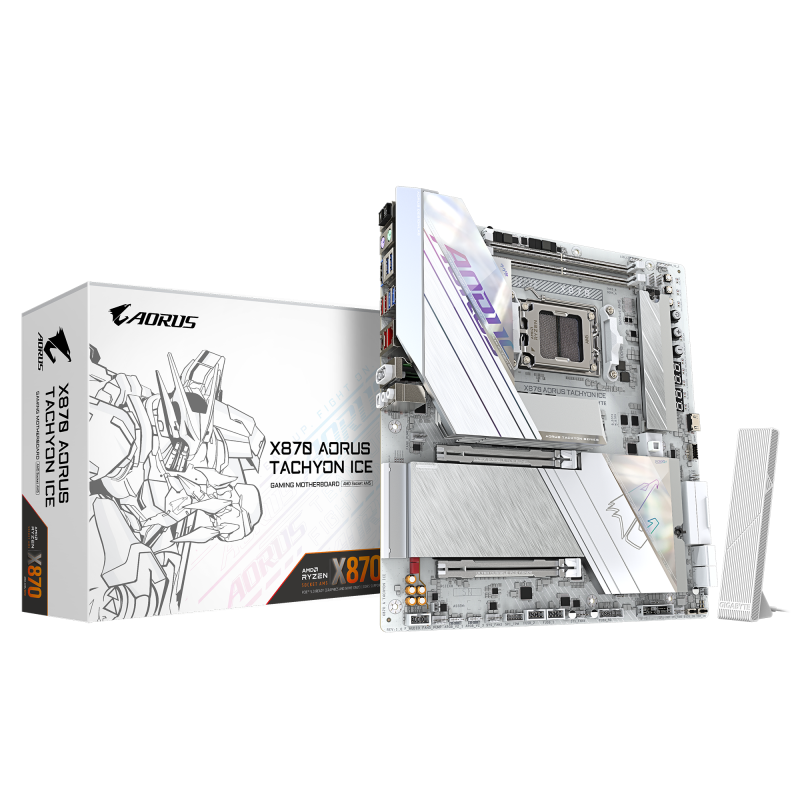

Placa de Bază GIGABYTE X870 AORUS Tachyon Ice AM5

Placa de Baza GIGABYTE X870 AORUS ACHYON ICE AM5, 2x DDR5, 1x USB4, 1x HDMI, 1x Front HDMI, 1x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

Specificație: Placa de Bază GIGABYTE X870 AORUS Tachyon Ice AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	Yes
USB3	4-8
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 2.0 ports quantity	0
USB4 Gen 3x2 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
Number of SATA III connectors	2
Line-in	Yes
Number of memory slots	2
Supported storage drive types	HDD & SSD
Cooling type	Passive
S/PDIF out port	Yes
HDCP	Yes
Screws included	Yes
Digital audio optical out	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Model Chipset	X870
Gaming	Da
Format:	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	2
Memorie maxima	128 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
Number of storage drives supported	7
RAID levels	0, 1, 5, 10
Front panel connector	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
TPM connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	4
WiFi-AP antenna jack	2
WLAN controller model	Realtek RTL8922AE
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 11 x64
Number of M.2 (M) slots	3
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
USB 3.2 Gen 2x2 connectors	1
12V power connector	Yes
Number of chassis fan connectors	6
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
PCI Express x16 (Gen 5.x) slots	2
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Number of water pump connectors	3
Motherboard chipset	AMD X870
PS/2 ports quantity	2
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Motherboard form factor	Extended ATX
Audio Chip	Realtek ALC1220-VB
LAN controller	Realtek RTL8126
BIOS memory size	512 Mbit
Number of temperature sensor headers	2
MB-Format	ATX
PCI-Ex1	0
RAM-Slots	4
USB Type-C	N/A
MB-Socket	AM5
Number of noise detection headers	1
Bundled software	Norton® Internet Security (OEM version)
Supported memory clock speeds	9600 MHz
Headphone outputs	1
Bluetooth	Yes
Batteries included	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Ethernet LAN (RJ-45) ports	1
Product colour	White
Height	35 mm
Width	305 mm
Country of origin	Taiwan
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Products per shipping (inner) case	1 pc(s)
Package width	400 mm
Package height	430 mm
Package depth	33.5 mm
Weight	3.32 kg
Depth	275 mm
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Package weight	3.91 kg
Producator	GIGABYTE
Garantie	36
