Name: Placa de bază Gigabyte X870 AORUS ELITE WIFI7 AM5 - A.W.P.S Store
Brand: GIGABYTE
SKU: X870 A ELITE WIFI7
Price: 1438.48 RON
Availability: InStock

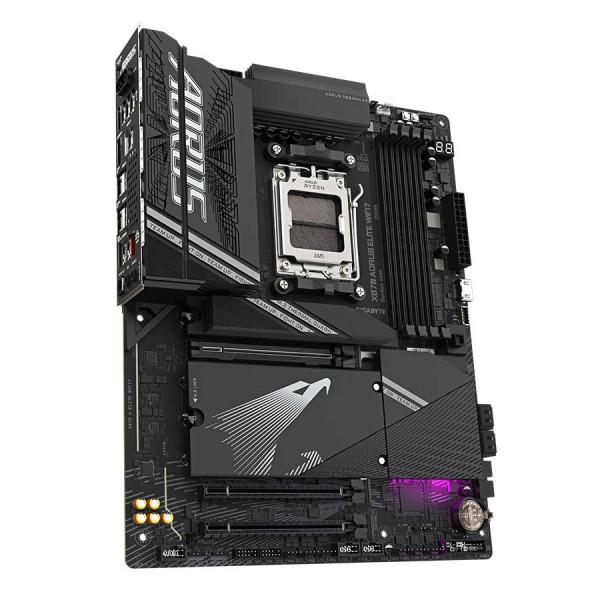

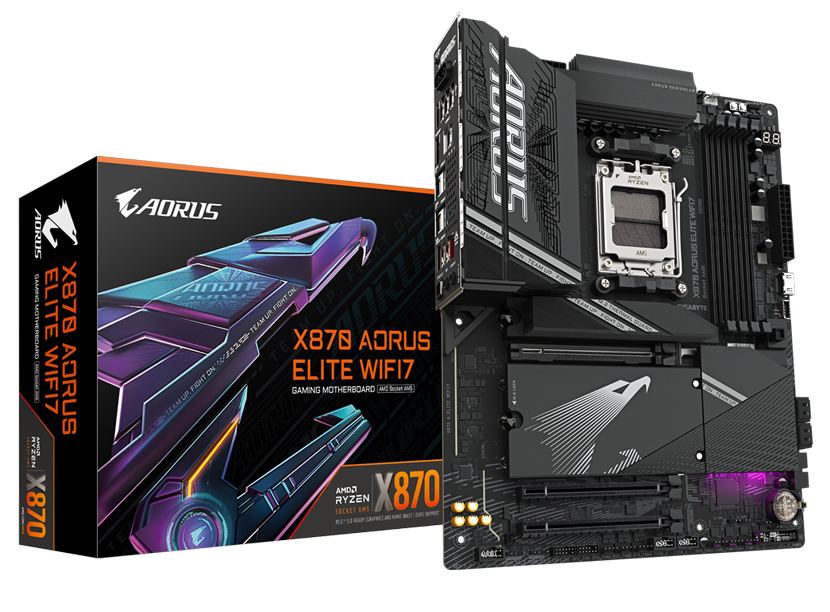

Placa de bază Gigabyte X870 AORUS ELITE WIFI7 AM5

Adăugați preferateAdăugat la lista de preferințeEliminat din lista de dorințe 0

Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 AM5, 4x DDR5, 1x HDMI 1x front HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX

Specificație: Placa de bază Gigabyte X870 AORUS ELITE WIFI7 AM5

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB4 Gen 3x2 ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
DisplayPorts quantity	2
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
On-board graphics card	No
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
USB 3.2 Gen 2x2 Type-C ports quantity	0
Screws included	Yes
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Model Chipset	X870
Gaming	Nu
Format:	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	4
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
mSATA ports quantity	0
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
Front panel connector	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
TPM connector	Yes
RGB LED pin header	Yes
Number of RGB LED pin headers	4
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
Motherboard form factor	ATX
Windows operating systems supported	Windows 11 x64
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
3rd M.2 largest key size	22110
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
USB 3.2 Gen 2x2 connectors	1
Clear CMOS button	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	8
Number of M.2 (M) slots	4
PS/2 ports quantity	0
PCI Express x1 (Gen 3.x) slots	0
PCI Express x1 (Gen 4.x) slots	0
PCI Express x4 (Gen 4.x) slots	0
RAID levels	0, 1, 10
Number of chassis fan connectors	6
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
4th M.2 highest PCI Express generation	4.0
PC health monitoring	Fan, Temperature, Voltage
Maximum internal memory supported by processor	256 GB
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB
Number of water pump connectors	3
USB4 Gen 2x2 ports quantity	2
WLAN controller model	MediaTek MT7925
Motherboard chipset	AMD X870
Audio Chip	Realtek ALC1220
PCI Express x4 slots	2
PCI Express x8 (Gen 3.x) slots	0
PCI Express x8 (Gen 4.x) slots	0
PCI Express x8 (Gen 5.x) slots	0
2nd M.2 highest PCI Express generation	5.0
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	22110
PCI Express x4 (Gen 3.x) slots	0
Microphone in	Yes
Headphone outputs	1
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Weight	2.4 kg
Height	35 mm
Width	305 mm
Depth	244 mm
Country of origin	China
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.74 kg
Bundled software	Norton® Internet Security (OEM version); LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
