Name: Placa de Bază GIGABYTE H610M K LGA1700
Brand: GIGABYTE
SKU: H610M K DDR4
Price: 347.87 RON
Availability: InStock

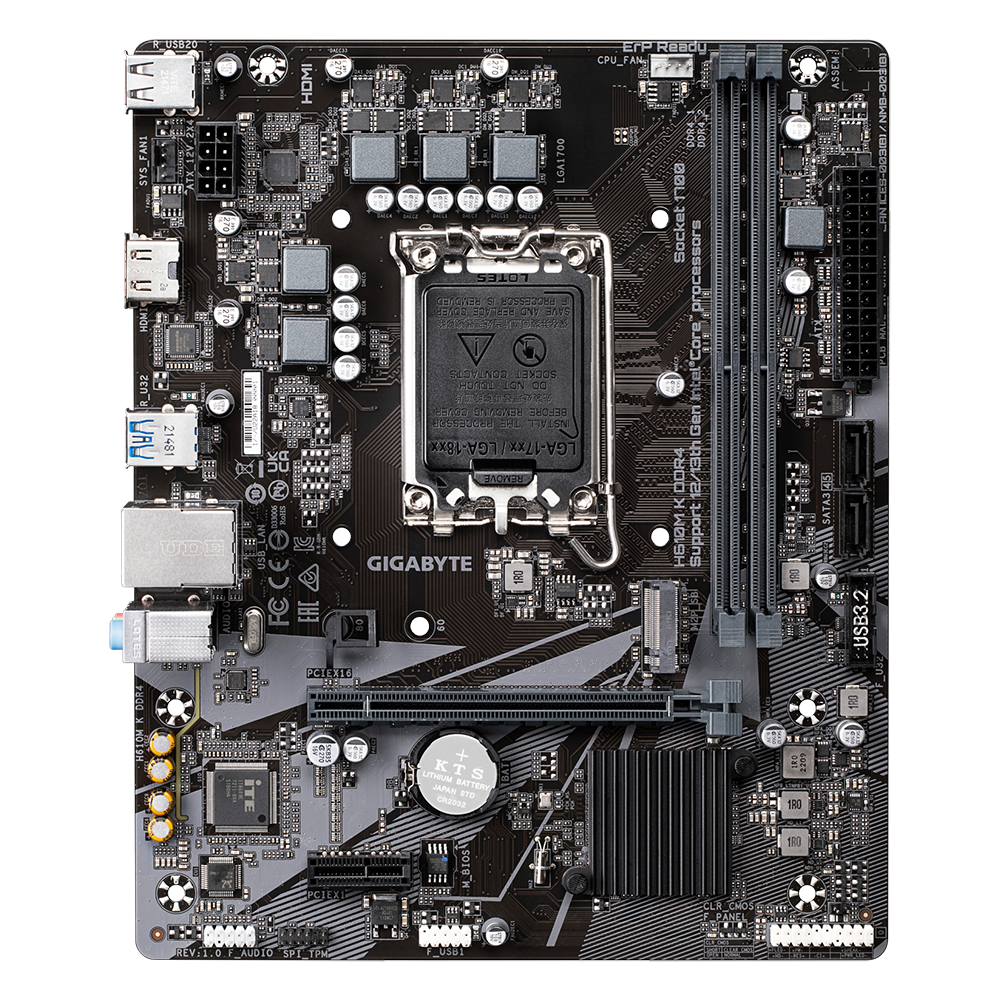

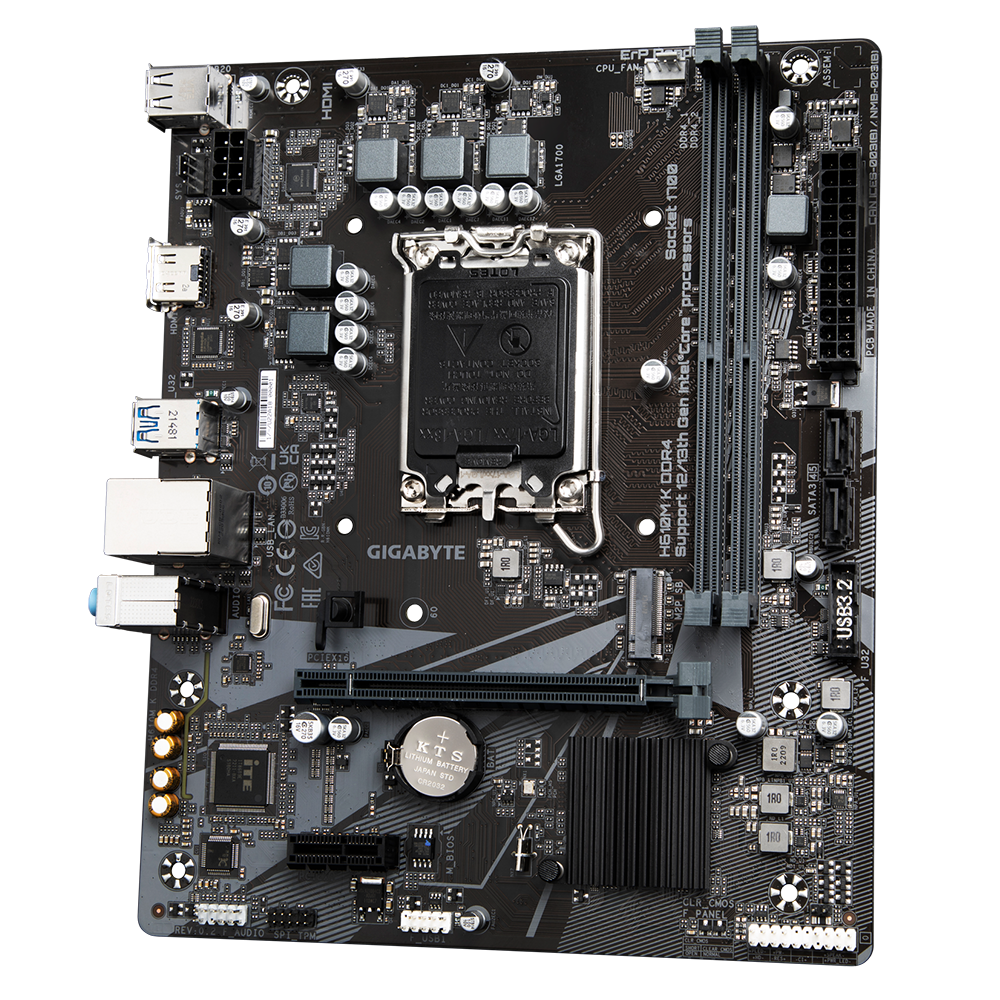

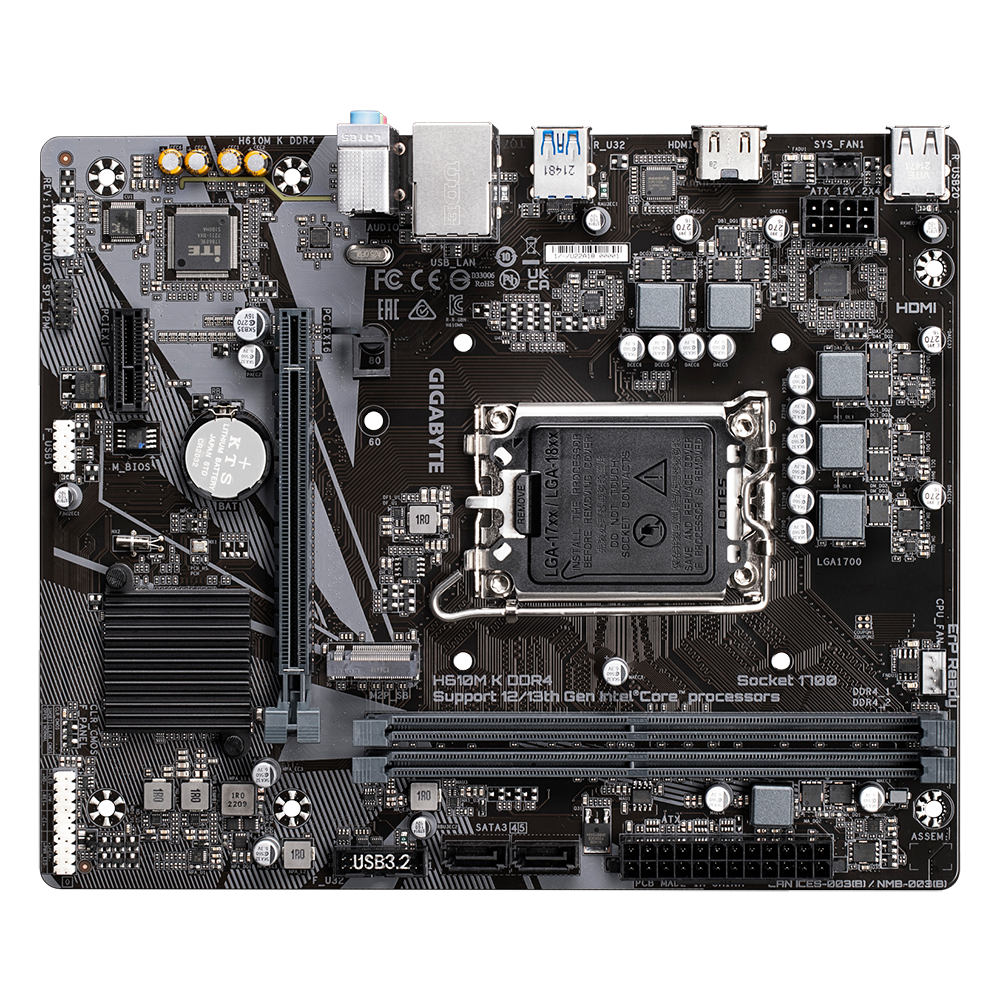

Placa de Bază GIGABYTE H610M K LGA1700

Placa de baza Gigabyte H610M K LGA 1700, 2x DDR4, 1x HDMI, 1x PCIe x16, 1x PCI x1, 1x M.2, 2x SATA 6 Gb/s, 1 Gbps LAN, mATX

Specificație: Placa de Bază GIGABYTE H610M K LGA1700

PCI	0
Serial-or-Paralel	No/No
Video-Connection	VGA/DVI/HDMI/DP
Wi-FI	No
PCI-Ex1	1
PCI-Ex16	1
Onboard-CPU	No
Component for	PC
USB connector type	USB Type-A
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
Number of SATA III connectors	2
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Total number of SATA connectors	2
Number of M.2 (M) slots	1
HDCP	Yes
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	H610
Gaming	Nu
Format:	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie	DDR4
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 3.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Front panel connector	Yes
TPM connector	Yes
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Maximum number of SMP processors	1
12V power connector	Yes
Clear CMOS button	Yes
BIOS memory size	128 Mbit
USB 2.0 connectors	1
Number of chassis fan connectors	1
Supported memory clock speeds	3200 MHz
Audio connector	Yes
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Motherboard chipset	Intel H610 Express
Power fan connector	Yes
Number of HDDs supported	2
Number of EATX power connectors	1
Number of storage drives supported	3
Maximum RDIMM memory	64 GB
MB-Socket	1700
MB-Format	micro-ATX
RAM-Slots	2
USB3	2
Microphone in	Yes
Headphone outputs	1
Height	35 mm
Cables included	SATA
Country of origin	China
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Width	226 mm
Package weight	717 g
Depth	18.5 mm
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
